5-76 ADS TRITON+ Manual

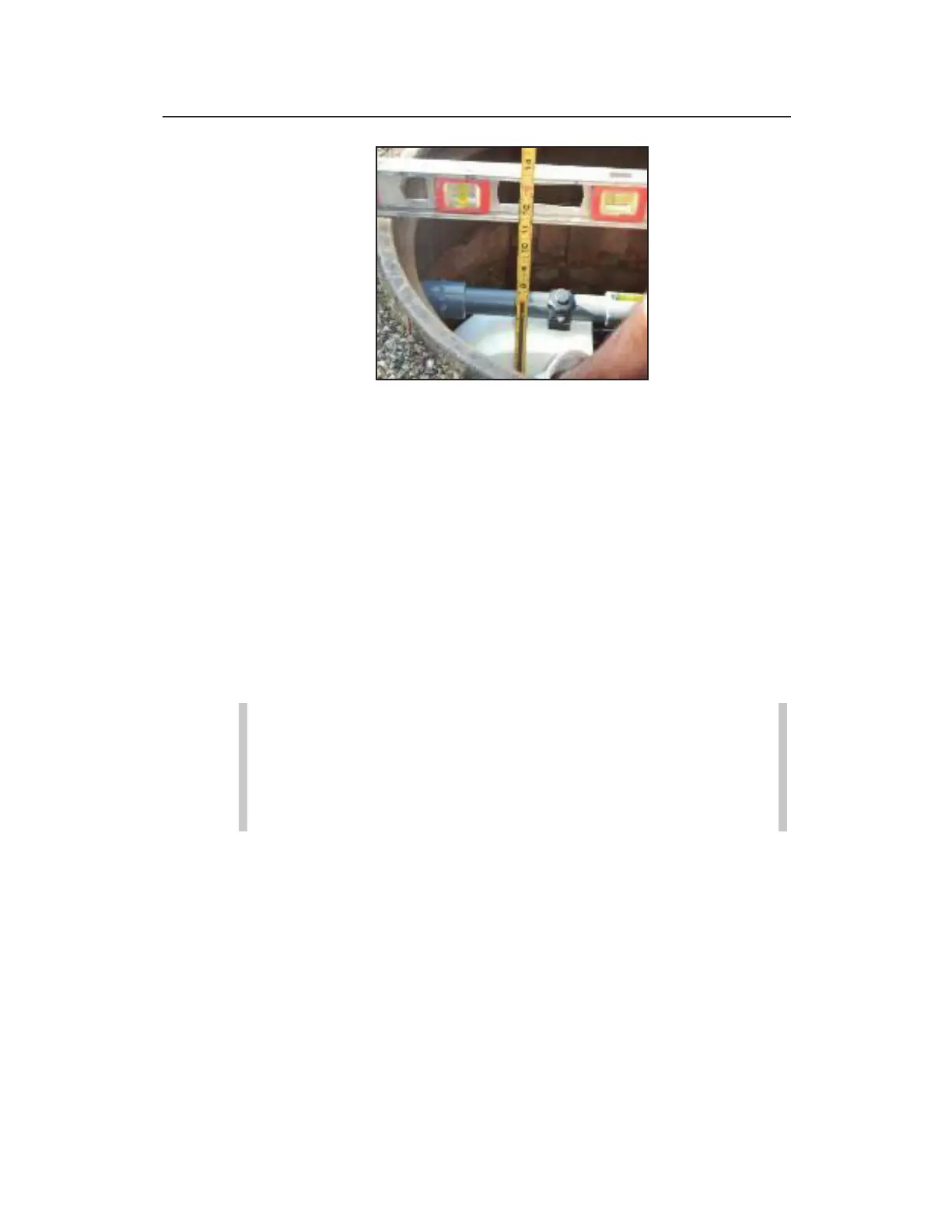

Recording physical offset at measurement intersection
Surcharge Mount (applies to the Ultrasonic
Depth and Surface Combo Sensors)
For a site that may experience surcharge conditions, mount the
Ultrasonic Depth Sensor or Surface Combo Sensor on the manhole
wall directly above the opening of the incoming pipe. This will
ensure the sensor measures the range above the flow surface at the
location the flow enters the manhole. This method of mounting the
sensor requires a special surcharge bracket (ADS p/n I40-0010) and
sliding adapter bracket (ADS p/n 8000-0299). Mount the sensor in
the following way:
Note: Handle the Ultrasonic Depth Sensor and the
Surface Combo Sensor with care. Do not expose the
sensors to extreme temperatures for an extended period of
time. Keep the sensor in its protective packaging until it is
time for installation.
