5-78 ADS TRITON+ Manual
8. Identify the three pre-drilled holes at the bottom of the bracket,
and spot drill the manhole wall through the middle hole with a
drill.
9. Rotate the bracket 90q, and drill and mount a ¼-inch x 2 ¼-
inch (M6 x 55-mm) anchor bolt.
10. Secure the bottom of the bracket with a washer and nut.
11. Slide the sliding adaptor bracket (ADS p/n 8000-0299) into the
mounting plate on the surcharge bracket.

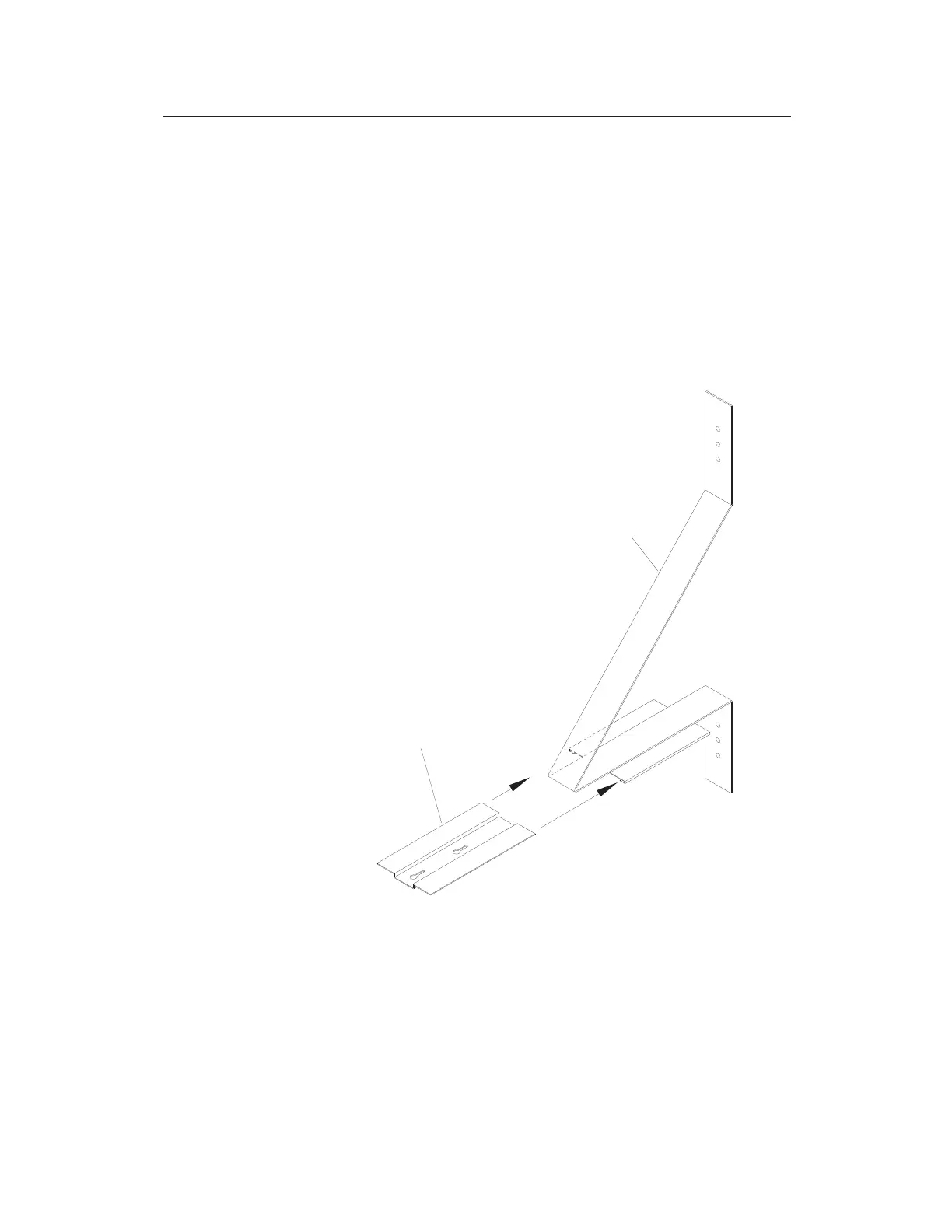

Inserting the Sliding Adapter Bracket into the sensor mounting plate on the
surcharge bracket
12. Attach the Ultrasonic Depth Sensor to the sliding adapter
bracket by inserting the studs on the back of the sensor into the
keyholes on the adapter bracket and sliding the sensor back
until it is fully in place. The sensor cable should be exiting
toward the manhole wall.
SLIDING ADAPTER BRACKET
ULTRASONIC DEPTH SENSOR
ANGLED SURCHARGE BRACKET
