6-24 ADS TRITON+ Manual
Loosen the screw corresponding to the earth ground ( )
terminal on the DC INPUT terminal connector on the
ExPAC. Insert one end of the 18-gauge ground wire into
the terminal, and tighten the screw.

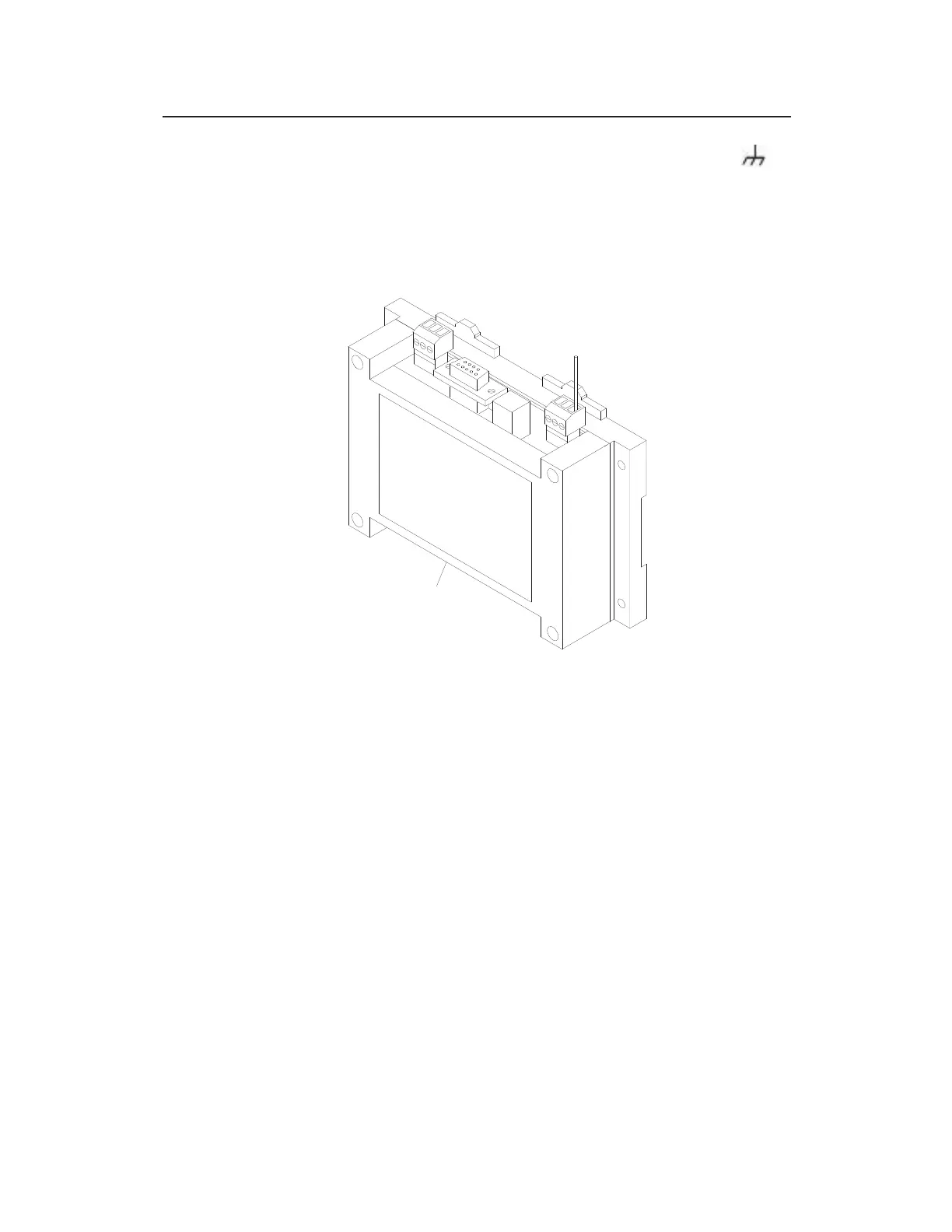

18-gauge ground wire inserted into DC input terminal on ExPAC
Loosen the terminal screw corresponding to the top
terminal of one of the new ground terminal blocks. Insert
the other end of the 18-gauge ground wire into the
terminal and tighten the screw.
ExPAC
DC INPUT TERMINALS
18-Gauge GND wire
To Next Page
