External Power 6-27

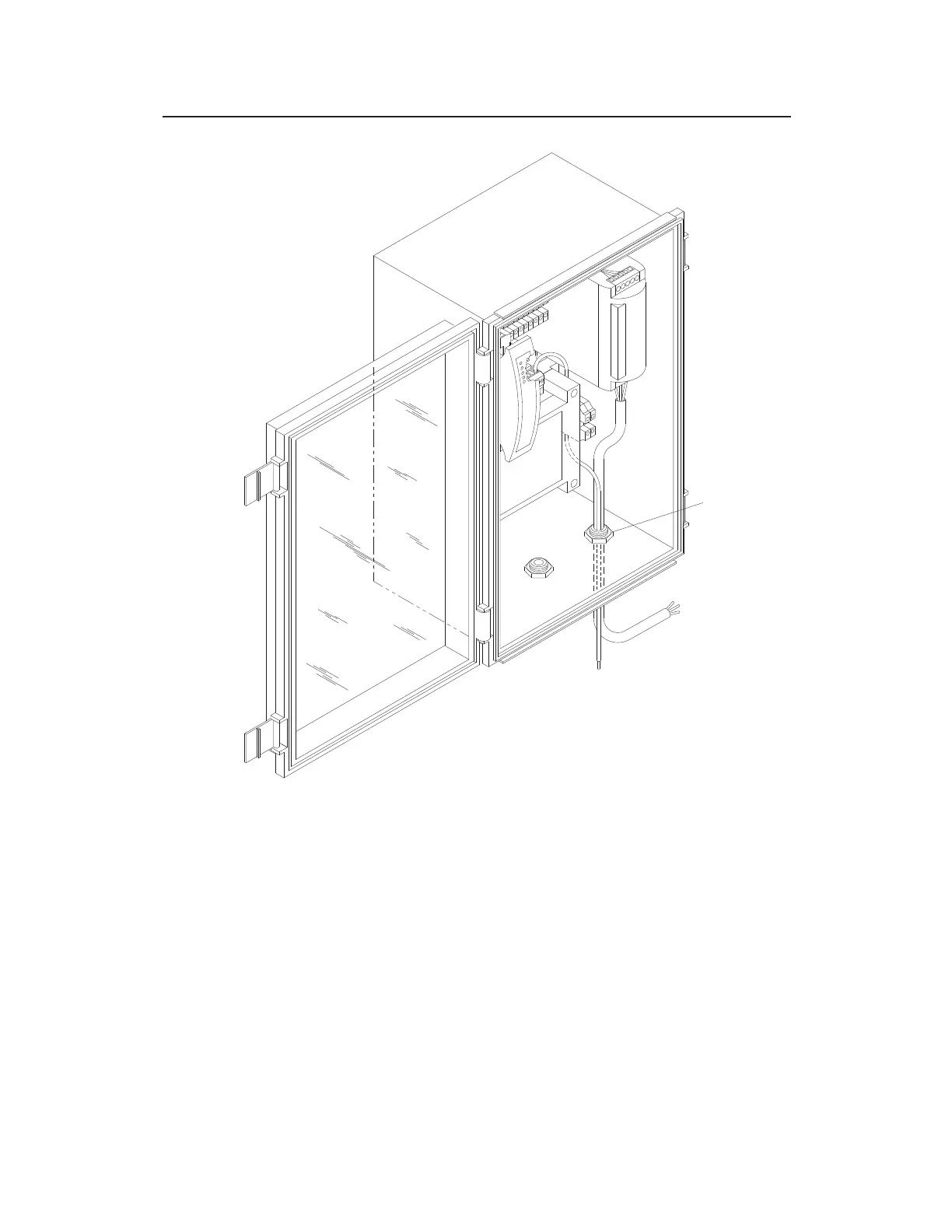

Ground wire running from ExPAC through cable gland in enclosure
4. Connect the free end of the 12-gauge ground wire to the earth
ground available at the location.
5. Run the free end (without the ring terminal) of the 10-gauge
ground wire (from the external power grounding kit, ADS p/n
8000-0434-xxx) up through the cable gland on the right (on the
XIO/XBUS) or up through an available cable route from the
outside of the existing enclosure. The cable gland or entry
entry route referenced is the same gland/route through which
the AC power cable and other ground wire are exiting the unit.
CABLE GLAND
GND WIRE
AC CABLE
