6-26 ADS TRITON+ Manual

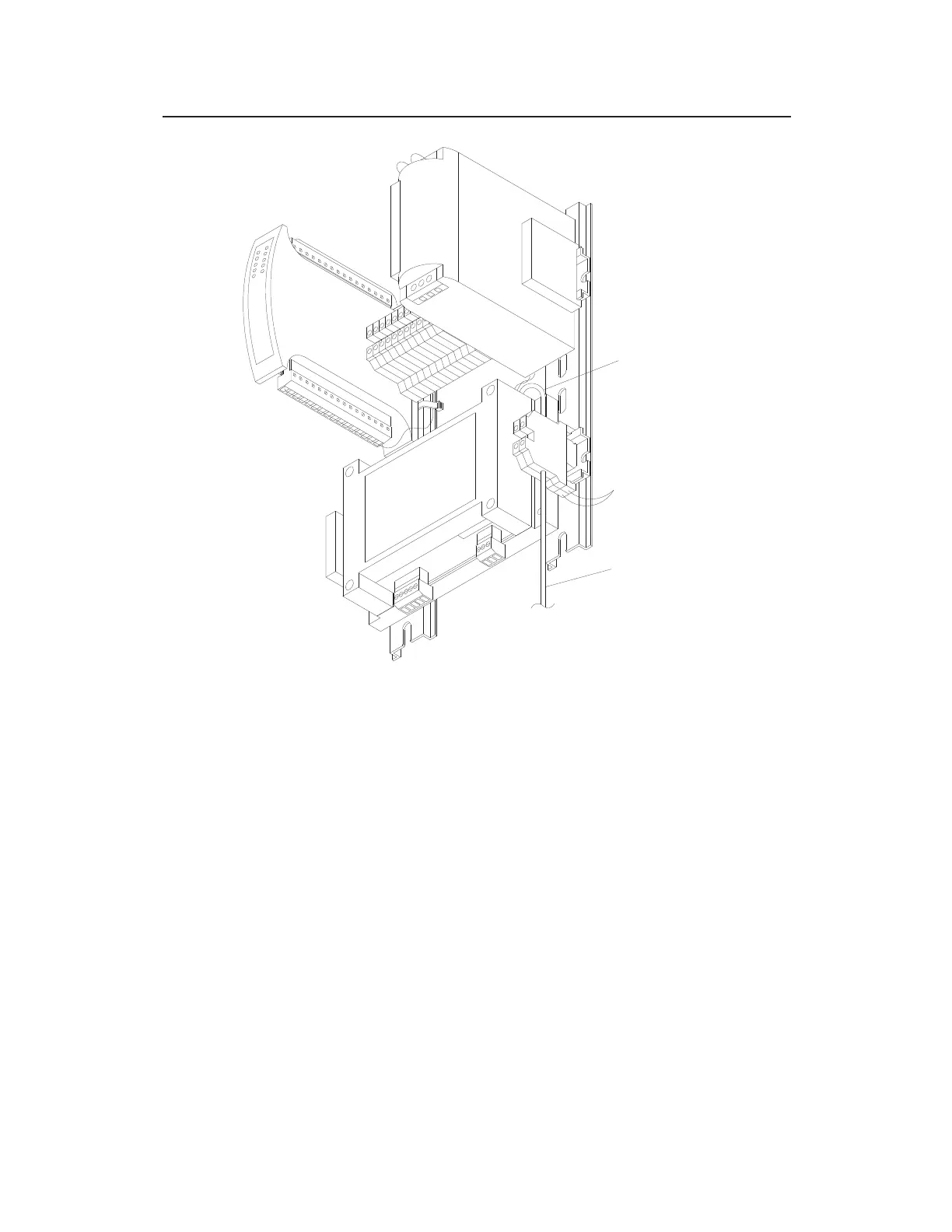

Securing the 12-gauge ground wire into one of the ground terminal blocks
3. Run the free end of the 12-gauge ground wire through the cable
gland on the right (for the XIO/XBUS) or through an available
cable exit route from the inside of the existing enclosure. The
cable gland referenced for the XIO/XBUS is the same gland
through which the AC power cable enters the unit.
DC Input Terminal
ExPAC
Ground Terminal Blocks
18-Gauge GND Wire
from
12-Gauge GND Wire
Earth Ground Outside Enclosure
to
