Analog and Digital I/O 9-17
2. Connect the digital output wires to the ADS XIO in the
following way:
Note: Make sure the power is turned off to the third-party
device and XIO.
Release the latches and open the clear, front door on the
XIO.
Run the wires up through the left cable gland on the XIO
into the enclosure. ADS recommends using 18-gauge
wiring. You may need to loosen the plastic nut on the
cable gland on the outside of the XIO to feed the wires
through.

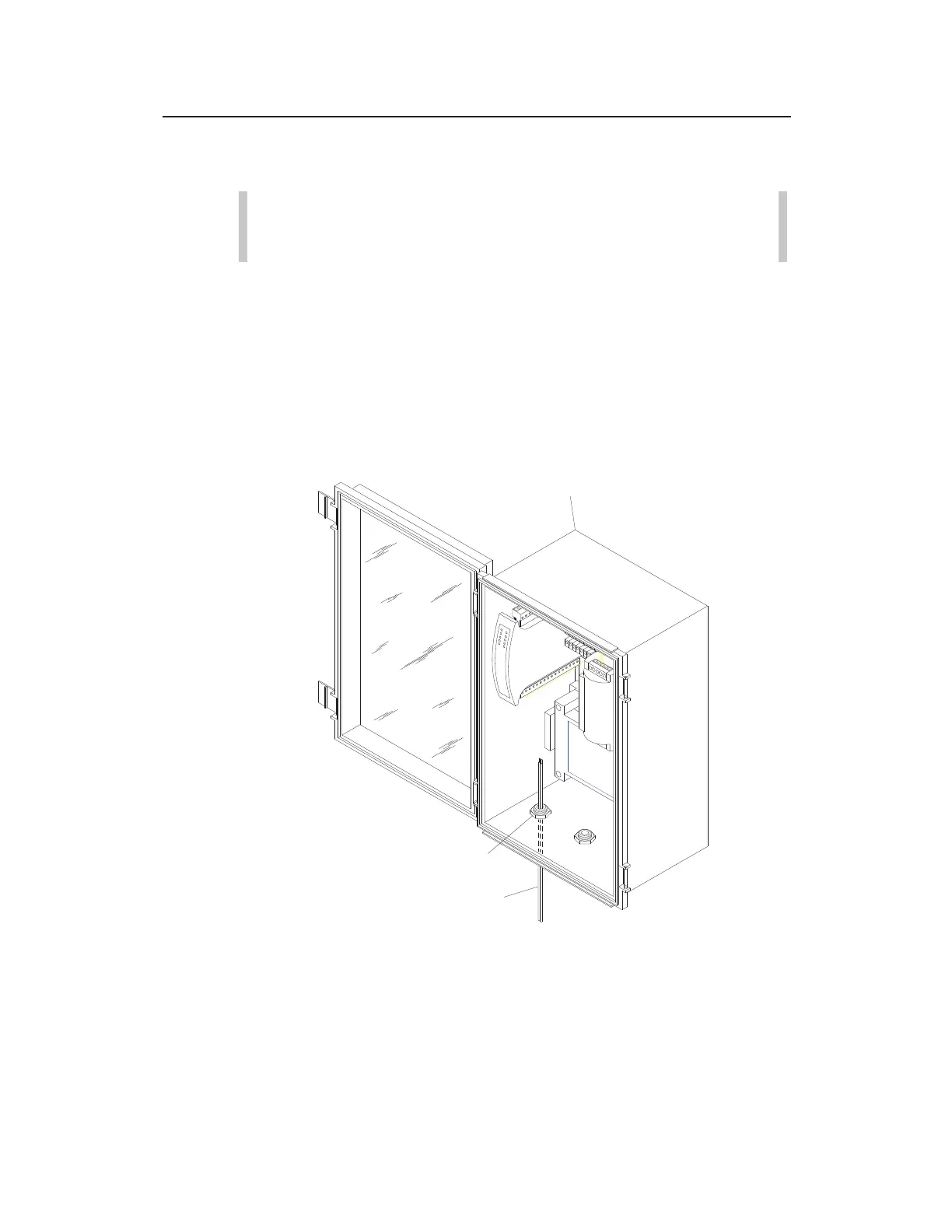

Feeding wires up through left cable gland in XIO
XIO MODULE
CABLE GLAND
2 WIRES
