11-16 ADS TRITON+ Manual
9. Lift off the retainer plug from the top of the battery pack, and
disconnect the PCB from the battery pack in the following
way:

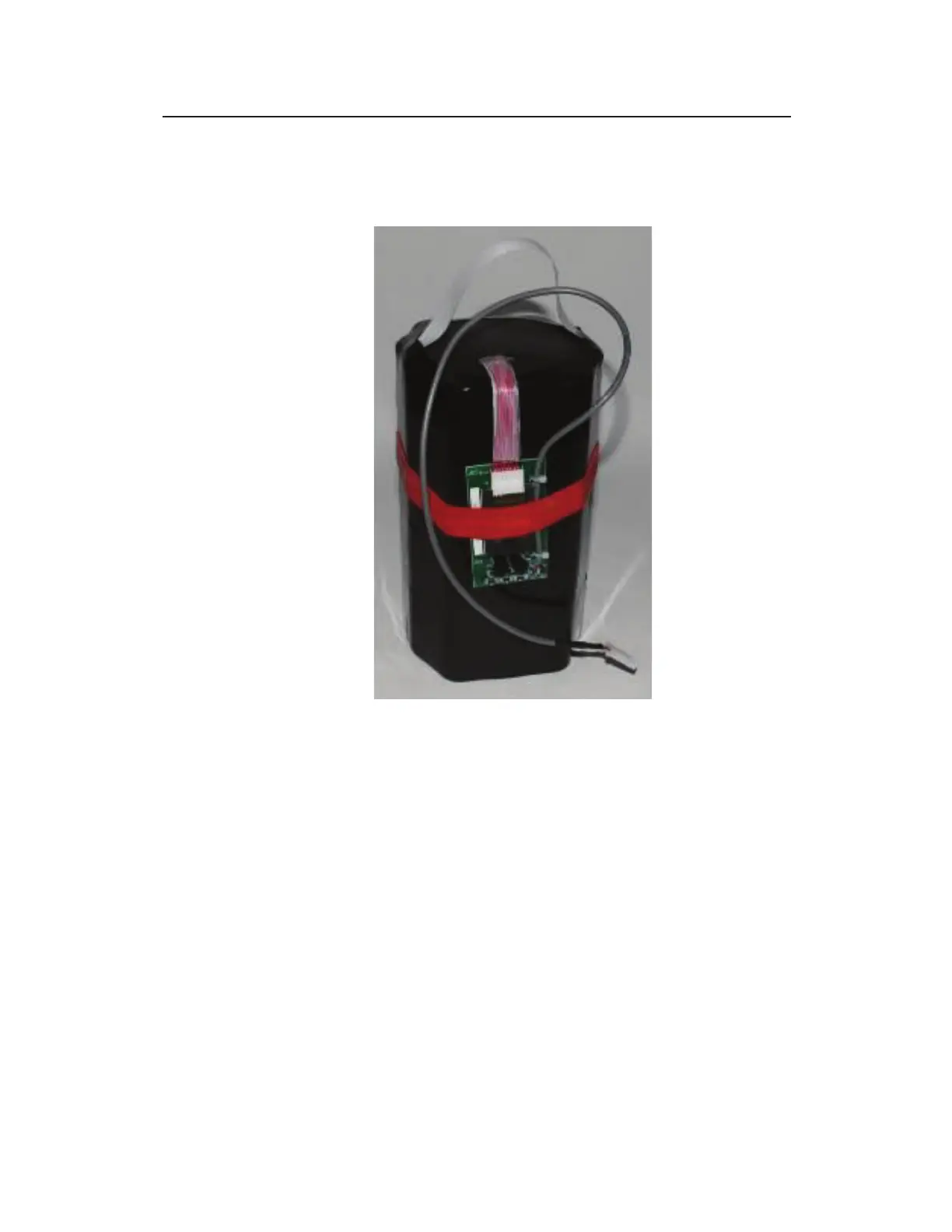

12-volt battery pack without retainer plug
Carefully move the thick red band securing the PCB to the
side of the battery pack off of the PCB.
Carefully disconnect the PCB from the battery pack at the
white plastic connector.
