Total Access 372 Small Business Unit ONT Installation and Maintenance Guide

8 61287722G1-5B

Electronics Module

TheElectronicsModule(seeFigure2)isnotdesignedtoberemovedaftertheinitialinstal‐

lation.

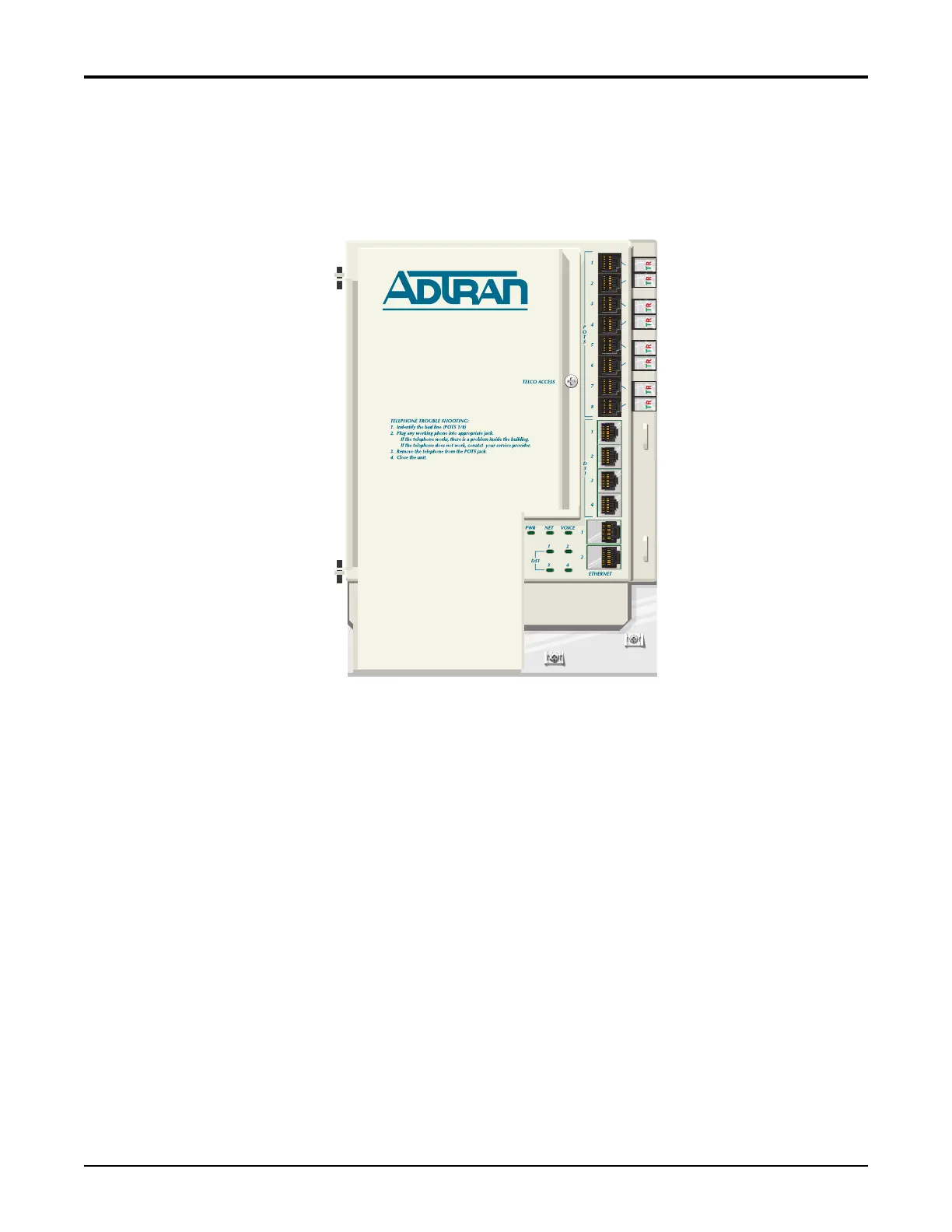

Figure 2. Electronics Module
