Installation
61287722G1-5B 31
Installed Indoor Electronics Module

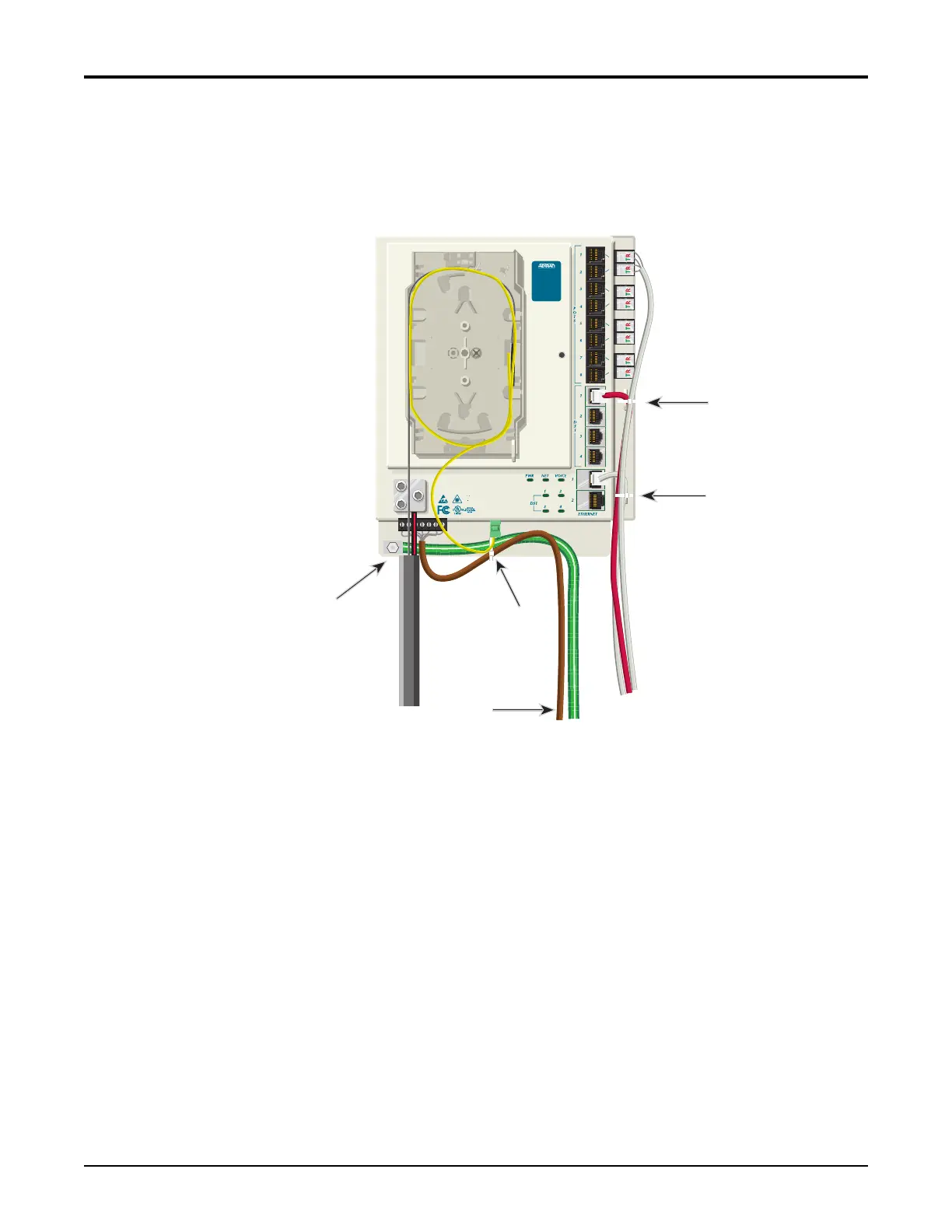

Figure17displaysthevariouswireroutinganddropswhentheElectronicsModuleis
completelyconfiguredandinstalled.
Figure 17. Completed Indoor Electronics Module
AllinstallationproceduresarethesamefortheIndoorunitastheyarefortheOutdoorunit.
However,becausethehousingisnotbeingutilizedforindoorapplications,wiresandcables
areroutedandsecureddifferently
.Refertothefi
gureabovewhenroutingandsecuringthese
wiresandcables.
Ground
Power
TELEPHONE TROUBLESHOOTING:
1. Identify the bad line (POTS 1-8).
2. Plug any working phone into
the appropriate jack.
If the telephone works, the unit
is functioning normally.
If the telephone does not work,
contact your service provider.
3. Remove the telephone from the
POTS jack.
TOTAL ACCESS 373E
1287723G1
Tie Wrap Point
Tie Wrap Point
Tie Wrap Point
