Advanced Energy FC-77 Series User Manual

6-38 Specifications and Reference Information 5700512-C
Advanced Energy
®
Dimensions for High Temperature MFC Models
Figure 6-3, Table 6-35, and Table 6-36 provide physical dimensions for the high
temperature MFC model numbers (for both the MFC unit and the PCB unit).

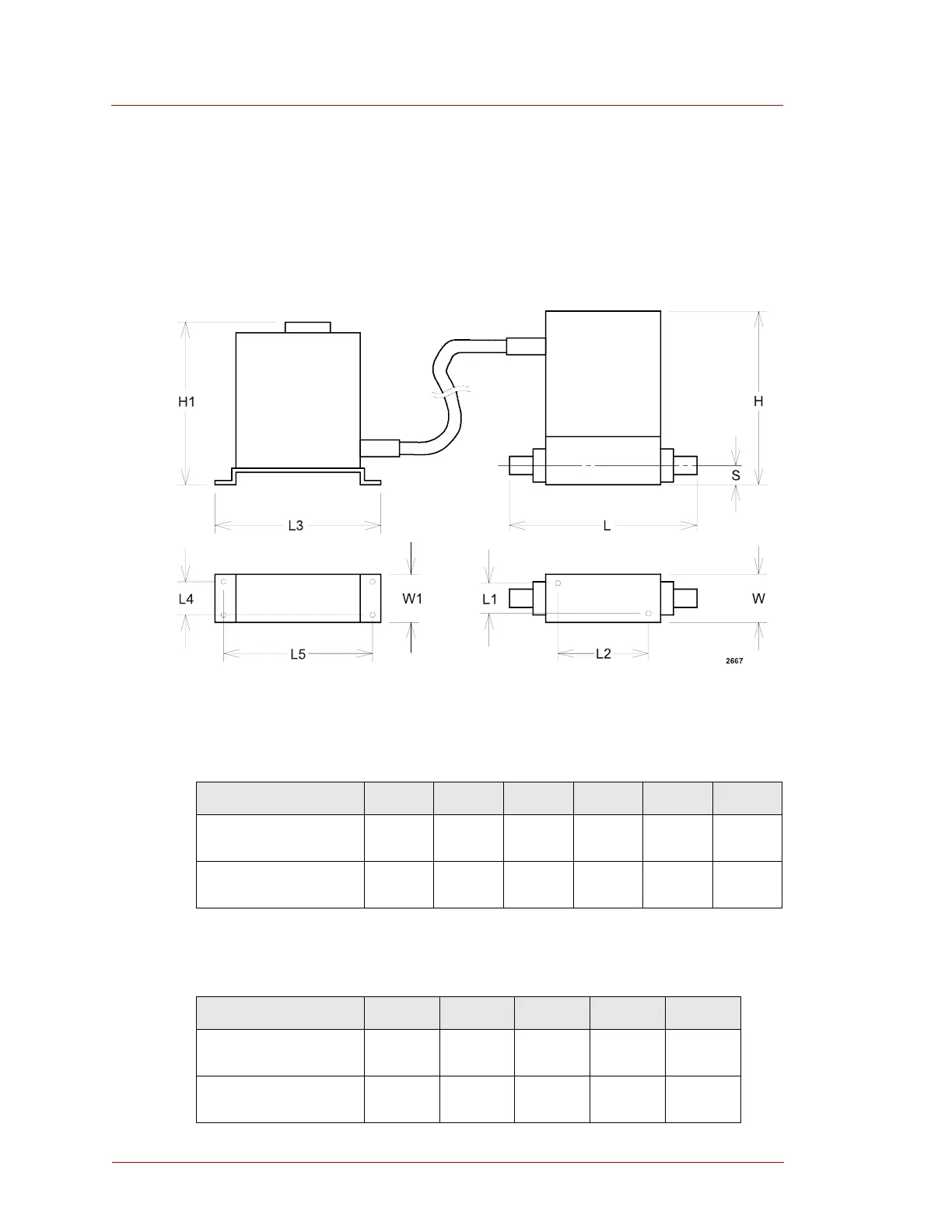

Figure 6-3. Dimensions for high temperature MFC models
Table 6-35. Dimensions of high temperature MFC units in mm (and inches)
Model L S H W L1 L2
FC-780HT / 780CHT
124
(4.88)
12.7
(0.50
107
(4.21)
32
(1.26)
18
(0.71)
69
(2.72)
FC-781HT / 781CHT
151
(5.94)
19
(0.75)
113
(4.45)
38
(1.50)
28
(1.10)
46
(1.81)
Table 6-36. Dimensions of high temperature PCB units in mm (and inches)
Model L3 H1 W1 L4 L5
FC-780HT / 780CHT
102
(4.02)
84
(3.31)
32
(1.26)
22
(0.87)
92
(3.62)
FC-781HT / 781CHT
102
(4.02)
84
(3.31)
32
(1.26)
22
(0.87)
92
(3.62)
