Advanced Energy FC-77 Series User Manual

6-34 Specifications and Reference Information 5700512-C
Advanced Energy
®
Dimensions for Standard MFC Models
Figure 6-1 and Table 6-33 provide physical dimensions for standard MFC model
numbers.

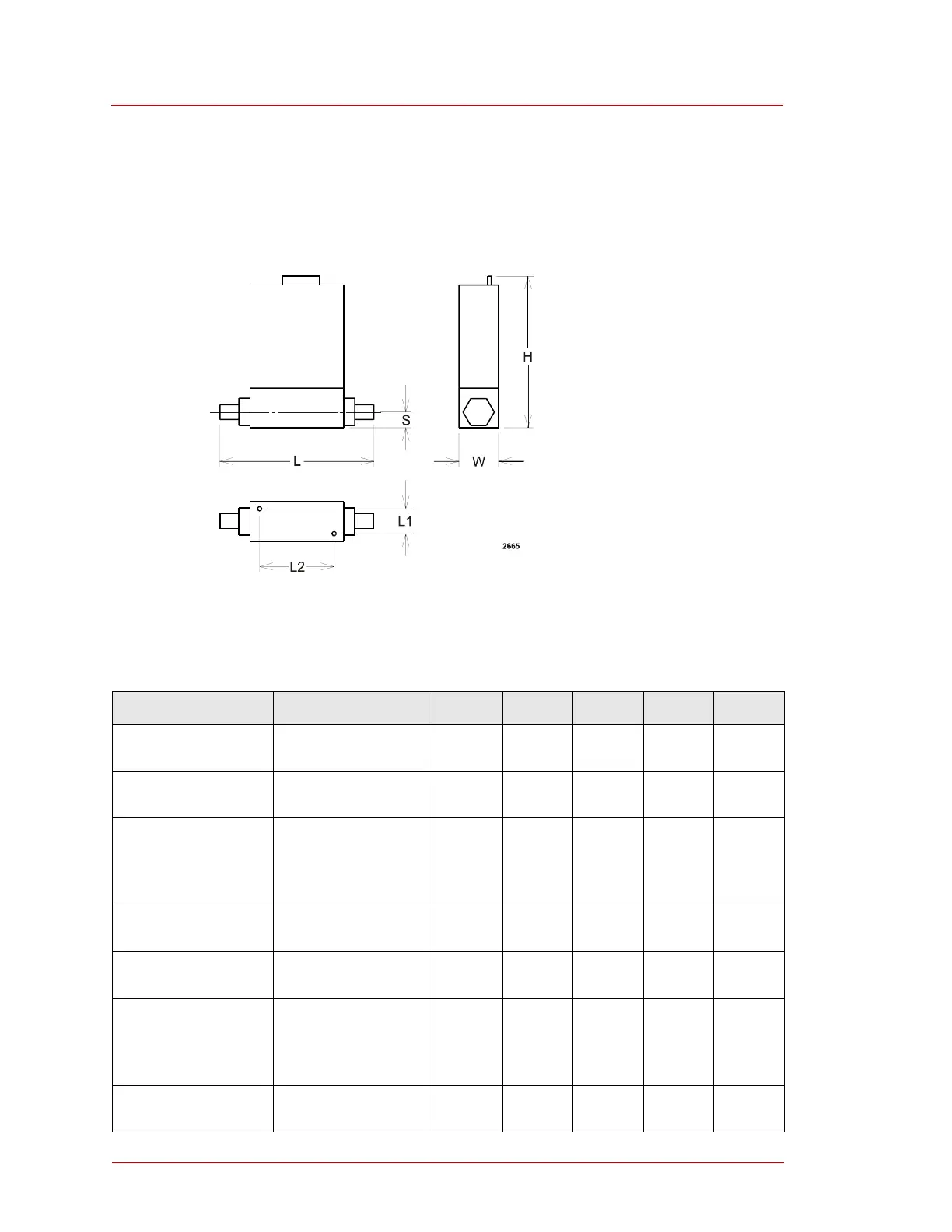

Figure 6-1. Dimensions for standard MFC models with 1/4
″ VCR fitting
Table 6-33. Dimensions for standard models in mm (and inches)
Model L S H W L1 L2
FC-770A / 770AC
124 (4.88) 12.7
(0.50)
127
(5.00)
32
(1.26)
22
(0.87)
66
(2.60)
FC-771A / 771AC
124 (4.88) 15
(0.59)
127
(5.00)
32
(1.26)
22
(0.87)
66
(2.60)
FC-772 / 772C
1/4″ VCR fitting:
183.8 (7.24)
3/8″ VCR fitting:
192.3 (7.6)
15
(0.59)
152.6
(6.01)
37.5
(1.48)
25.5
(1.00)
101.5
(4.00)
FC-780 / 780C
124 (4.88) 12.7
(0.50)
122
(4.80)
32
(1.26)
18
(0.71)
69
(2.72)
FC-781 / 781C
151 (5.94) 19
(0.75)
128
(5.04)
38
(1.50)
28
(1.10)
46
(1.81)
FC-782 / 782C
1/4″ VCR fitting:
183.8 (7.24)
3/8″ VCR fitting:
192.3 (7.6)
15
(0.59)
152
(5.98)
38
(1.50)
25.5
(1.00)
90
(3.54)
FC-780X / 780XC
124 (4.88) 12.7
(0.50)
122
(4.80)
32
(1.26)
18
(0.71)
69
(2.72)
