Advanced Energy FC-77 Series User Manual

5700512-C I/O Connections and Communication 4-11
Series FC-77X / 77XX, Series FC-78X / 78XX, and Series FC-79X MFCs

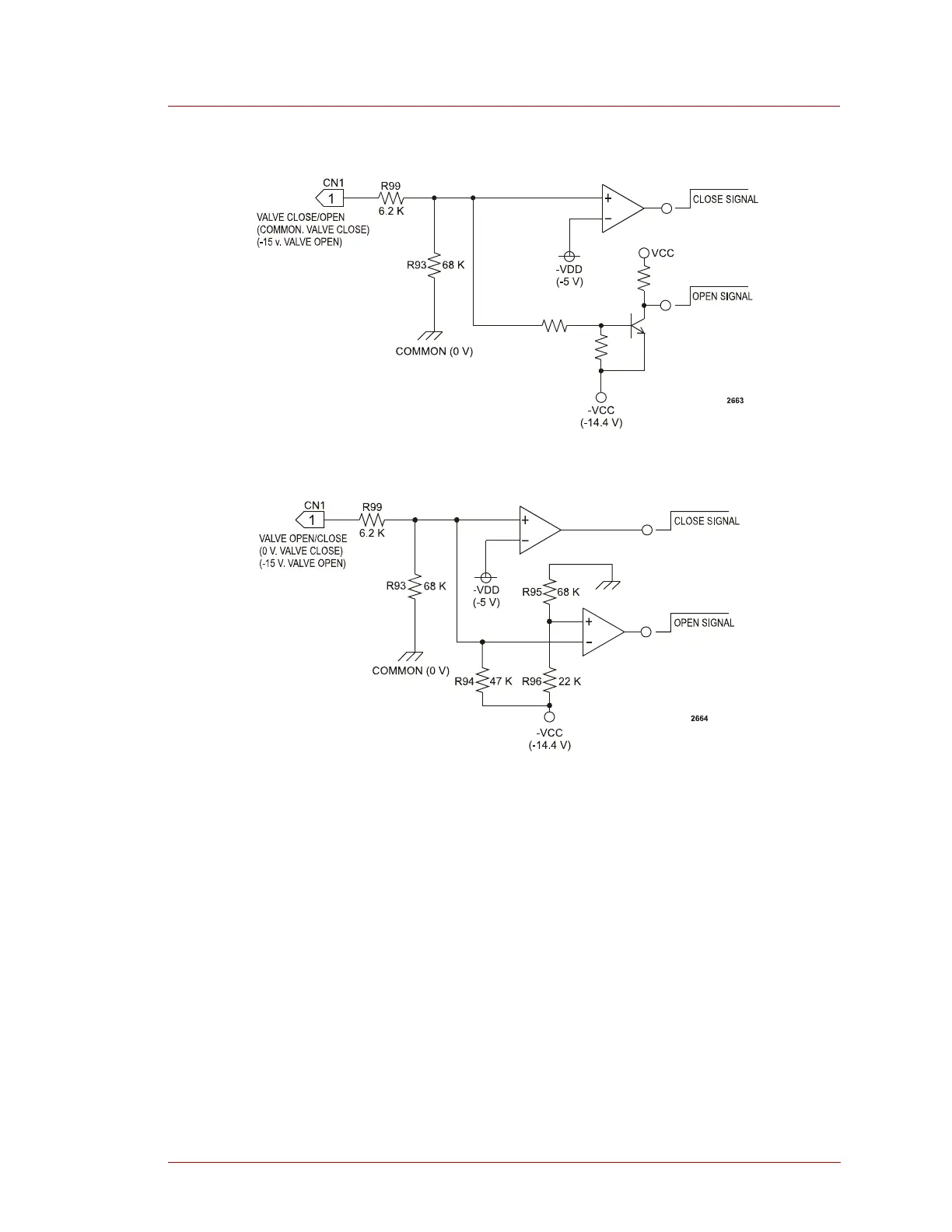

Figure 4-9. Honda 20-pin normally open internal circuitry for purge function
Figure 4-10. Honda 20-pin normally closed internal circuitry for purge function
SUBMINIATURE-D PURGE FUNCTION SIGNAL
For the 9-pin subminiature-D connector, Figure 4-11 shows the purge function
connection. This connector is only available on normally closed MFCs. Figure 4-12
shows the internal circuitry for this connection.
