Advanced Energy FC-77 Series User Manual

4-12 I/O Connections and Communication 5700512-C
Advanced Energy
®

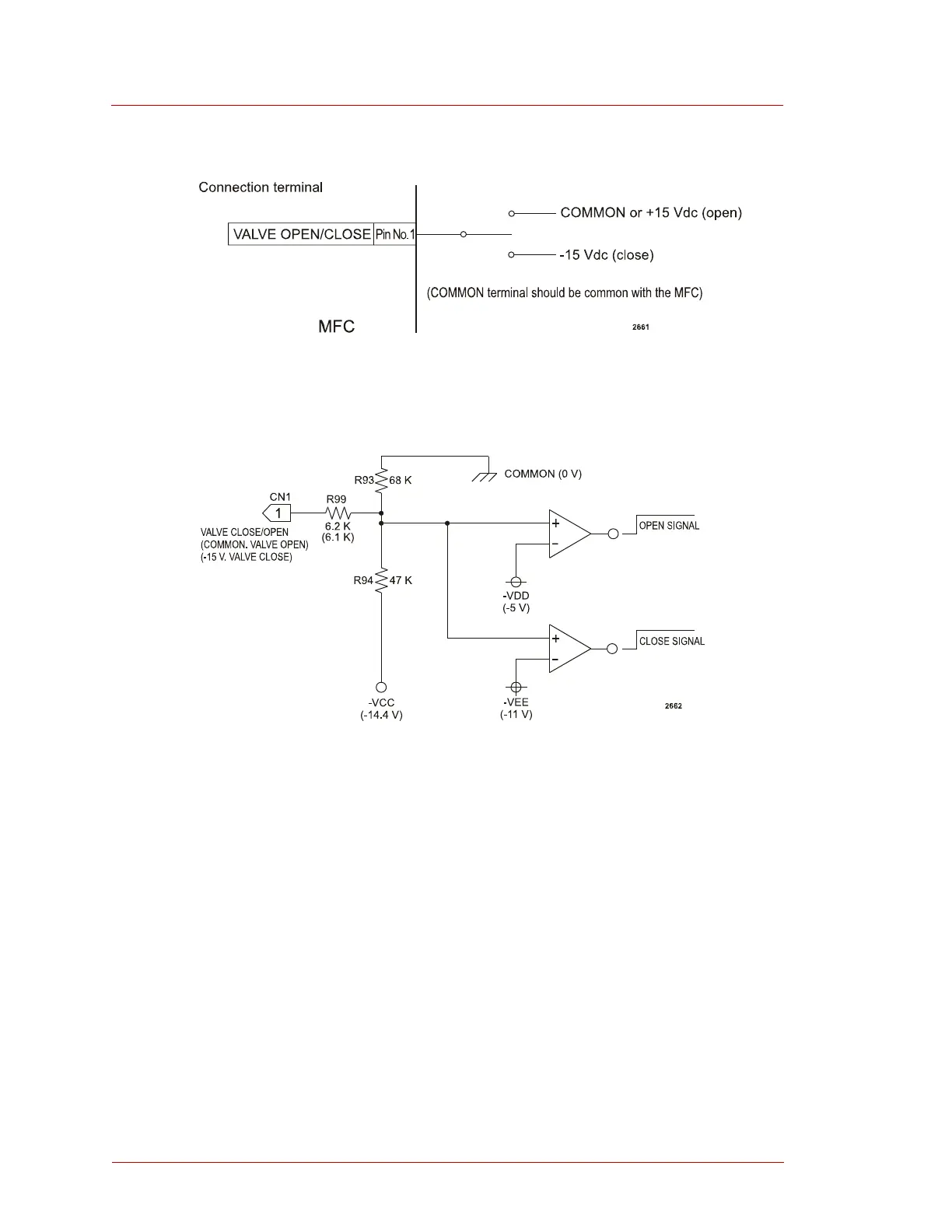

Figure 4-11. 9-pin subminiature-D purge function connection
Figure 4-12. 9-pin subminiature-D internal circuitry for purge function
To disengage this function, disconnect the MFC terminal.
