Advanced Energy FC-77 Series User Manual

5700512-C Specifications and Reference Information 6-37
Series FC-77X / 77XX, Series FC-78X / 78XX, and Series FC-79X MFCs
Dimensions For Block-Type MFC Models
Figure 6-2 and Table 6-34 provide physical dimensions for block-type MFC model
numbers.

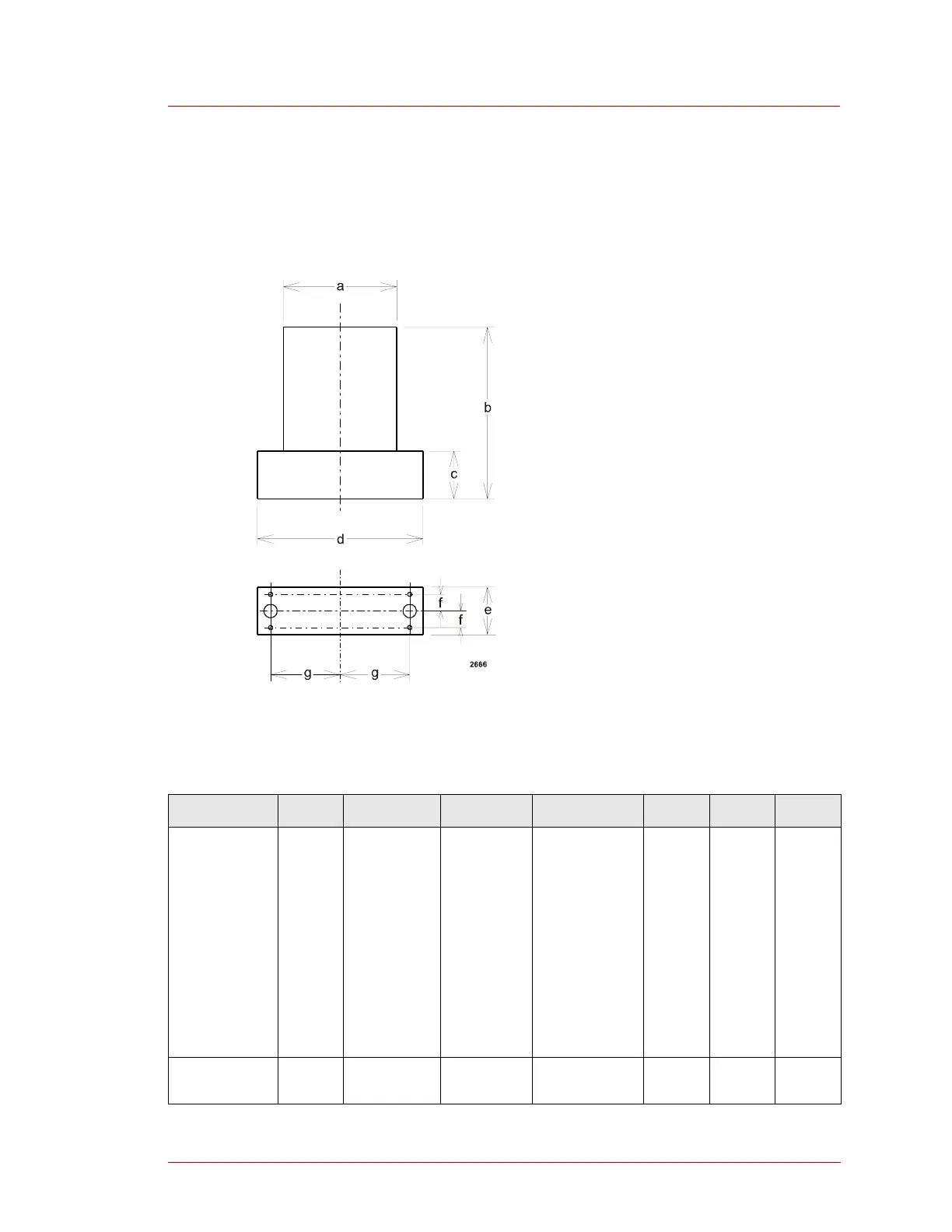

Figure 6-2. Dimensions of block-type MFC models
Table 6-34. Dimensions for block-type models in mm (and inches)
Model a b c d e f g
FC-7850Y-B
FC-7850CY-B
FC-785Y-B
FC-785CY-B
FC-786Y-B
FC-786CY-B
FC-785T-B
FC-785CT-B
FC-786T-B
FC-786CT-B
FC-795T-B
FC-795CT-B
63.6
(2.50)
180 (7.09)
maximum
40 (1.57)
maximum
99.5 ±6.5
(3.92 ±0.26)
38
(1.50)
15
(0.59)
39.9
(1.57)
FC-785X-B
FC-785XC-B
68
(2.68)
180 (7.09)
maximum
40 (1.57)
maximum
99.5 ±6.5
(3.92 ±0.26)
38
(1.50)
15
(0.59)
39.9
(1.57)
