Site Planning
Minimum Clearance
Calculate Ceiling Height
Step 1: Measure the lower vehicle height.
Step 2: Round up to the next lock (see page 10).
Step 3: Measure the Upper vehicle height.
Minimum Ceiling Height = Clearance Lock Height + 4.5 + Upper Vehicle Height

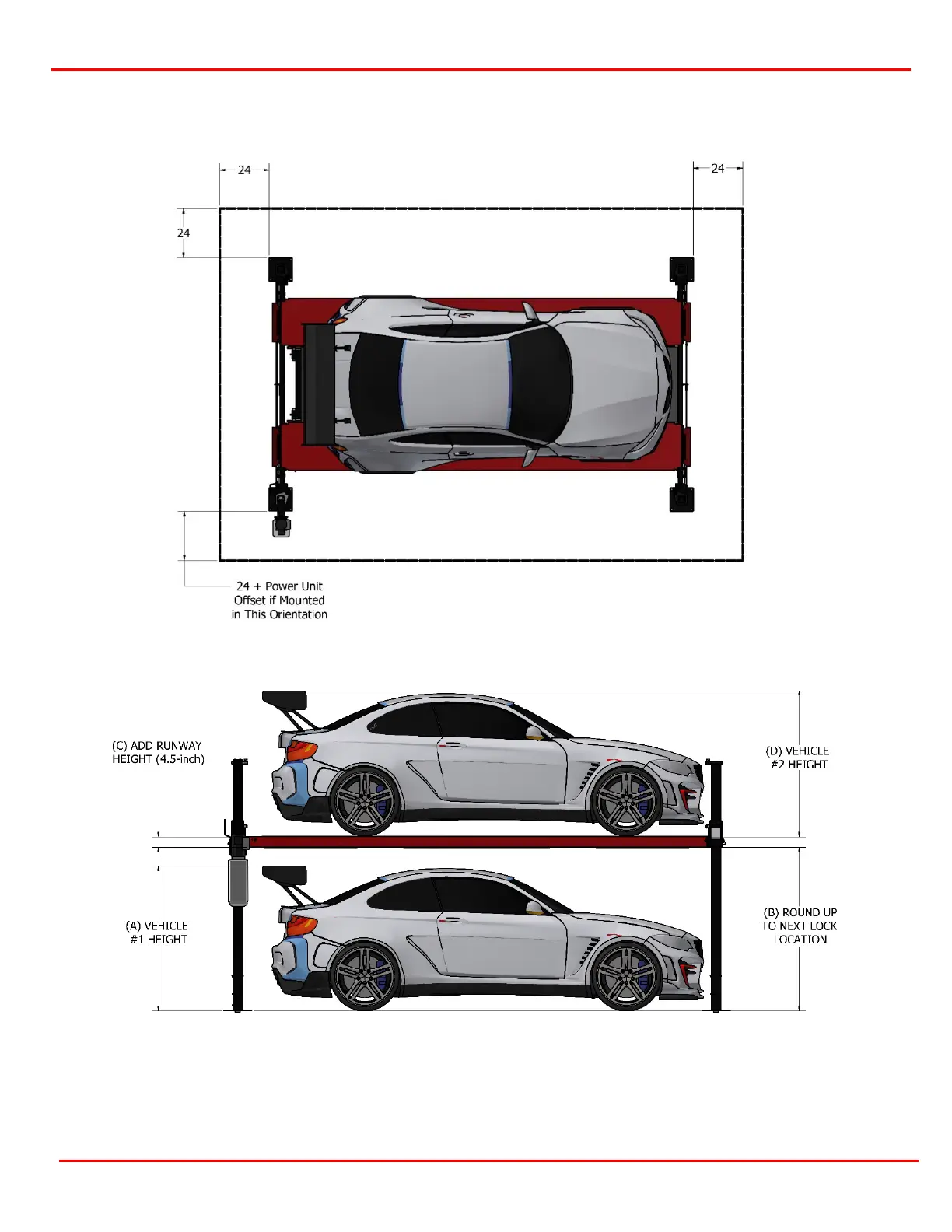

Figure 1.2 Clearance Around the Lift
Figure 1.3 Lift Clearance (Height)
