BYB User Manual Page 19 of 55 PN: 90020 Version: 1.4

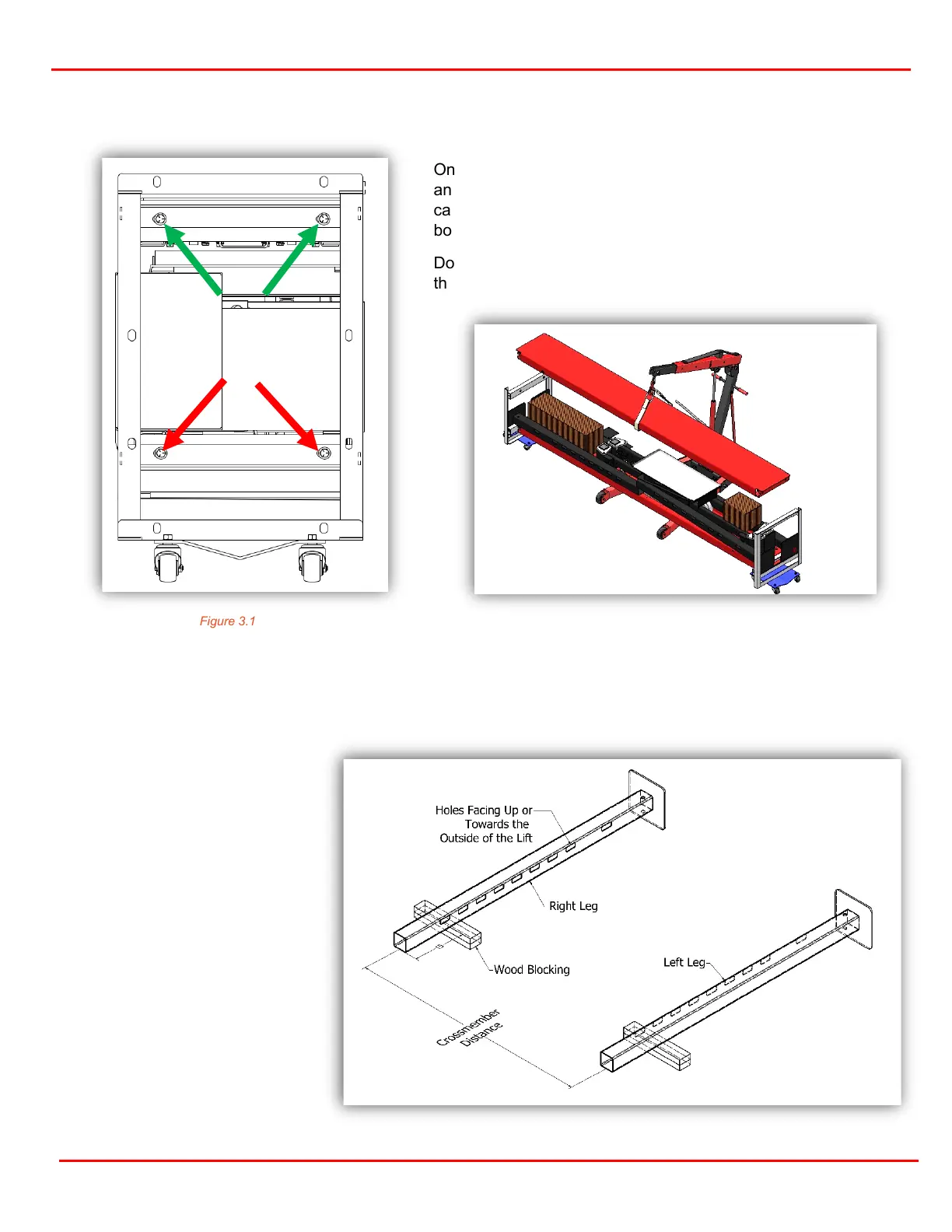

STEP 3: Legs, Crossmember & Guide Block Installation
Figure 3.1 Figure 3.2
Using the material handler remove the top powered runway from Package 1. Make sure the load is centered
and at least 2 people are present to stabilize the ends while moving. Place out of the way on top of 2x4s.
packaged with the lift and then
a set of legs. There are 2 left
legs and 2 right legs. The legs
can be placed where the lift will
be assembled.
Position the legs so the lock cut
outs are facing each other, and
that the lock cut outs are on the
outer edge of the leg.
Crossmember distance (center
to center)
• CL/XT: 79.125 in.
• WB/BB/WF: 112.375 in.
• BT: 172 in.
Once the layout has been determined, remove the cardboard
and shrink wrap if still attached and cut the metal banding with
caution as it is under tension. Remove the top runway and leg
bolts using a 3/4 box wrench and socket (or impact).
Do not remove the 4 bolts that hold the bottom runway in place,
these holds the package together (Figure 3.2)
