BYB User Manual Page 18 of 55 PN: 90020 Version: 1.4

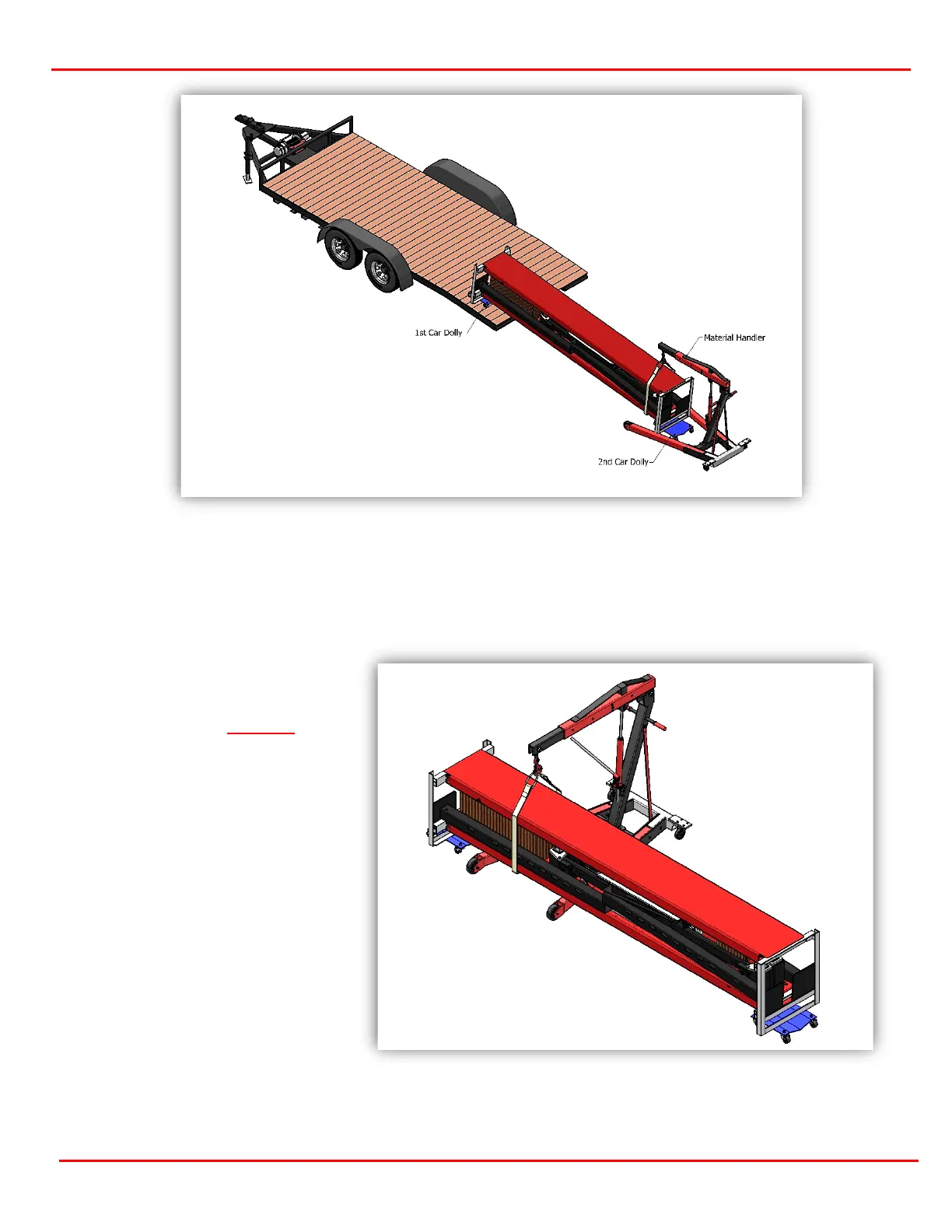

Figure 2.4
Finally, the car dolly and blocking can be positioned on the ground between the legs of the material handler,
directly under the packaged assembly. It can now be safely lowered to rest on the dolly. If possible, leave
the packaged lift assembly securely resting on the car dollies. This will allow the assembly and sub-
components to be positioned closer to the final assembled location. (Figures 2.9 thru 2.11)
Figure 2.5
Before unpacking the lift plan the
location and position of the lift.
Consult figure 1.1 (
pgs. 7-15) for
the Power Unit locations.
The information there will help
you to finalize your intended
layout for positioning of the lift to
regard with critical clearances
required during assembly and to
determine where your Power Unit
will be positioned.
The Power Unit can only be
mounted on either the driver’s
side front or passengers side
rear. Keep in mind the lift is easily
repositioned after it is fully
assembled with the optional
caster kit.
