Components in the lift
The components in the lift are now accessible to view. the contents list to verify that all the parts are present.
Some of the smaller components found nested under the lips of the lower runway.
Take the time to review each item before continuing the build. See Figure 3.4 to view the items packed
between the runways, Figure 3.5 for items inside the hardware box and the hardware list provided.
Hardware Box Contents:
Item
Qty
PN
Description
1
4
20039
Drip Trays
2
3
40005
Top Cap Assembly
3
2
40036
Approach Ramp
4
2
40184
Crossmember Rods
(Zip tied to #11)
5
4
40202
Wheel Stop Plate
6
2
40220
Right Leg
7
2
40221
Left Leg
8
1
40223
Power Unit Mount
9
1
40224
Power Unit Top Cap
10
1
40226
Non-Power Runway
11
1
40233
Cylinder Runway
12
1
40242
Crossmember
13
4
40246
Caster (1 shown)
14
1
40249
Crossmember
15
1
40252
Shipping Bracket A
16
1
40253
Shipping Bracket B
17
2
60069
Wheel Chock
18
1
90010
Power Unit
19
1
See
Below
Hardware box
Item
Qty
Description
P/N
1
12
20297
Common Slider
2
2
20298
Left Slider
3
2
20299
Right Slider
4
2
20440
Pulley Cover Right
5
2
20441
Pulley Cover Left
6
1
40040
Drain Kit Assembly
7
1
40256
Hardware Bag
8
1
40271
Documentation Packet
9
1
90003
Hydraulic Hose 3/8 hose, 72 long
10
1
90106
Hardware Box Cardboard

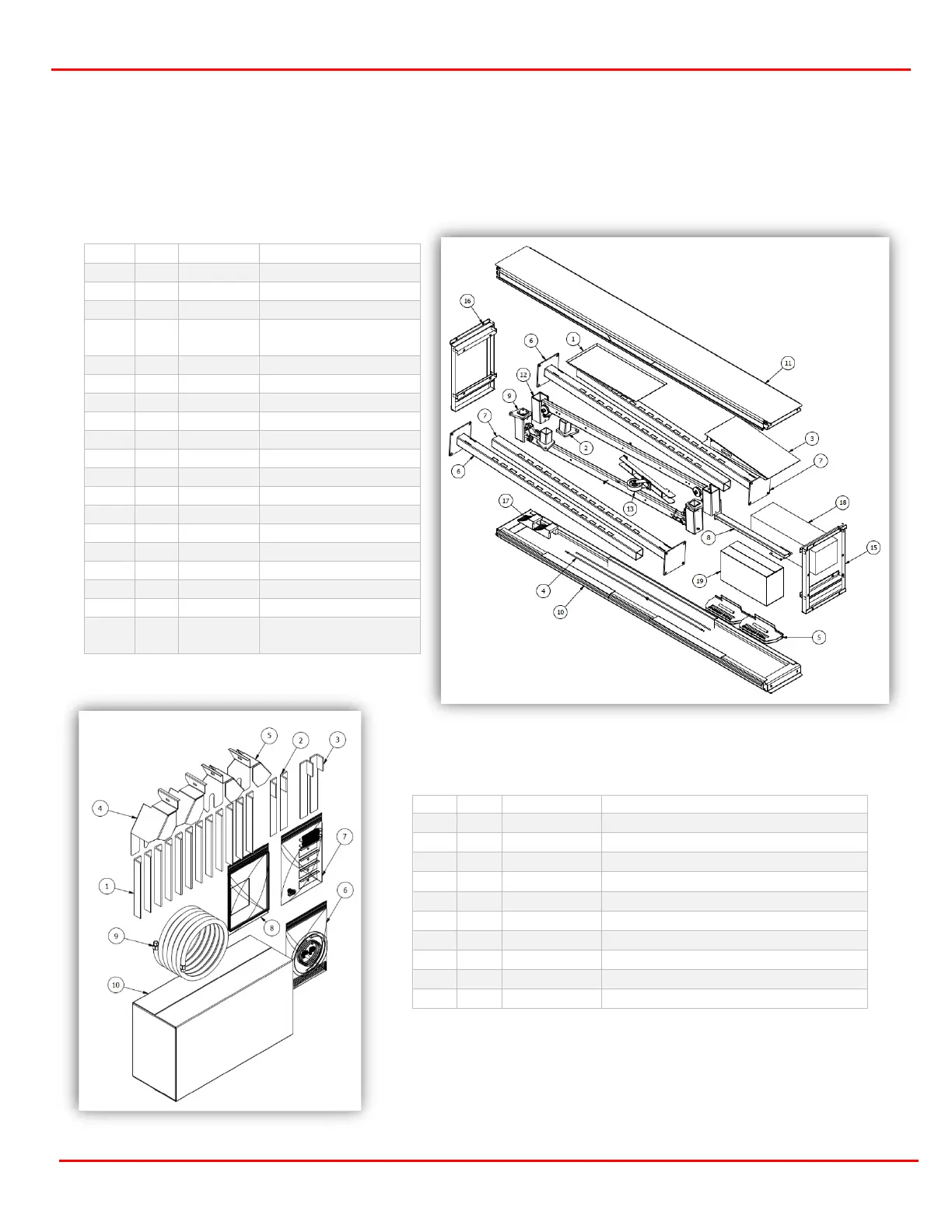

Figure 3.4: Shipping Assembly Overview
Figure 3.5: Hardware Box Contents
