BYB User Manual Page 10 of 55 PN: 90020 Version: 1.4

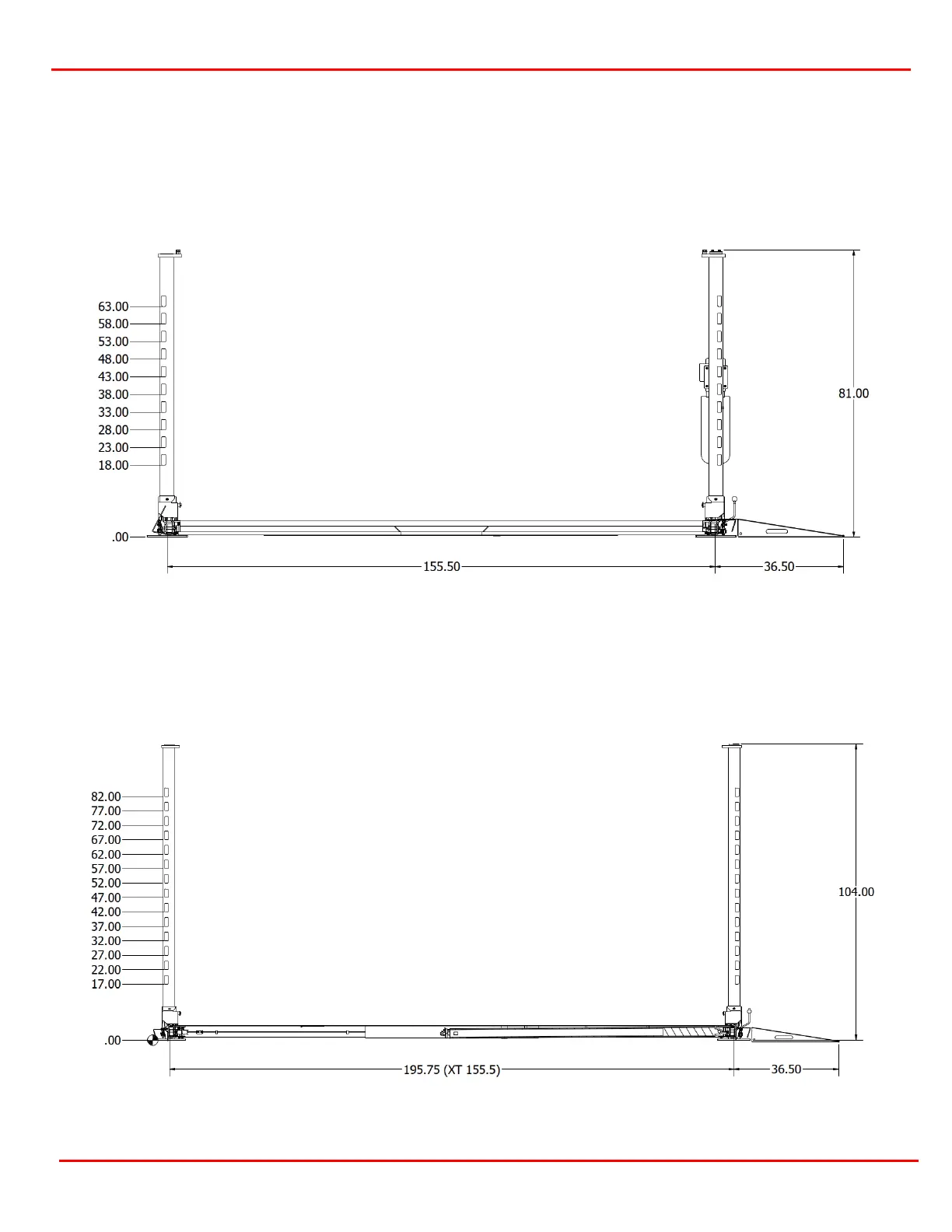

Elevation Drawings:
Classic (CL)
Note: Slot dimensions are the distance from
the ground to the bottom of the runway.
This is the vehicle clearance for each lock.
XT, WF, WB, BB, BT
Note: Slot dimensions are the distance from
the ground to the bottom of the runway.
This is the vehicle clearance for each lock.
Figure 1.4 Lift Elevation & Lock Holes
Figure 1.5 Lift Elevation & Lock Holes
