BYB User Manual Page 41 of 55 PN: 90020 Version: 1.4
Accessories

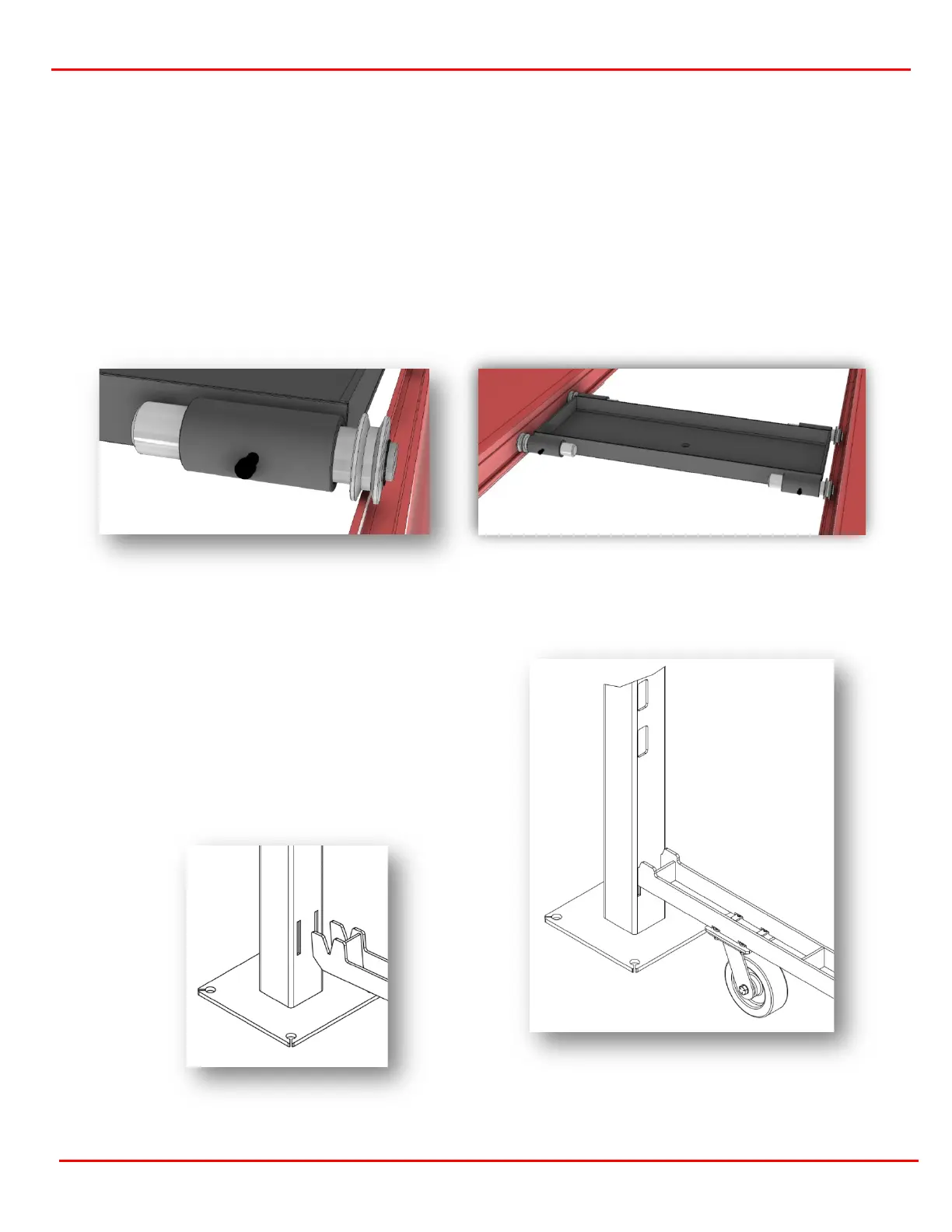

Rolling Jack Platform (ALI Certified)
Loosen the set screw on one set of wheels (axles that ride on the same track channel). Confirm the other 2
wheels are tight then place tightened wheels of the Rolling Jack Tray on one set of accessory rails. Slide the
loosened axles in or out to allow the wheels to seat properly on the opposite accessory rail. Leave the
wheels loose, this will allow the roller shafts for the other side to travel in and out slightly to take up any
misalignment or skew. Lubricate the 4 wheels on the Rolling Jack Tray. (PN 40032). Rated for 4000lbs when
placed within 48-inch of a crossmember. Rating decreases 50% for distances greater than 48-inches.
Casters
Place the caster bracket inside the slot features of
the leg. Rotate the caster bracket inside the slot
features until the base of the V is touching the top of
the slot. The lift may only be moved if completely
empty. Remove all vehicles, accessories, or stored
items before moving. To lift, lower the crossmember
on to the caster cradle until the legs are lifted off the
ground. (PN 40247, set of 4).
