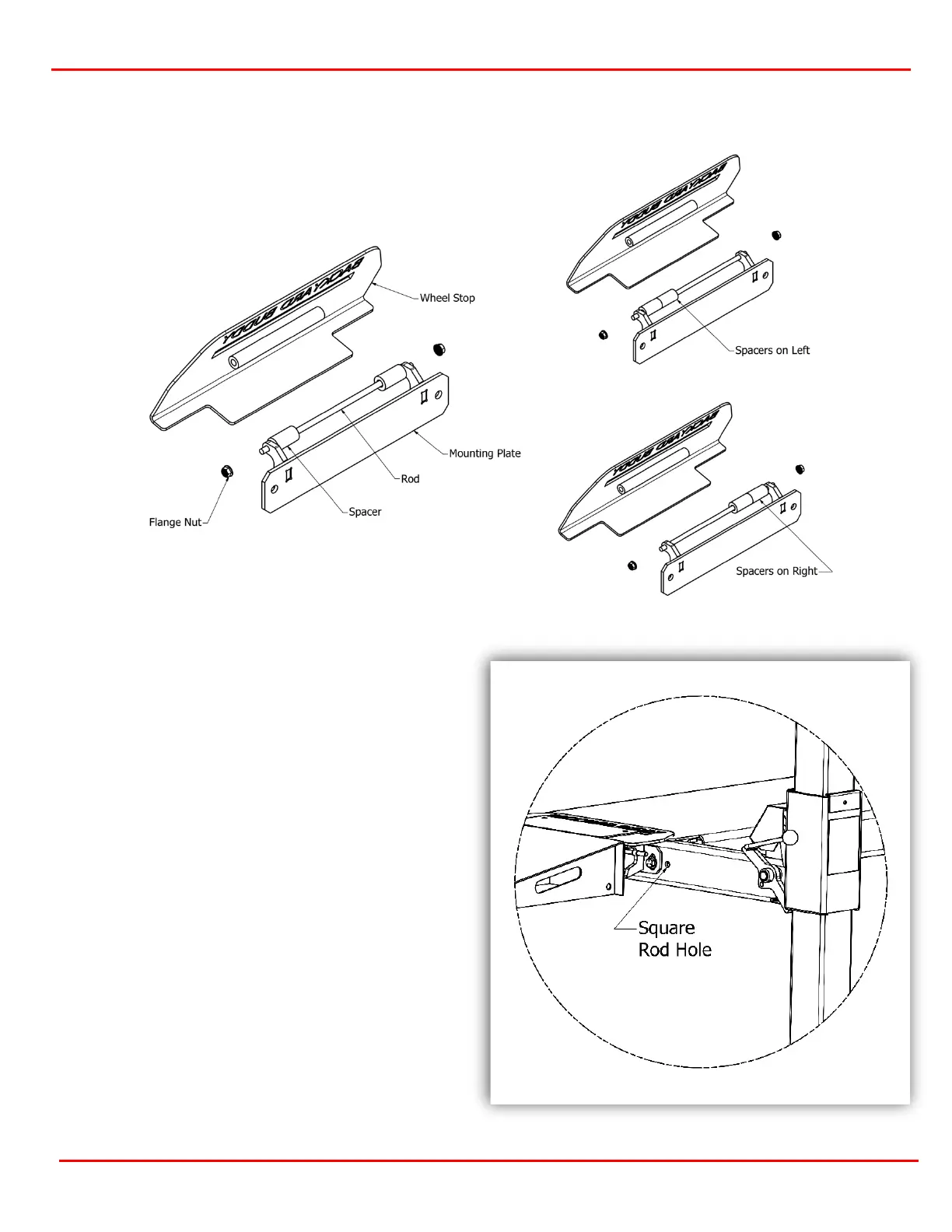

Once the runways are secured, attach the wheel stop front plate to the wheel stop mounting plate. For all
lifts except the WB, a spacer will be placed on either side of the tube welded to the wheel stop front plate.
For the WB lift, the spacers will be offset towards the left and right as shown to allow the ramp to be
centered with the runway.
STEP 5: Lock Linkage Installation
Square Rods
Select the two 12-inch square rods from the
hardware box. Locate the 2 holes (one in each
crossmember) where powered runway mounts
to the crossmember. The hole will be next to
the automatic wheel stops.
Install the zinc coated spacer onto the square
rod and slide through crossmember hole.
Rotate the pre-installed square rod coupler so
the bolts are easily accessible (Figure 5.2). Use
the coupler to attach the 12-inch square rod to
the pre-installed square rod on the runway.
When installing make sure both end plates are
pointing upward to 12 o’clock, then tighten the
bolts in the coupler.
