Pull on the cables where attached to the
cylinder under the power runway to extend
the rod on the lift cylinder.
Pull until you have the rod cylinder extended
about 3/4 of the way out.
This will gain enough free cable length to
wrap around the various pulleys and attach
the cables to the Top Caps.
Note: If the cylinder is fully collapsed into
the internal hydraulic cushion, some force
may be required.
If this is the case, you may need to use a
ratcheting strap or come-along to aid with
the pull or get an assistant to pull on another
cable simultaneously.
If you are still not able to get the cylinder to
extend, you will need to take a pry bar and
put it between the cylinder case and cable
block and pry the cylinder rod out at least an
inch.

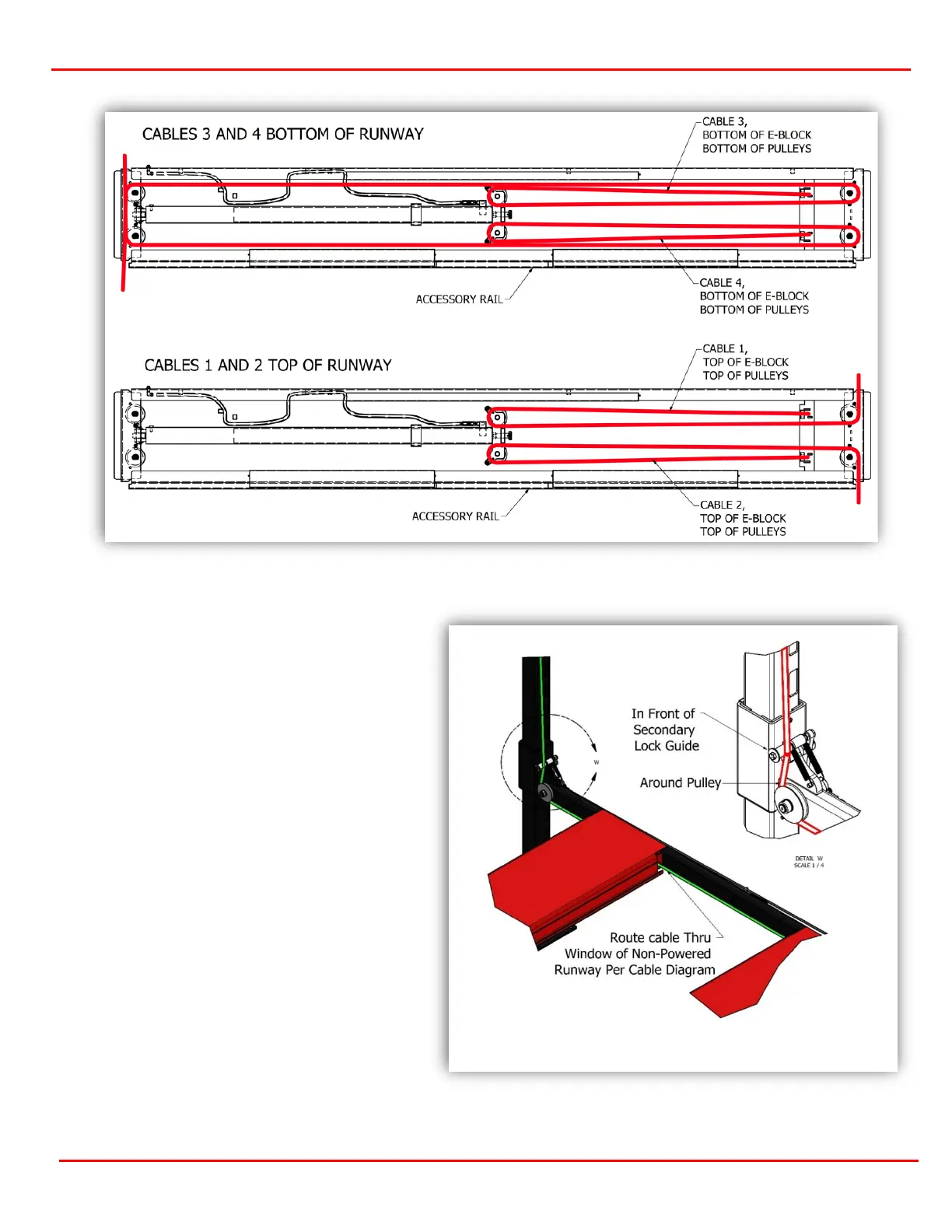

Figure 8.4 Routing Cables
Figure 8.3 Cables Routing XT
