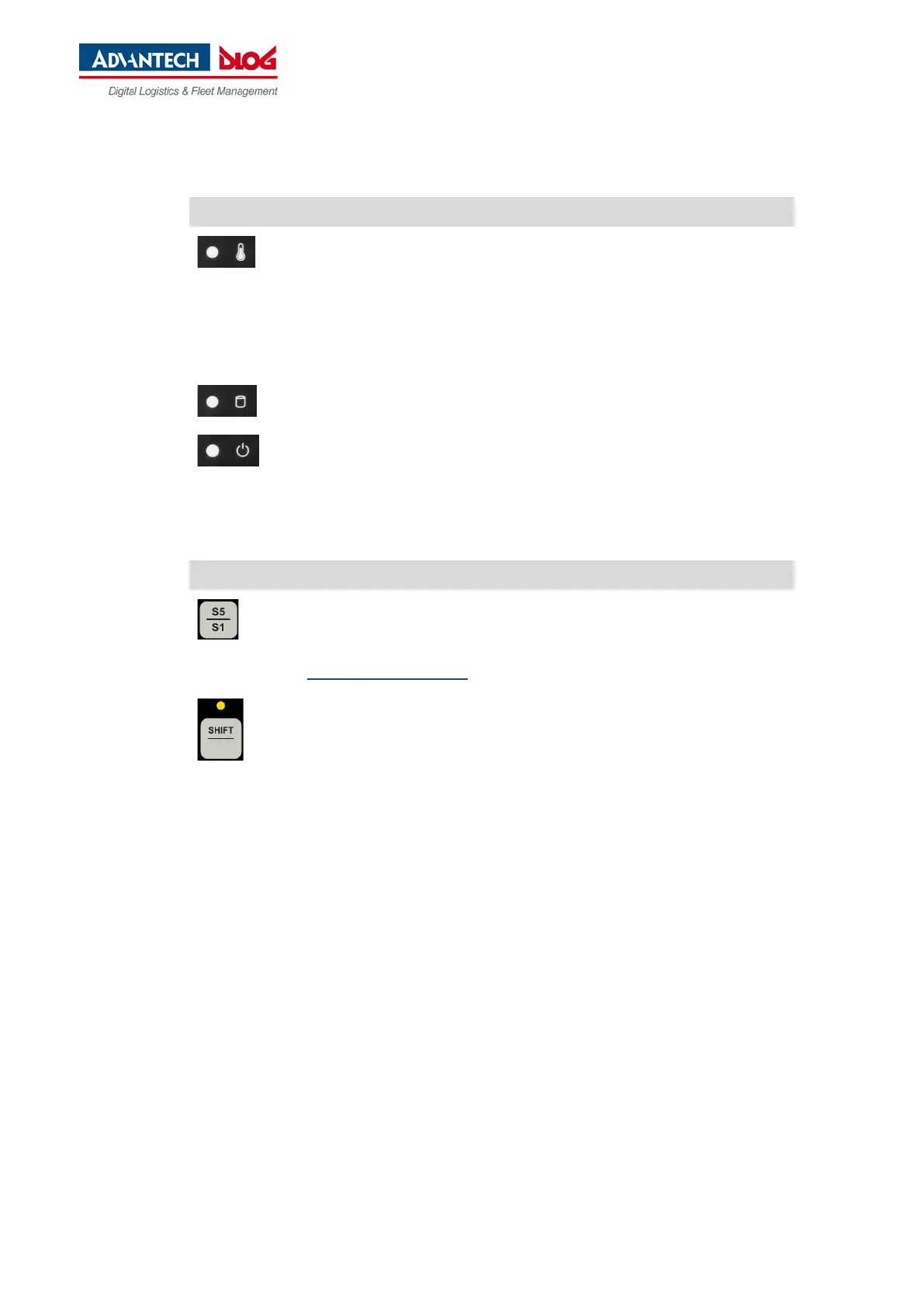

LED Explanation
Function 1: Display of excessive or insufficient temperature in the
device
Temp LED flashes red
Function 2: Display of screen defroster active or inactive
Temp LED on (red): Screen defroster is active
Temp LED off: Screen defroster is inactive
LED on (green): Indicates access to the flash drive
LED on (green): Display of available internal supply voltage
Right on the device:
Key Explanation
Special keys <S1> to <S8>
These keys are configured with the "DLoG Config" program;
the associated manual is available in the Download Center at
www.advantech-dlog.com.
<SHIFT> key
If the LED is illuminated, it indicates that <SHIFT> is activated.
