Advantech-DLoG DLT-V72 Series - DC Power Supply Cable; Fig. 10.3: DC Connection Cable Assignment

Integrated power supply, power supply cable
56 / 94 DLT-V72 Series Manual V2.00 Advantech-DLoG
10.1.2. DC Power supply cable
WARNING
Electric shock, fire due to incorrect power supply cable.
 Use only original Advantech-DLoG power supply cables; these meet the specific
requirements for low-temperature flexibility, UV resistance, oil resistance, etc.

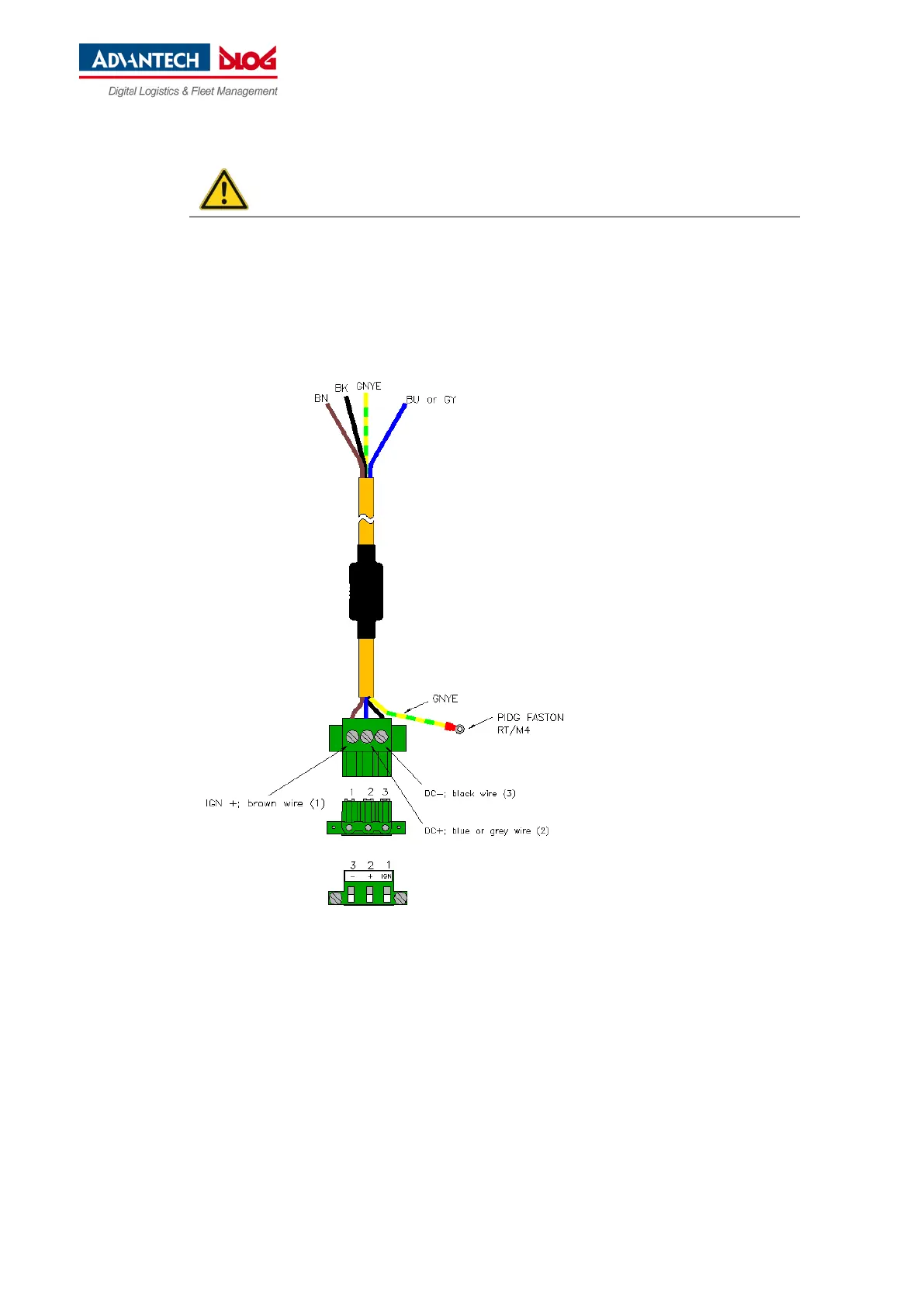

Fig. 10.3: DC connection cable assignment
