8.3.3. Securing the power supply cable to the strain relief rail
 Place one cable clip on the power supply cable.
 Secure the cable clip to the strain relief rail using 2 mounting screws
(ISO 4762-M4x10-A2 cylinder-head screws).
 Tighten the mounting screws alternatingly!
 ATTENTION Tighten the mounting screws sufficiently but on no account pinch or crush the cable.
If you do, the cables may break or the cable insulation may get damaged.

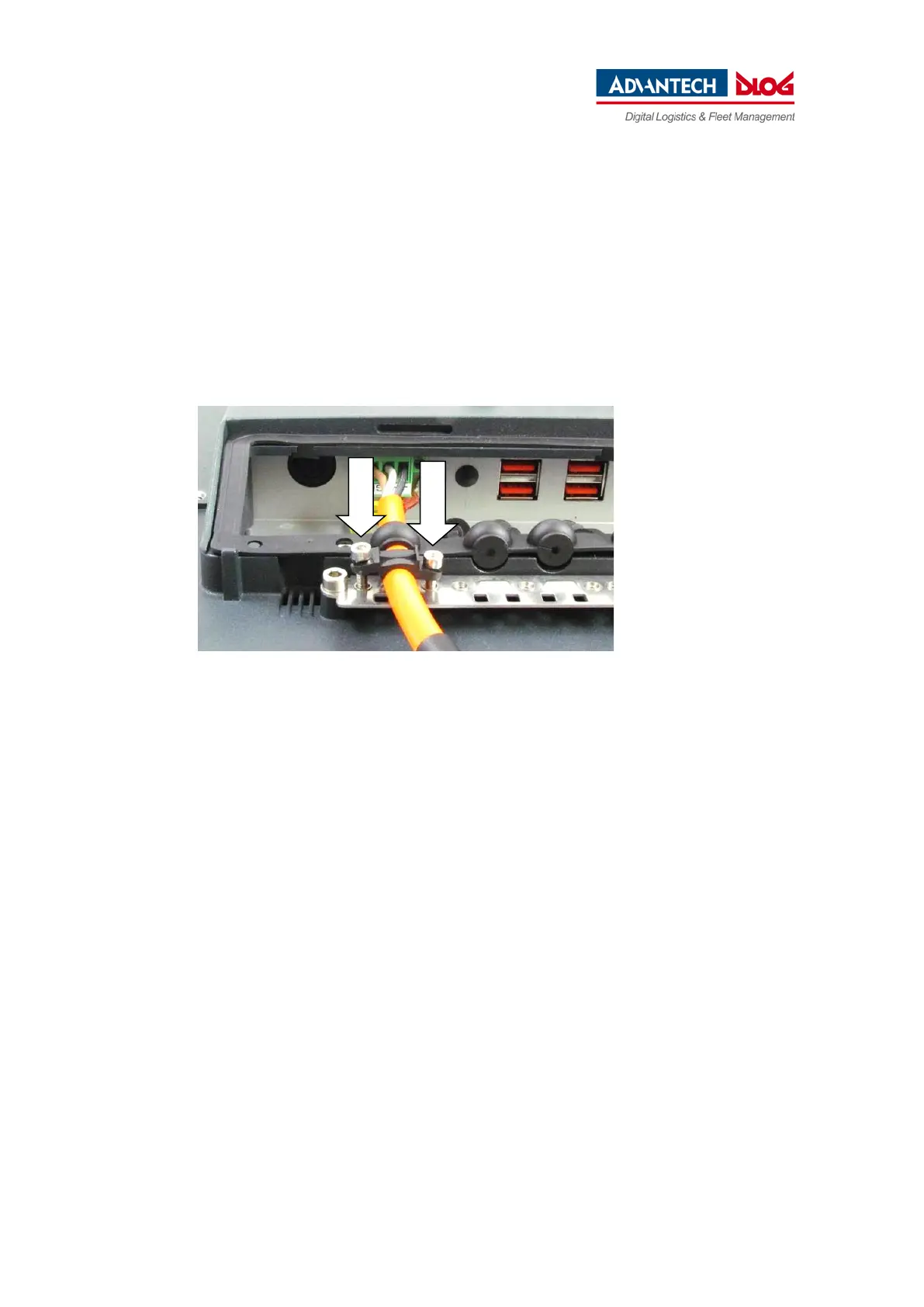

Fig. 8.4: Cable clip secured to the strain relief rail.
