Integrated power supply, power supply cable
Advantech-DLoG DLT-V72 Series Manual V2.00 55 / 94
Power consumption
DLT-V7210 (all model types: D, P, R, K) Typically 25 W; Standby typically 1 W
DLT-V7212 Typically 30 W; Standby typically 1 W
Power supply unit fuses
Power supply unit Fuse type Example
DC-16 5 x 20 mm T 12,5 A
H / 250 V
Schurter 0001.2515
Siba 179200.12,5
or similar produced by other manufacturers
The symbol for the fuse is FA. You will find the exact position on the sticker located on the connection
plate of the DLT-V72.
10.1.1. DC voltage supply connection
Version: Phoenix Combicon, 3-pin.
External view:

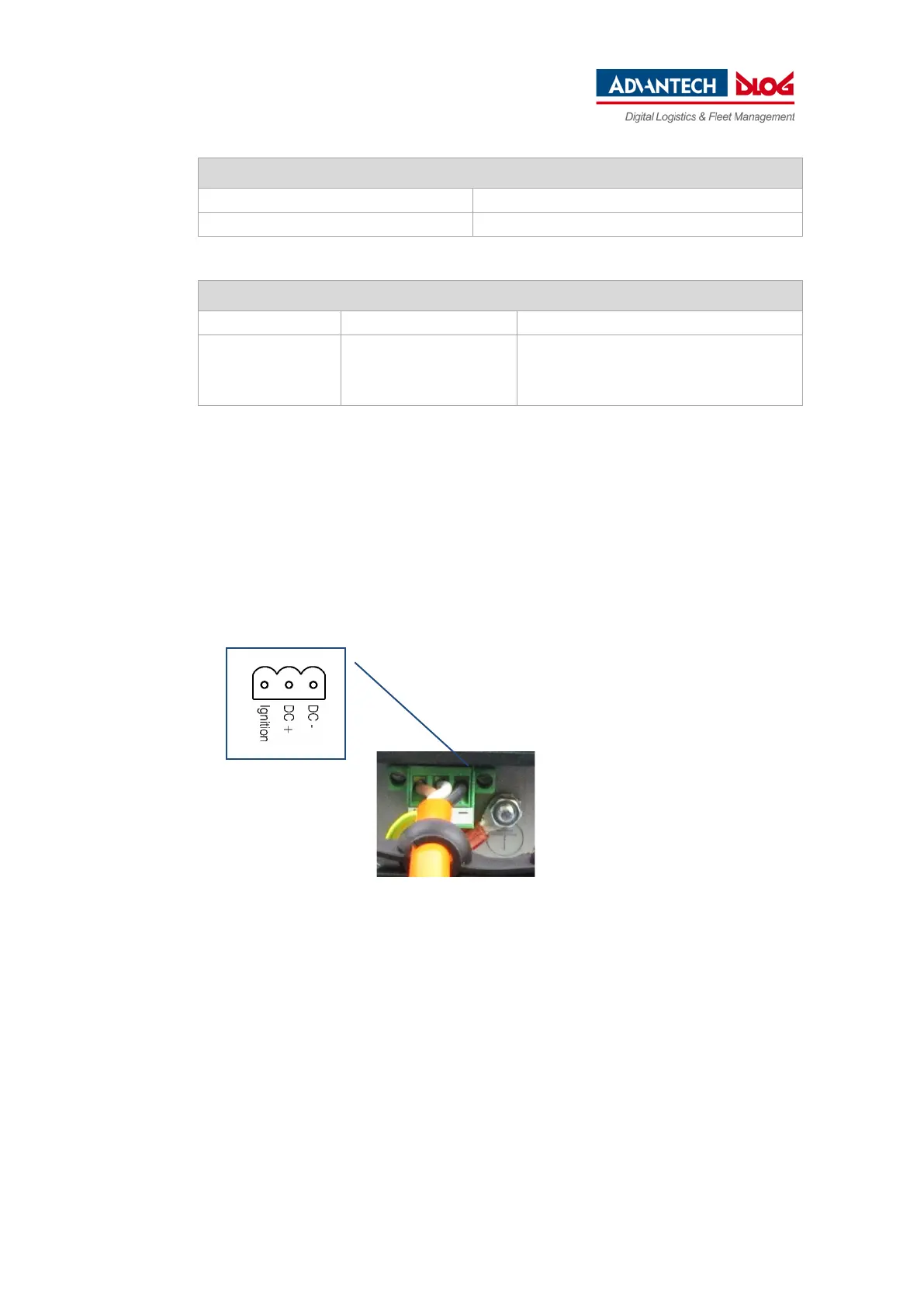

Fig. 10.2: DC power supply connector with connector detail view
Explanation:
“Ignition on” means that a control signal can be routed to this connection (e.g., ignition of a vehicle), that
matches the supply voltage level and is able to supply at least 1 W to the DLT-V72. The signal reference
is DC-.
