9. Connectors
9.1. Under the cable cover

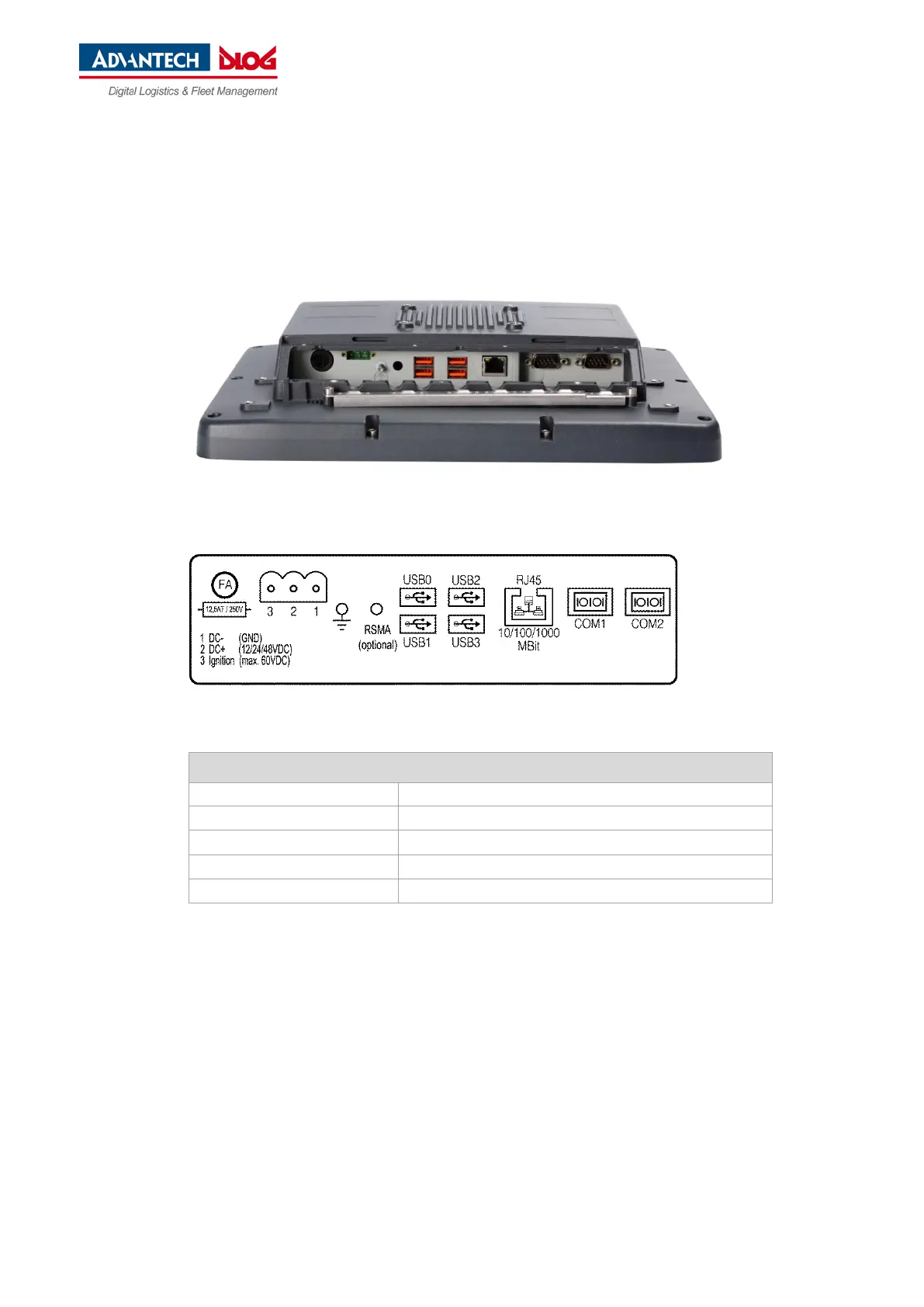

Fig. 9.1: External connectors under the cable cover
Fig. 9.2: External connectors – detail view
Pin assignment
Power supply 12/24/48 VDC nominal
1 x RSMA (optional) Remote Wi-Fi antenna
USB0, USB1, USB2, USB3 USB 2.0 interfaces (HI-SPEED™), bootable
RJ45 LAN Ethernet 10/100/1000 MBit/s
COM1, COM2 Serial interfaces
