ADAM-4000 Series User Manual 46
3.8.6.1 Technical Specification of ADAM-4017+
3.8.7 ADAM-4018 8-channel Analog Input Module

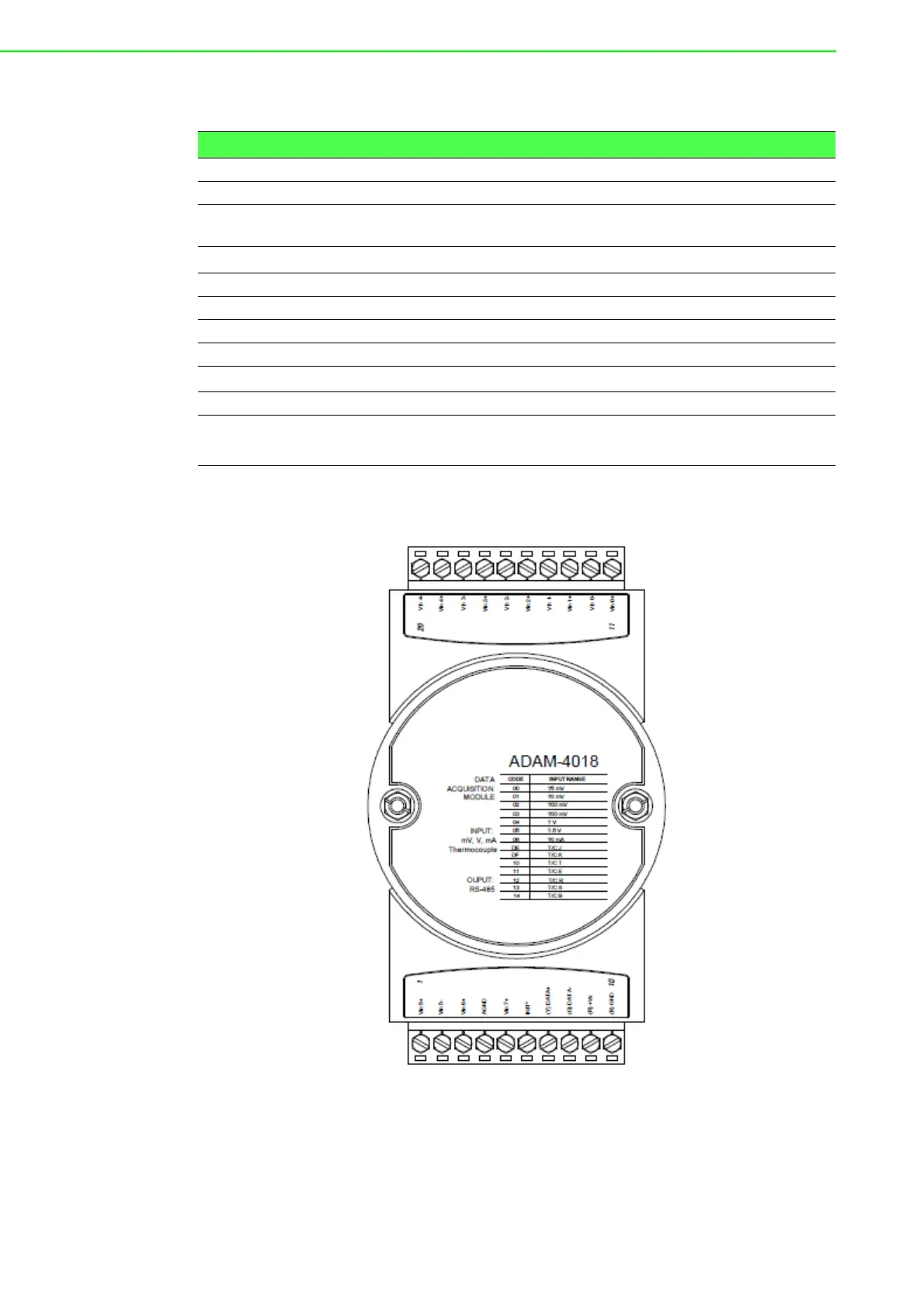

Figure 3.27 ADAM-4018 8-channel Thermocouple Input Module
Channels:
- Six differential, two single-ended
Accepts:
Table 3.3: Technical Specification of ADAM-4017+
Channel 8
Input Type mV, V, mA
Input Range
±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±20 mA, 4 ~ 20 mA
Current Input doesn’t need an external resistor
Isolation Voltage
3000 V
DC
Fault and Over-voltage protection With stands over-voltage up to ±35 V
Sampling Rate 10 sample/sec (total)
Input Impedance Voltage: 20 M, Current: 120
Accuracy ±0.1% or better
Power Consumption
1.2 W @ 24V
DC
I/O Connector Type 10 pin plug-in terminal
Span drift
Current Input: ±30 ppm/
o
C
Voltage Input: ±25 ppm/
o
C
