ADAM-4000 Series User Manual 56
3.11.1 Technical Specification of ADAM-4024
 Resolution: 12-bit
 Output Type: mA, V (Differential)
 Output Range: 0~20 mA, 4~20 mA, and ±10V
 Isolation Voltage: 3000 V
DC
 Output Impedance: 0.5 
 Accuracy:
– ±0.1% of FSR for current output
– ±0.2% of FSR for voltage output
 Zero Drift:
– Voltage output: ±30 V/°C
– Current output: ±0.2 A/°C
 Span Temperature Coefficient: ±25 ppm/°C
 Output Slope Rate:
– 0.125 ~ 128 mA/sec.
– 0.0625 ~ 64 V/sec.
 Current Load Resistor: Max. 500
 Voltage Load Resistor: Min. K 
 Built-in Watchdog Timer
 Isolation Digital Input
– Channel: 4
– Level 0: +1V max
– Level 1: +10~30 V
DC

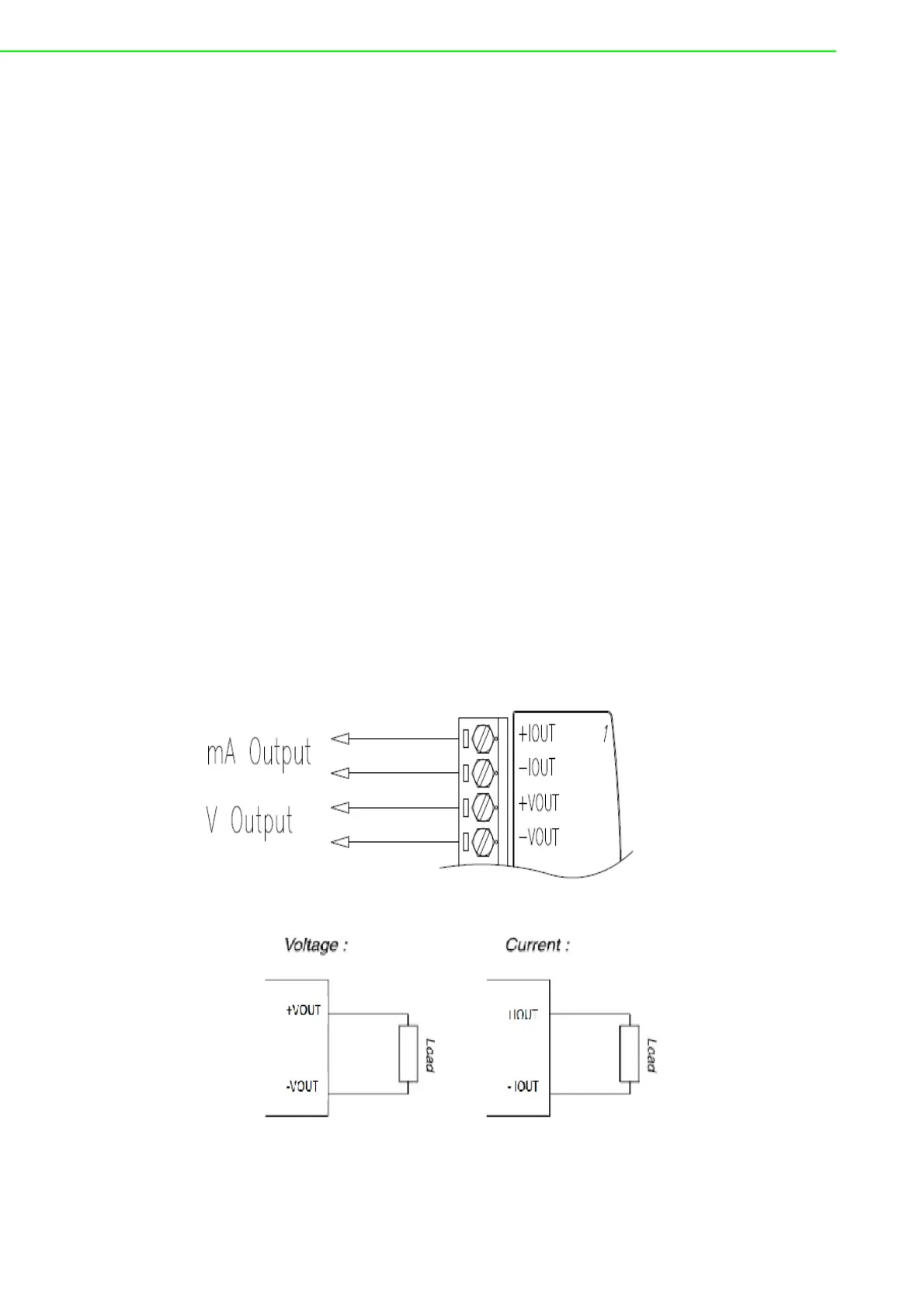

3.11.2 Application Wiring
