51 ADAM-4000 Series User Manual
Chapter 3 I/O Modules

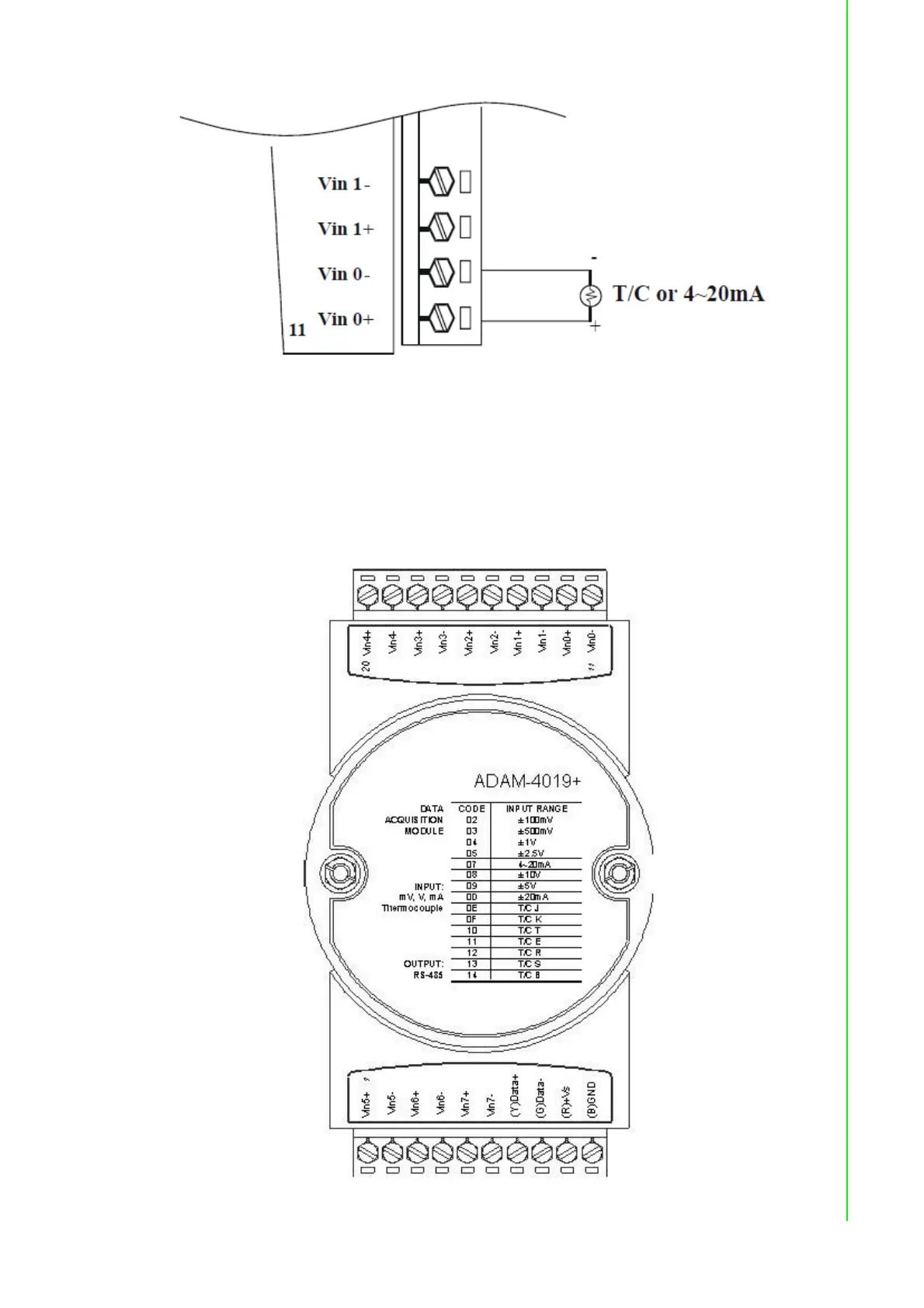

Figure 3.34 ADAM-4018+ Thermocouple Input Wiring Diagram
3.9 ADAM-4019+ 8-channel Universal Analog Input
Module
The ADAM-4019+ is universal analog input module to integrate with various AI mod-
ules into one. It not only reduces the hardware cost, but also simplifies wiring com-
plexity. Furthermore, the ADAM- 4019+ provides the burnt-out detection functionality
for 4~20mA and all thermocouple input.
Figure 3.35 ADAM-4019+ 8-channel Universal Analog Input
