ADAM-4000 Series User Manual 66
3.15.1 Application Wiring

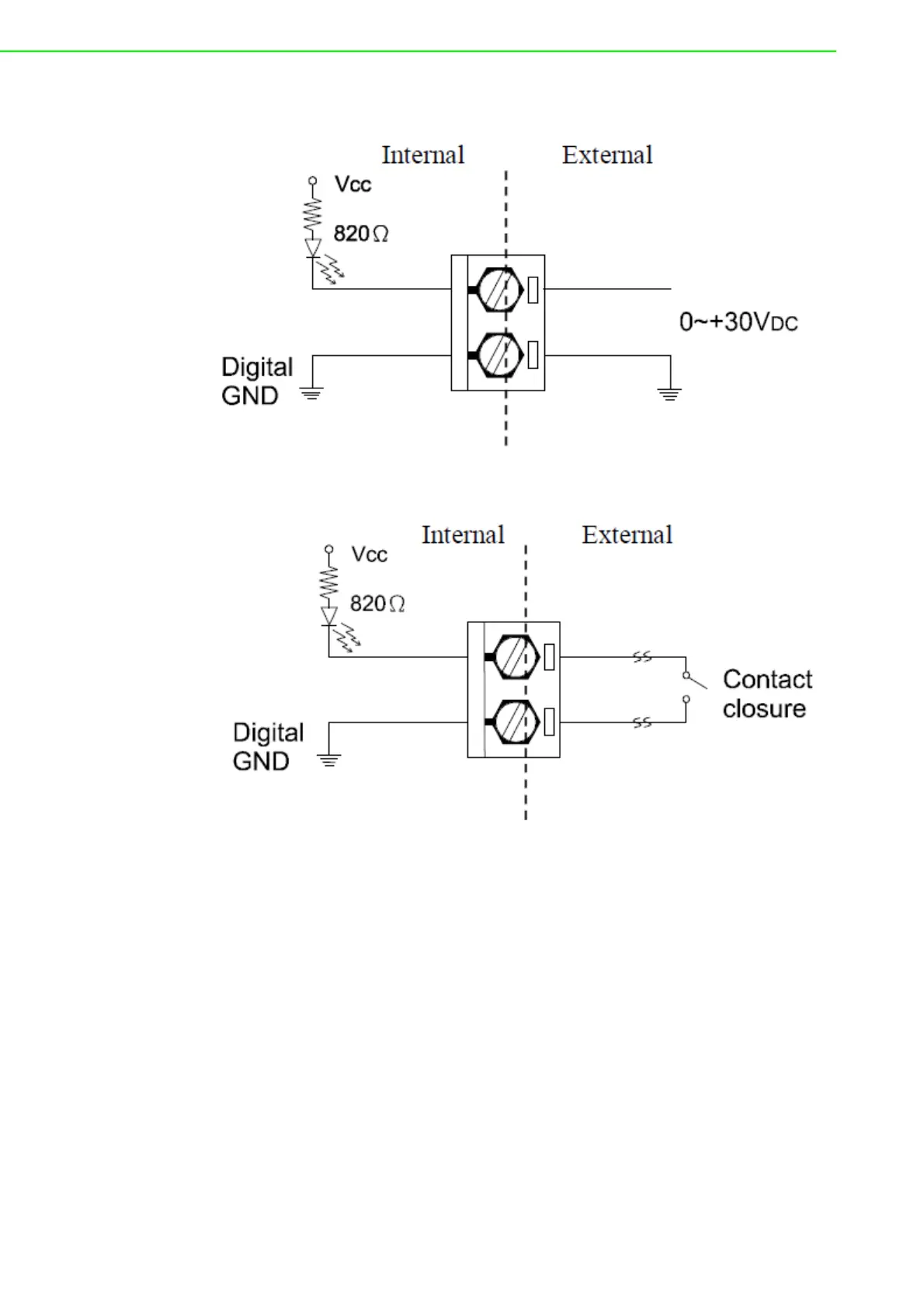

Figure 3.52 ADAM-4053 Wet Contact Input Wiring Diagram
Figure 3.53 ADAM-4053 Contact Closure Input Wiring Diagram
