ADAM-4000 Series User Manual 276
8. Continue executing the Trim Calibration command until the output current is
equal to exactly 20 mA.
9. Execute the 20 mA Calibration command until the present output is exactly 20
mA. The analog output module will store its calibrated parameters in EEPROM.
Module: ADAM-4016
1. Apply power to the strain gauge input module and let it warm up for about 30
minutes.
2. Assure that the module is correctly installed. Then, connect a voltmeter to the
screw terminals of the module.

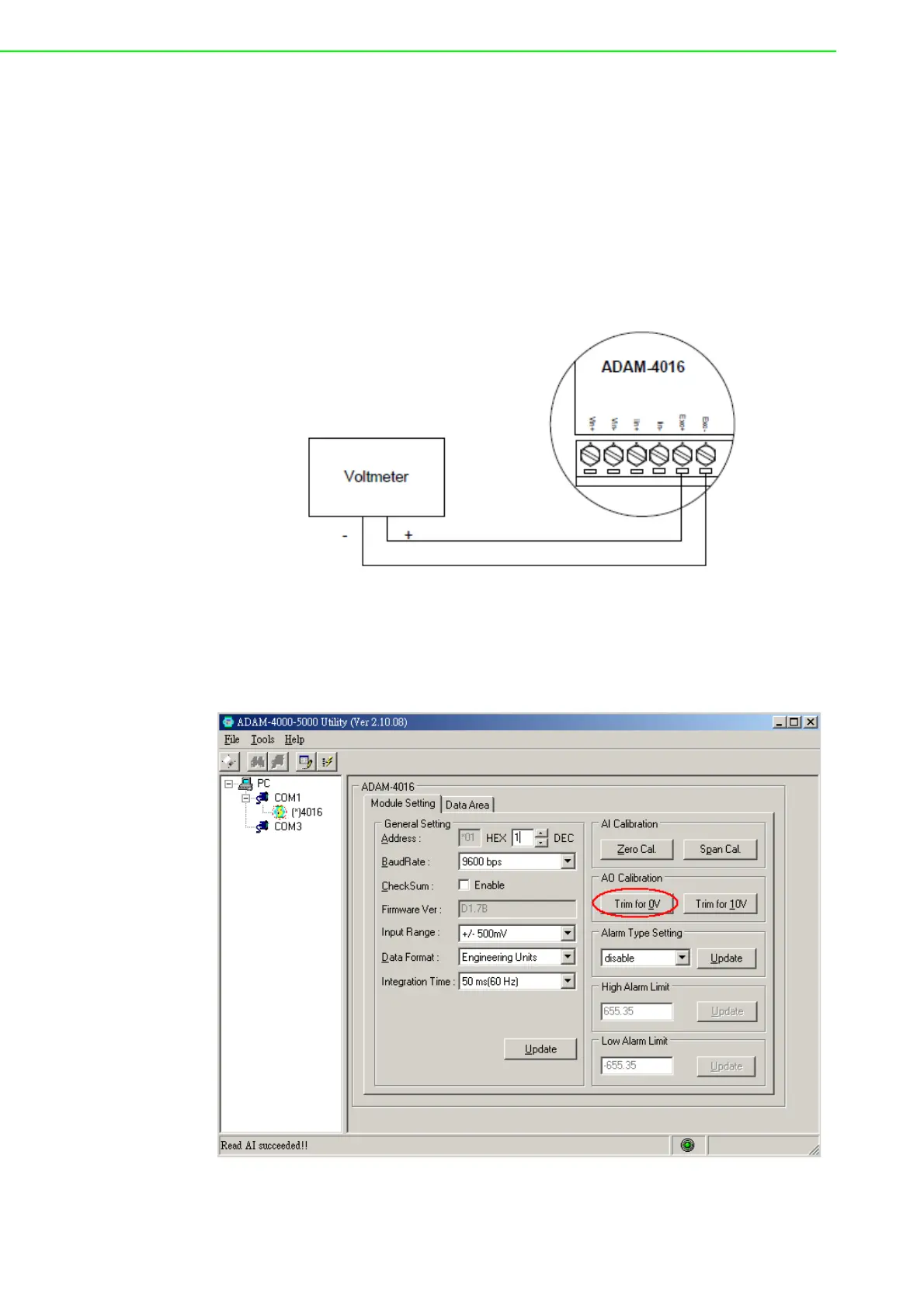

Figure 8.7 Setup for Voltage Output Calibration
3. Execute the Zero Calibration command. This is done through the ADAM utility
software. (Please see "A/O 0V Calibration" option in the Calibration sub-menu
of the ADAM utility software.)
Figure 8.8 Zero Calibration
