ADAM-4000 Series
User Manual
58

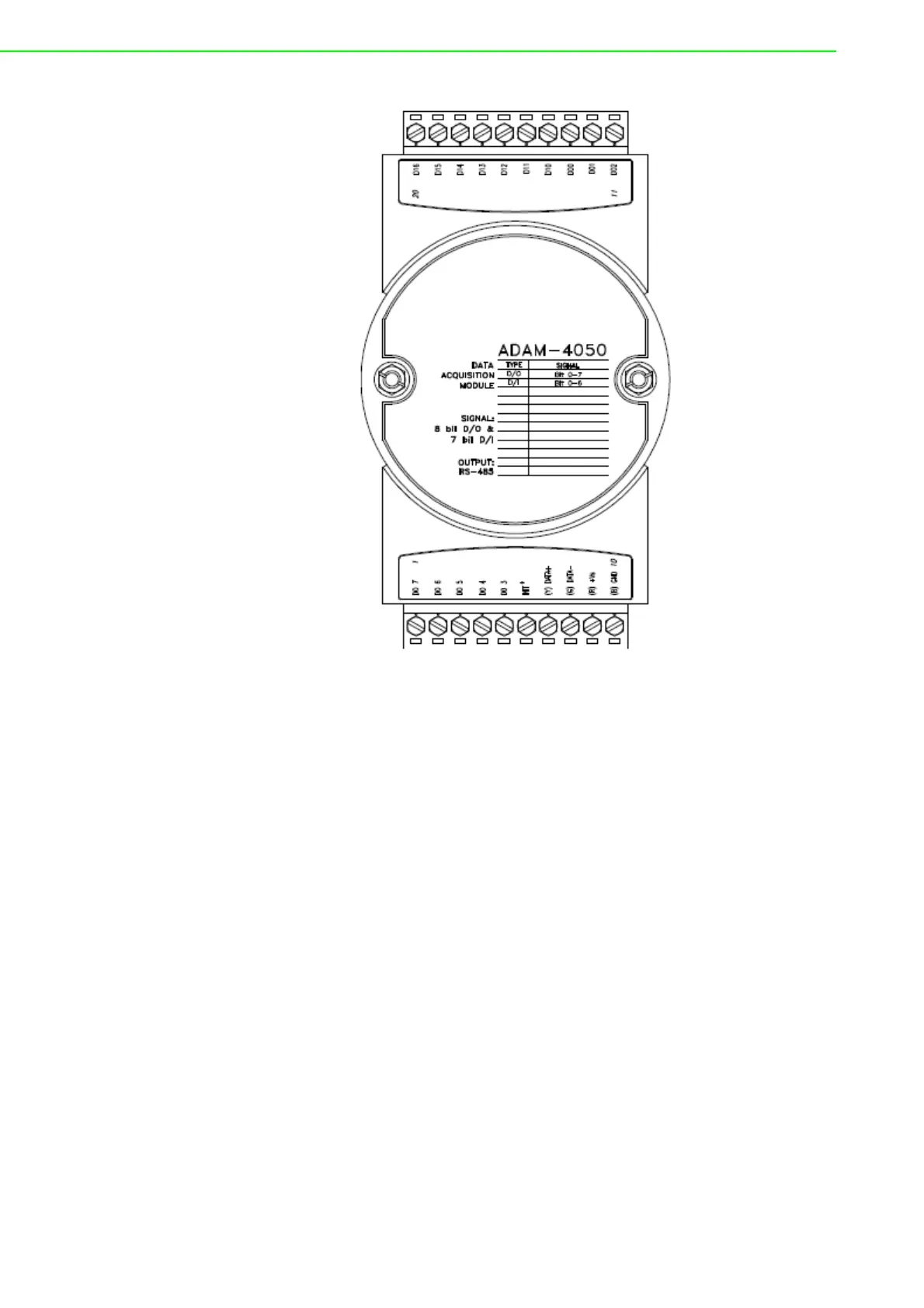

Figure 3.41 ADAM-4050 Digit
al I/O Module
Channels:
- 7 input channels
- 8 output channels
Digital Input
:
Wet
c
o
n
ta
ct
- Logic level 0: +1 V max.
- Logic level 1: +3.5 ~ 30 V
Dry contact
- Logic level 1:Open
- Logic level 0: Close to ground
Digital Output:
- Open collector to 30 V
, 30 mA max. load
