77 ADAM-4000 Series User Manual
Chapter 3 I/O Modules
3.19.2 ADAM-4068 8-channel Relay Output Module

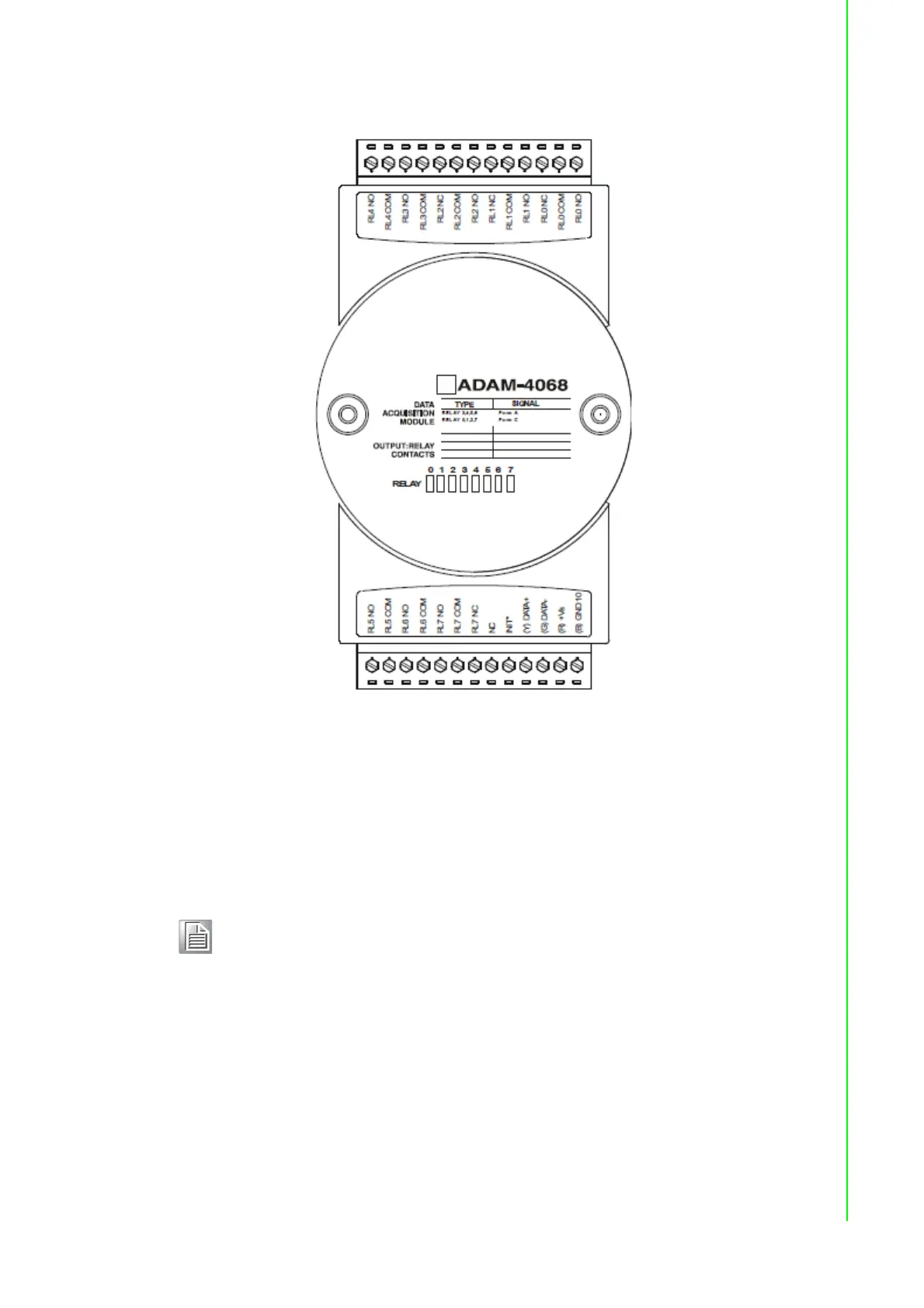

Figure 3.67 ADAM-4068 8-channel Relay Output Module
Contact Rating for Form A and Form C: (Resistive)
AC 0.5 A @120 V
0.25 A @240 V
DC 1 A @ 30 V
0.3 A @ 110 V
Note! This electric current is under the load of resistance. If you try to use the
load of inductance, the electric current would be less the above-men-
tioned value.
