63 ADAM-4000 Series User Manual
Chapter 3 I/O Modules
3.14 ADAM-4052 Isolated Digital Input Module
The ADAM-4052 provides eight digital input channels. Among these eight channels,
six of them are fully independent isolated channels and the other two are isolated
channels with a common ground. They all have 5000 V
RMS
isolation to prevent
power surges from the input lines

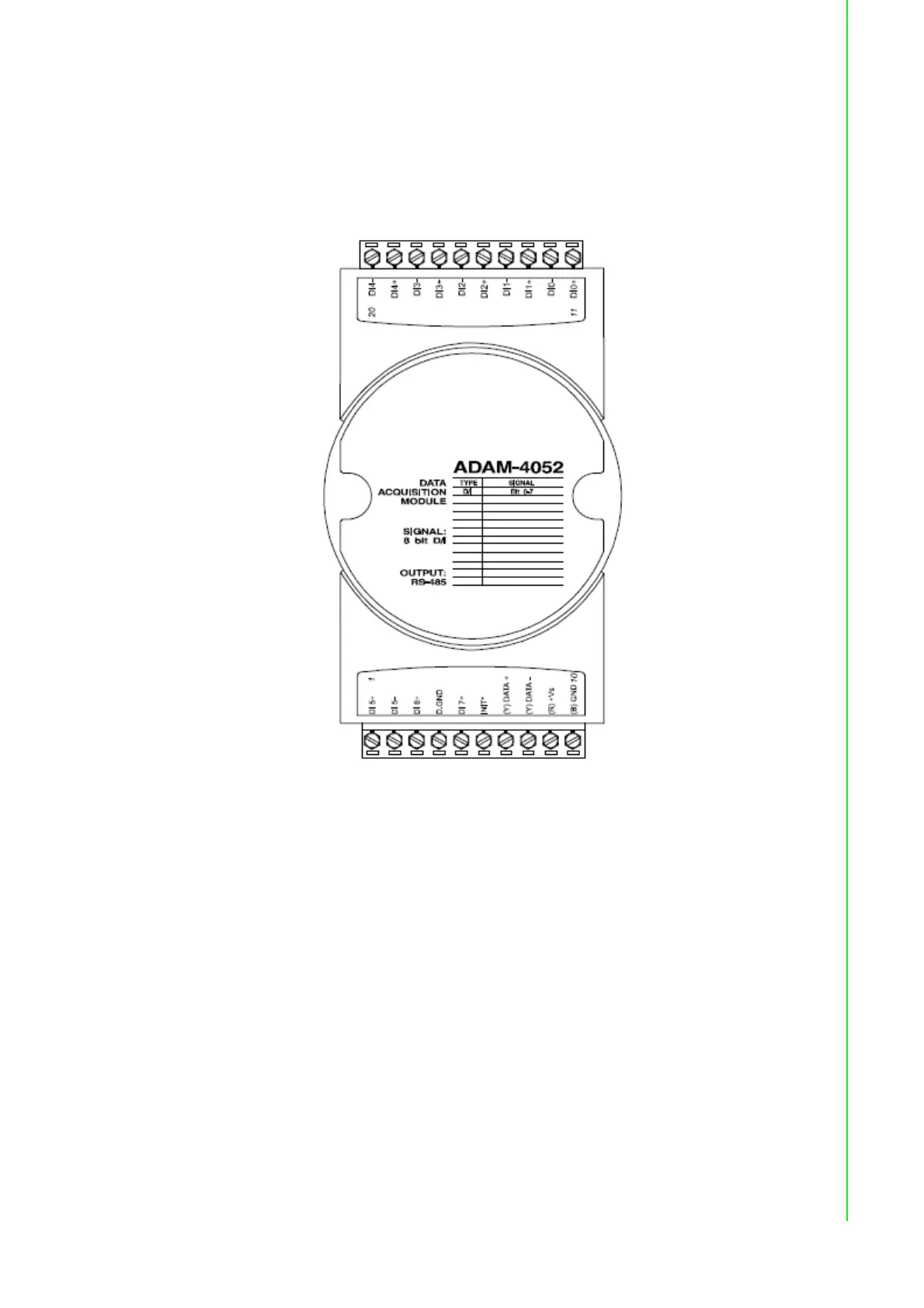

Figure 3.49 ADAM-4052 Isolated Digital Input Module
Channels: 8
- 6 differential channels (fully independent isolated channels)
- 2 single-ended channels (isolated channels with common ground)
Digital Input:
- Logic level 0: +1 V max.
- Logic level 1: +3 ~ 30 V
