Benchmark 1500 - 2000 Boilers
APPENDIX G – PART LIST DRAWINGS
Page 162 of 182 AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 OMM-0097_0E
10/01/2015 Ph.: 800-526-0288 GF-142

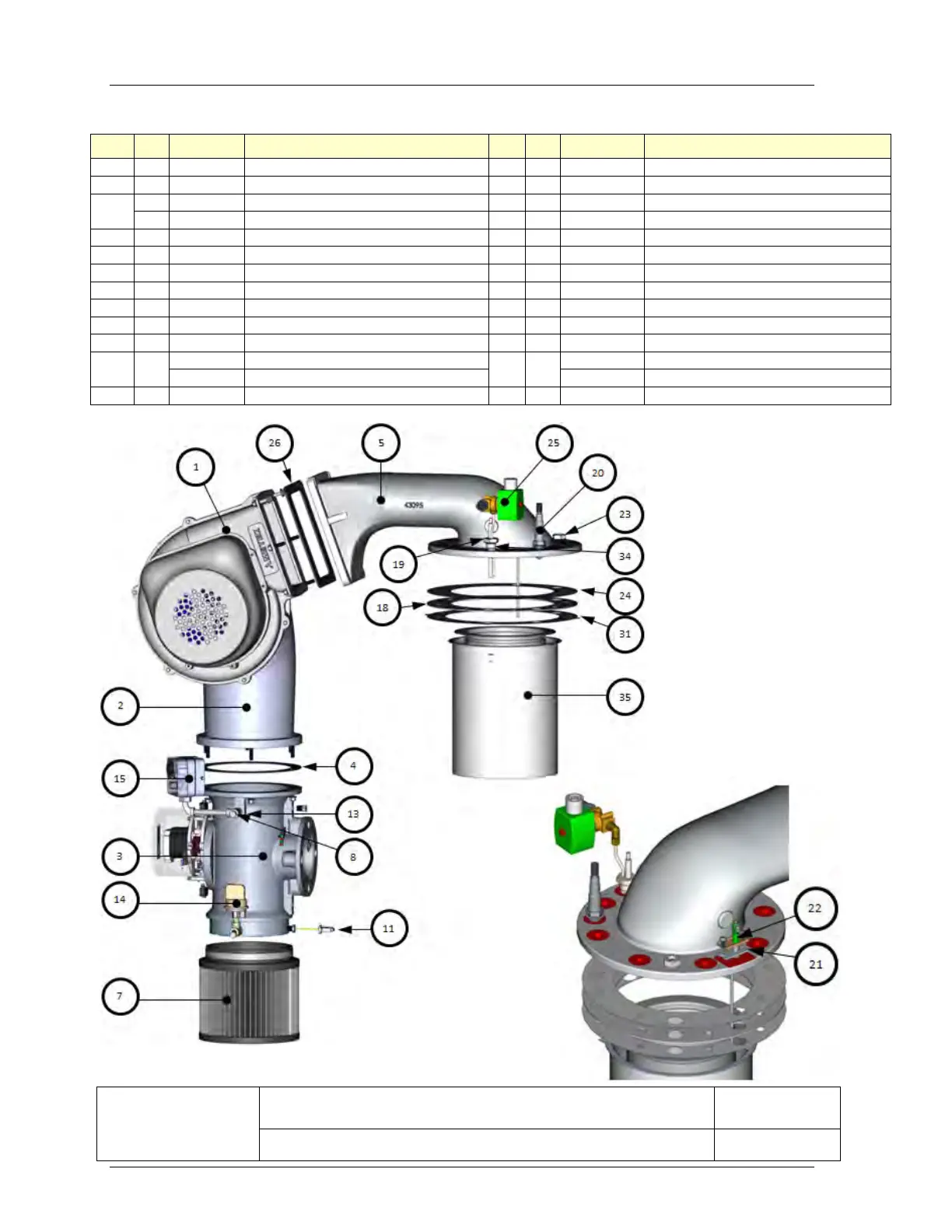

Benchmark 1500 – 2000 Burner Assembly – p/n 24378 rev E
Item
Qty
Part #
Description
Item
Qty
Part #
Description
1
1
69078
BLOWER: AMETEK 12.3"
18
1
81166
GASKET: BURNER
2
1
43090
AIR FUEL VALVE PLENUM
19
1
66026
IGNITOR-INJECTOR
3
1
24220-3
BURNER ASSY, BMK 1500, BMK 2000 DF
20
1
61026
O
2
SENSOR
1
24220-10
BURNER ASSY, BMK 2000
21
1
81048
FLAME DETECTOR GASKET
4
1
81057
GASKET: BLOWER
22
1
66034
FLAME DETECTOR
5
1
43095
BLOWER PLENUM
23
1
59104
OBSERVATION PORT
7
1
59138
FILTER: AIR 6"
24
1
81183
GASKET: RELEASE
8
5
9-21
PLUG: HEX HD 1/8 NPT
25
1
24277
STAGED IGNITION ASSY
11
1
61024
AIR INLET TEMPERATURE SENSOR
26
1
81184
GASKET: BLOWER
13
1
93230
SNUBBER
31
1
81186
LOWER RELEASE GASKET
14
1
61002-5
BLOCKED INLET SWITCH -8.0" W.C.
34
1
53033
WASHER: CLOCKING
15 1
60011-4
BMK 1500 BLOWER PROOF SWITCH ASSY
35 1
46042
BURNER, BMK 1500
60011-2
BMK 2000 BLOWER PROOF SWITCH ASSY
46044
BURNER, BMK 2000
16
1
81100
GASKET: BLOWER 12.3"
 Not shown in drawing
AERCO
International, Inc.
Blauvelt, NY 10913
Benchmark 1500 - 2000 Burner Assembly
01/15/2015
24378-TAB rev E
Sheet 1 of 1
