APPENDIX J – C-MORE CONTROL PANEL VIEWS
OMM-0097_0E AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 Page 179 of 182
GF-142 Ph.: 800-526-0288 10/01/2015
Appendix J: C-MORE CONTROL PANEL VIEWS

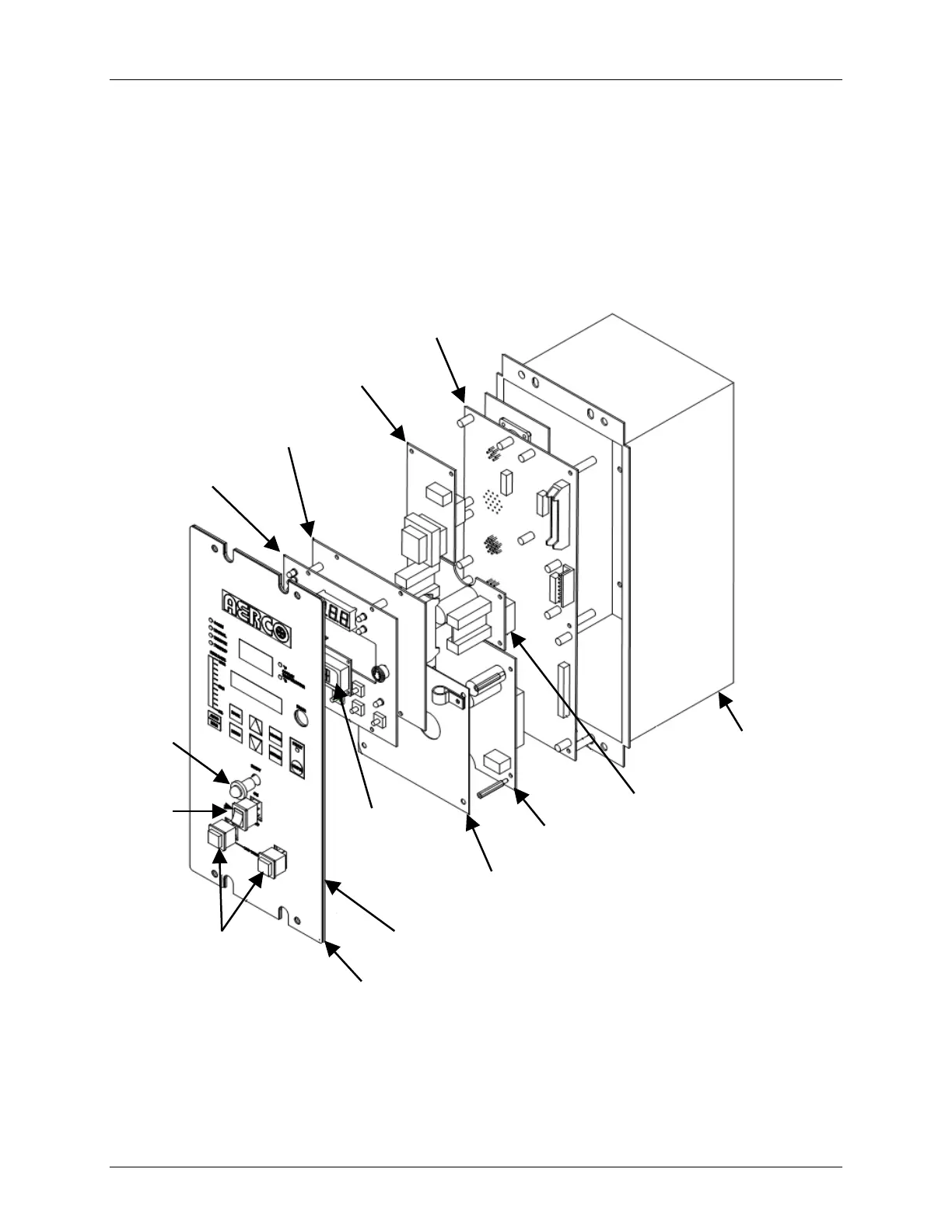

Figure J-1 – Benchmark Series Control Panel - Exploded View
ENCLOSURE
P/N 124951
POWER SUPPLY BOARD
P/N 124362
IGNITION STEPPER BOARD
P/N 124361
FISH PAPER INSULATOR
P/N 124960
V.F.D DISPLAY
MODULE
P/N 124527
FRONT FACE PLATE, BENCHMARK
P/N 124949
VERTICAL OVERLAY, BENCHMARK
P/N 124718
PUSH BUTTON
SWITCHES
P/N 124954
ROCKER
SWITCH
P/N 124947
GREEN LED
P/N 124948
DISPLAY BOARD
P/N 124365
PMC BOARD
P/N 124364
LOW WATER CUTOFF BOARD
P/N 124363
CONNECTOR BOARD
P/N 124366
