Benchmark 1500 - 2000 Boilers
CHAPTER 2 – INSTALLATION
OMM-0097_0E AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 Page 17 of 182
GF-142 Ph.: 800-526-0288 10/01/2015
WARNING!
Keep the unit area clear and free from all combustible materials and
flammable vapors or liquids
.
CAUTION
While packaged in the shipping container, the unit must be moved by pallet
jack or forklift from the FRONT ONLY.
FOR MASSACHUSSETTS ONLY:
For Massachusetts installations, the unit must be installed by a plumber or
gas-fitter licensed within the Commonwealth of Massachusetts. In addition,
the installation must comply with all requirements specified in Chapter 1
(Safety Precautions), pages 11 and 12.
2.4.2 Setting the Unit
The unit must be installed on a 4 to 8 inch (10 to 20 cm) thick housekeeping pad to ensure
proper condensate drainage. If anchoring the unit, refer to Figure 2-1b for anchor locations.

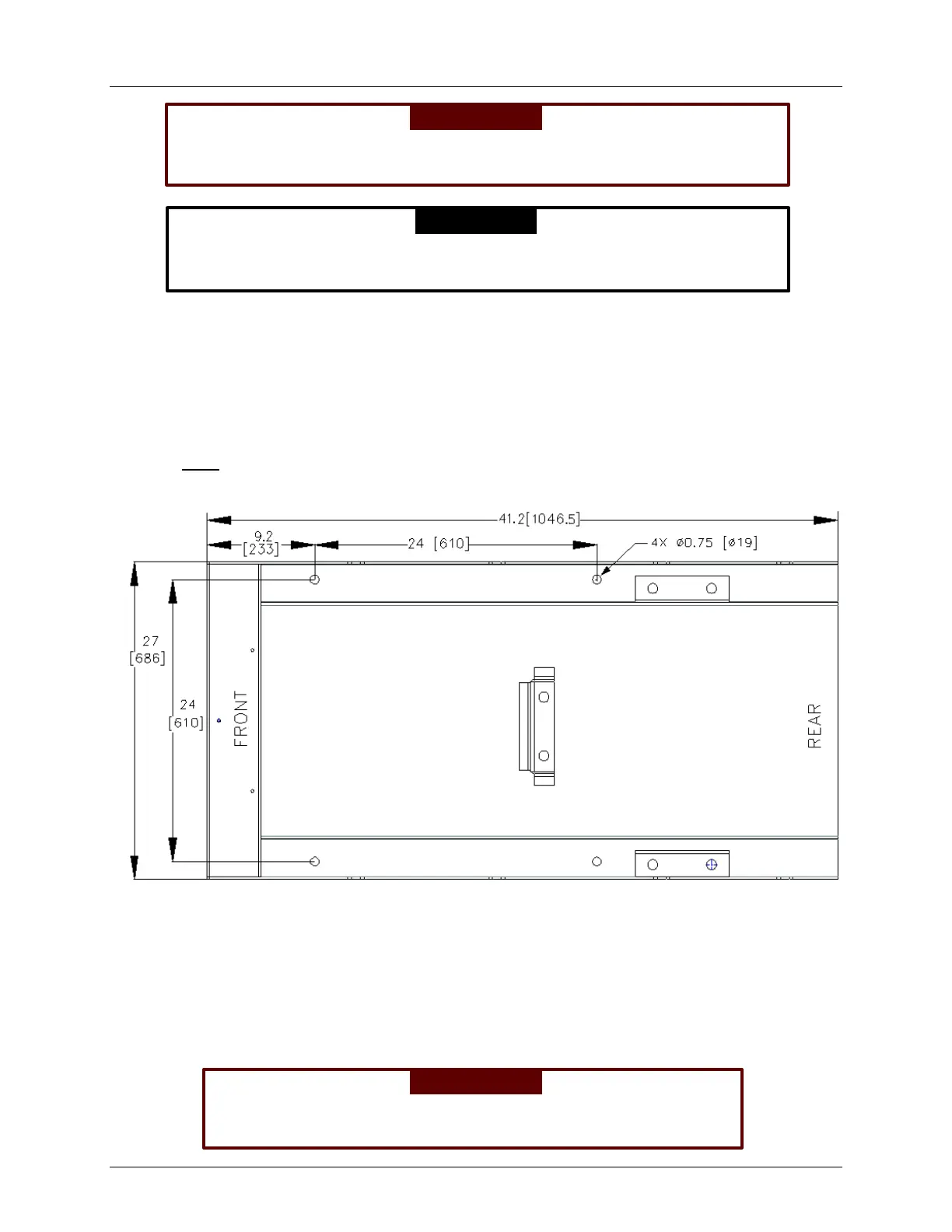

Figure 2-1b: Benchmark 1500/2000 Anchor Bolt Locations
A total of 3 lifting lugs are provided at the top of the primary heat exchanger as shown in Figure
2-2. Remove the front top panel from the unit to provide access to the lifting tabs.
Remove the four (4) lag screws securing the unit to the shipping skid. Lift the unit off the
shipping skid and position it on the 4 to 8 inch (10 to 20 cm) concrete housekeeping pad
(required) in the desired location.
WARNING!
When lifting or moving the boiler, DO NOT attempt to manipulate
the boiler using the gas train or blower.
