If a floor drain is not available, a condensate pump can be used to remove the condensate to
drain. The maximum condensate flow rate is 30 gallons (113 liters) per hour. The
condensate drain trap, associated fittings and drain line must be removable for routine
maintenance.
WARNING!
Use PVC, stainless steel, aluminum or polypropylene for condensate
drain piping (Figure 2-6). Do NOT use carbon or copper components.

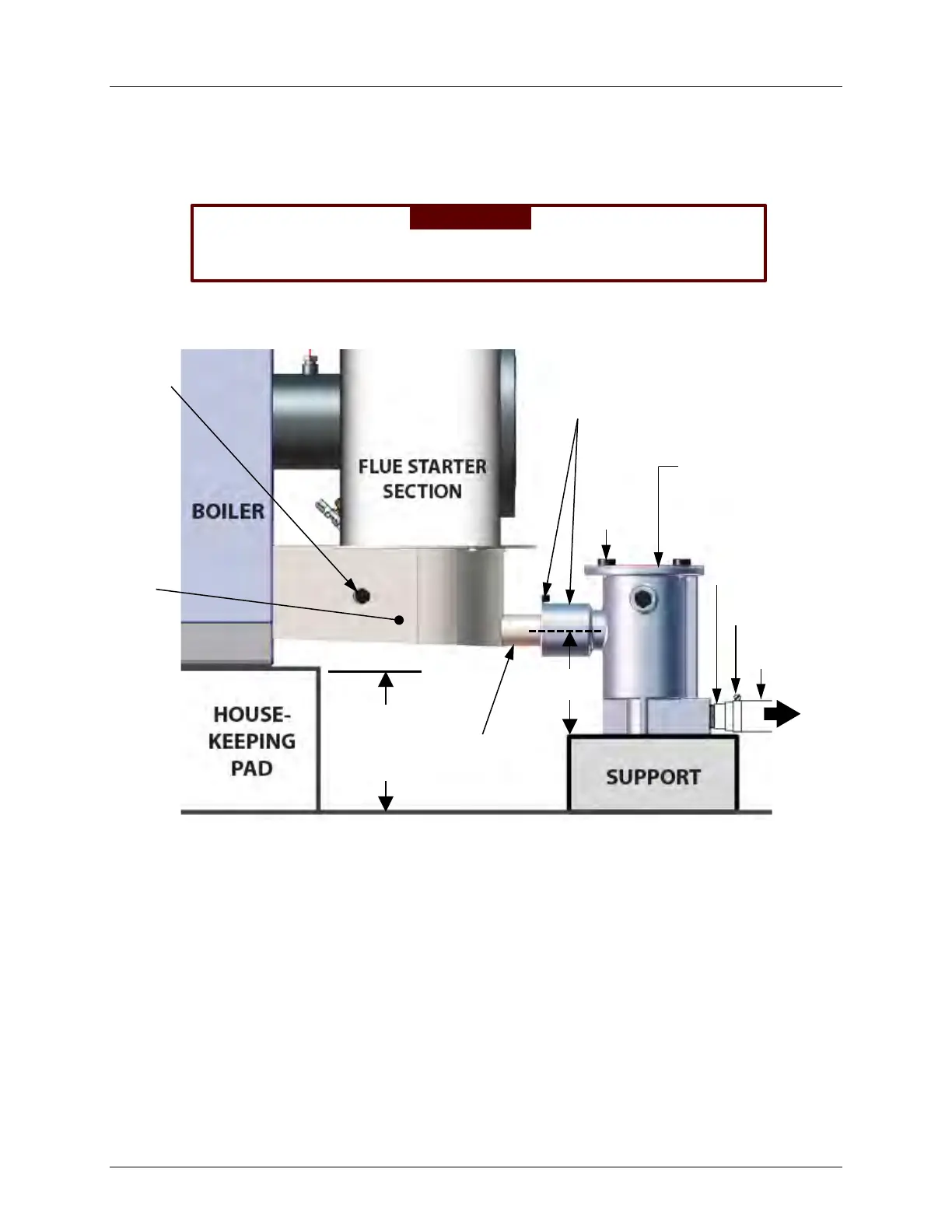

Figure 2-6: Sample Condensate Trap Installation (Right Side View)
EXHAUST
MANIFOLD
DRAIN PORT
COMBUTION
ANALYZER
PROBE PORT
EXHAUST
MANIFOLD
3/4” NPT
NIPPLES
HOSE
CLAMP
T O
FLOOR
DRAIN
CONDENSATE
TRAP (P/N 24441)
TRAP INLET
INTEGRAL
ADAPTOR AND
THUMBSCREW
TOP
COVER
THUMB
SREWS
(4 ea.)
1” (2.54cm)
DIAM.
NOTE
HOUSKEEPING
PAD MUST NOT
EXTEND
UNDER THE
CONDENSATE
ASSEMBLY.
4-8”
(10-20 cm)
THICK
4” (10cm)
