Water Temperature Fault Test – Continued
7. Reset the adjustable Over-Temperature switch to its original setting.
8. The unit should start once the adjustable Temperature Limit switch setting is above the
actual outlet water temperature.

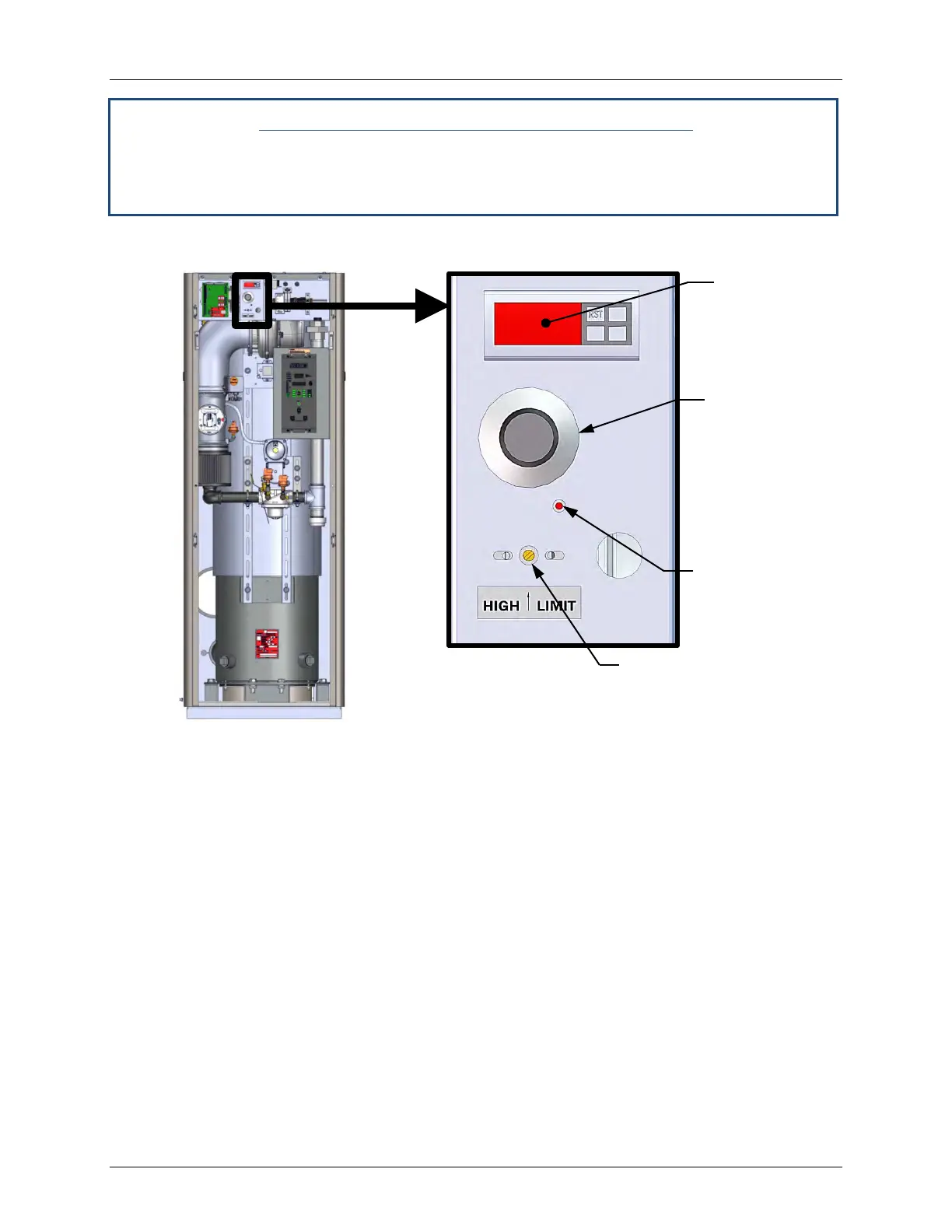

Figure 6-2: Temperature Limit Switch Location
ADJUSTABLE
TEMPERATURE
LIMIT SWITCH
MANUAL
SWITCH
RESET
BUTTON
OVER
TEMPERATURE
LIMIT DIGITAL
CONTROLLER
MANUAL
TEMPERATURE
LIMIT SWITCH
