Laying Cables and Connecting Wires

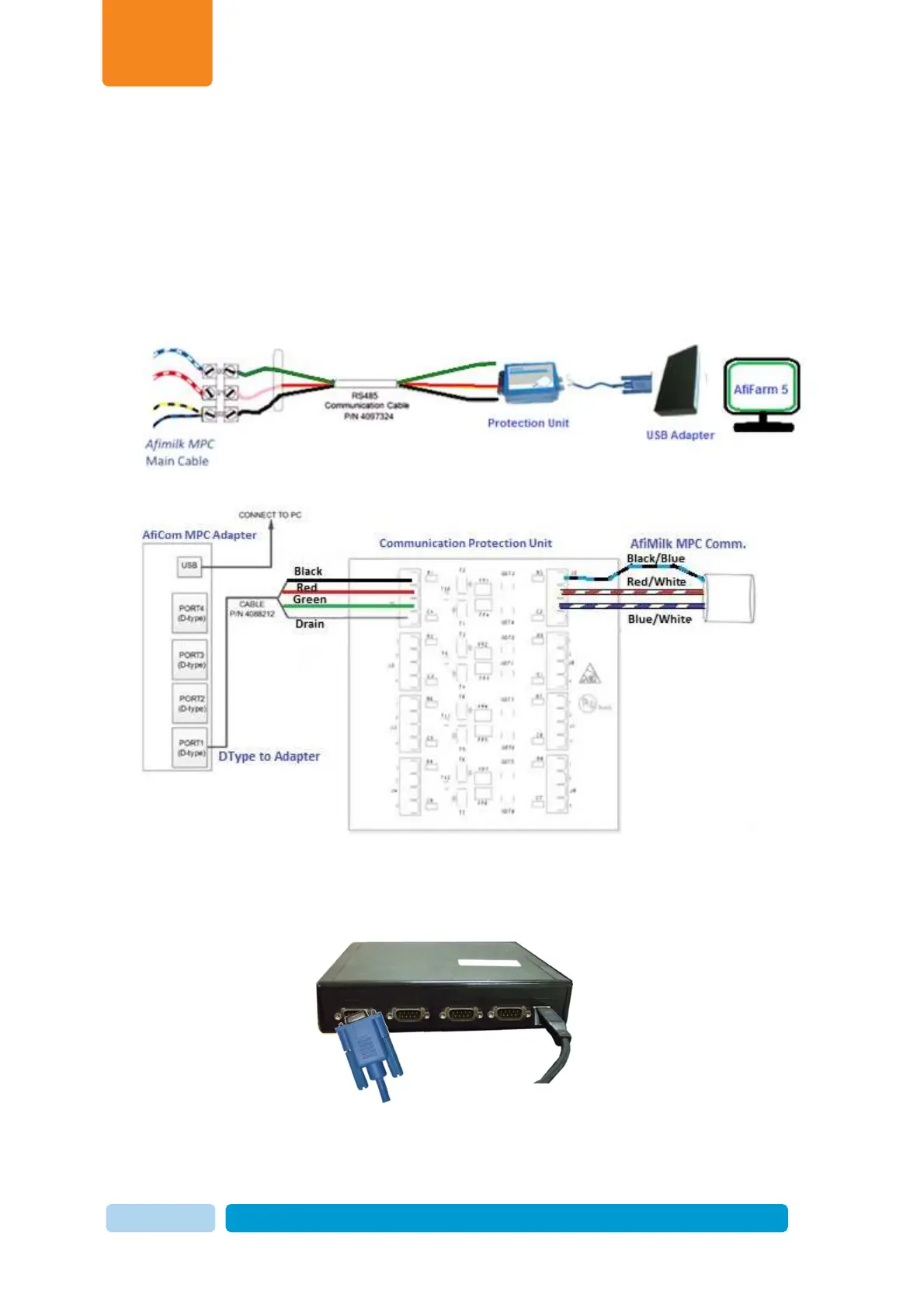

To connect AfiMilk MPC to AfiFarm 5 via the AfiCom USB adapter use the protection unit
to buffer between the communication line and the Adapter:
MPC RS485 Blue/White wire to Adapter connector Red wire
MPC RS485 Red/White wire to Adapter connector Green wire
Optional: connect the Communication-cable Drain
Protection Unit Connections
Connect the communication-cable to the 1 OR 4 Port AfiCom USB Serial Adapter.
