Maintenance
104 Agilent 55B AA Spectrometer User’s Guide
9 Carefully push the broken portion of the Impact bead out from the Impact
bead adjustment block.

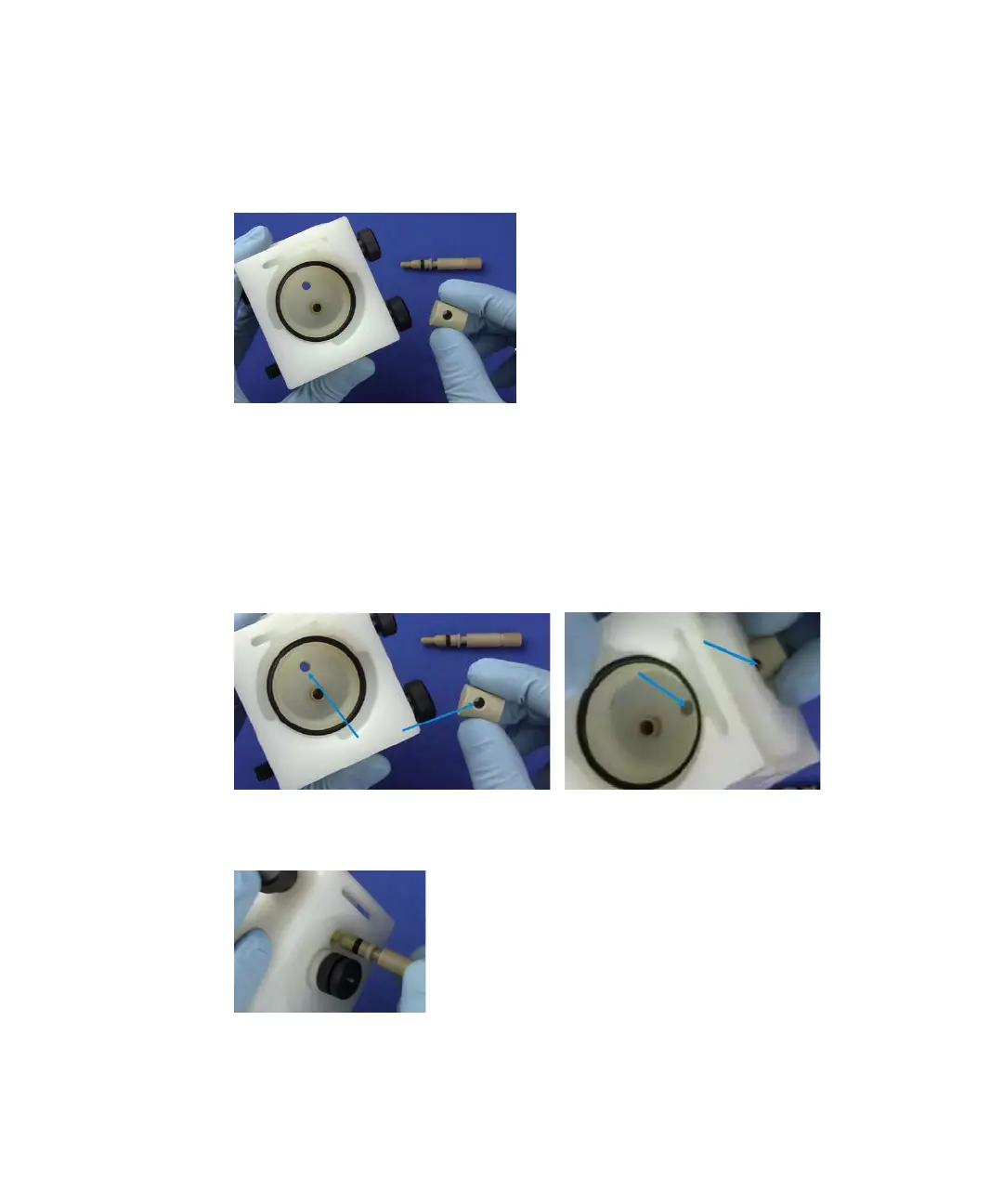

Figure 58. Impact adjustment block removed from the nebulizer block
Replace the impact bead
1 Insert the Impact bead adjustment block into the bottom of the nebulizer
block.
Ensure the hole in the Impact bead adjustment block is aligned with the
opening in the nebulizer block. This enables the assembly of the Impact bead
adjustment screw.
Figure 59. Align holes to enable assembly with the Impact bead adjustment screw
2 Replace the Impact bead adjustment screw by gently pushing past the O-ring.
Figure 60. Insert the impact bead adjustment screw
