1Introduction

28 5975/5977 Series MSD Operating Manual

6 Repeat steps 3 through 5 for the other fuse. Always replace both fuses.

7 Reconnect the MSD power cord to the electrical outlet.

8 Pumpdown the MSD.

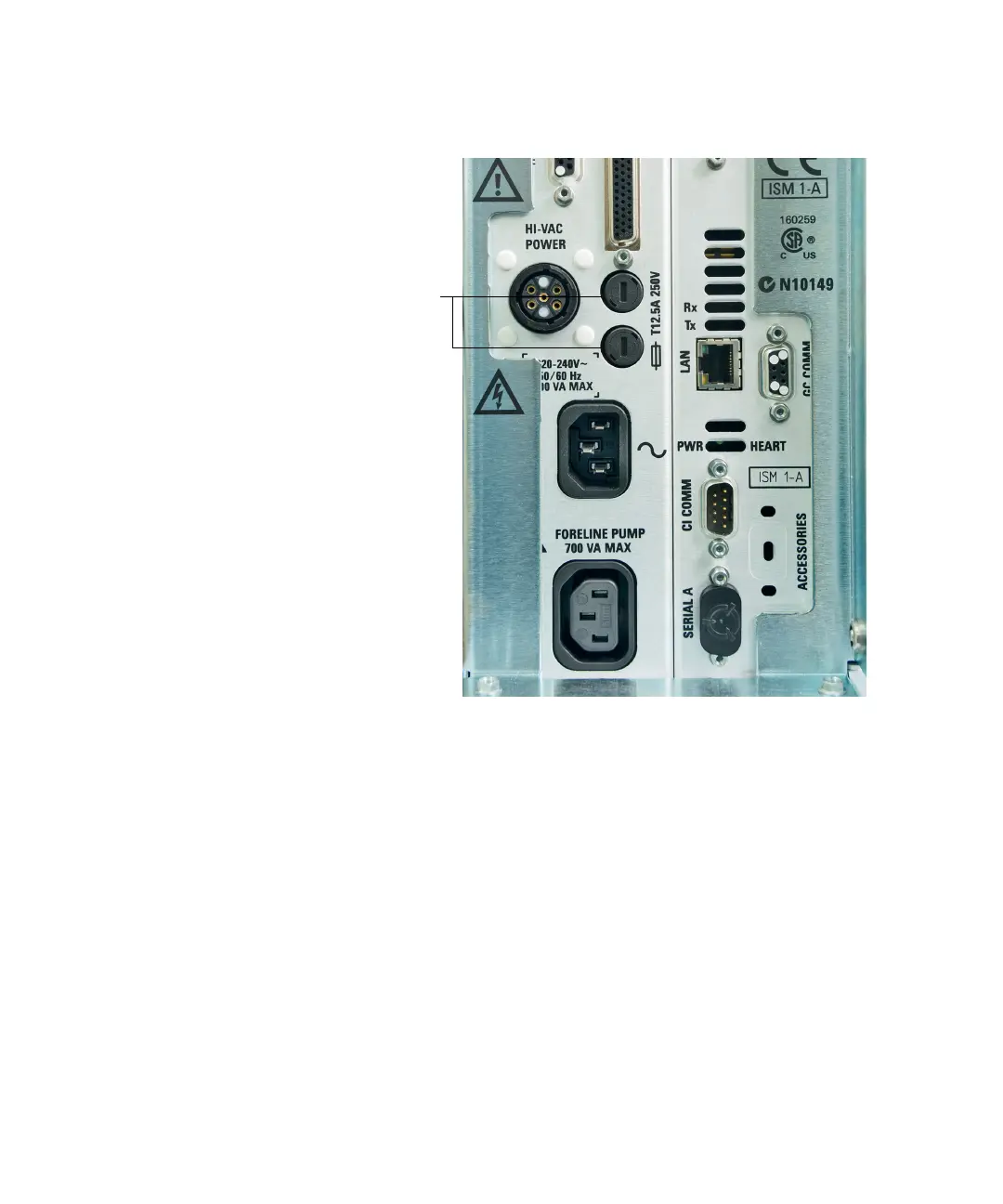

Figure 2. Primary fuses

Primary fuses in holders
