4 Basic Operation
Viewing the system logbook for events and errors
Agilent 6475 Triple Quad LC/MS System User Guide 51
Viewing the system logbook for events and errors
As you prepare the instrument, you may run into an error that you want to
troubleshoot. You do this through the System Logbook Viewer.
• Click Log in the toolbar of the Data Acquisition window, and view the logged
events.
• Or click Tools > System Logbook Viewer.
• Or right-click Log in the system taskbar. First, click Enable Notification. Then,
right-click LOG and select Configure. The system can notify you of new errors
and warning by showing messages from the taskbar.

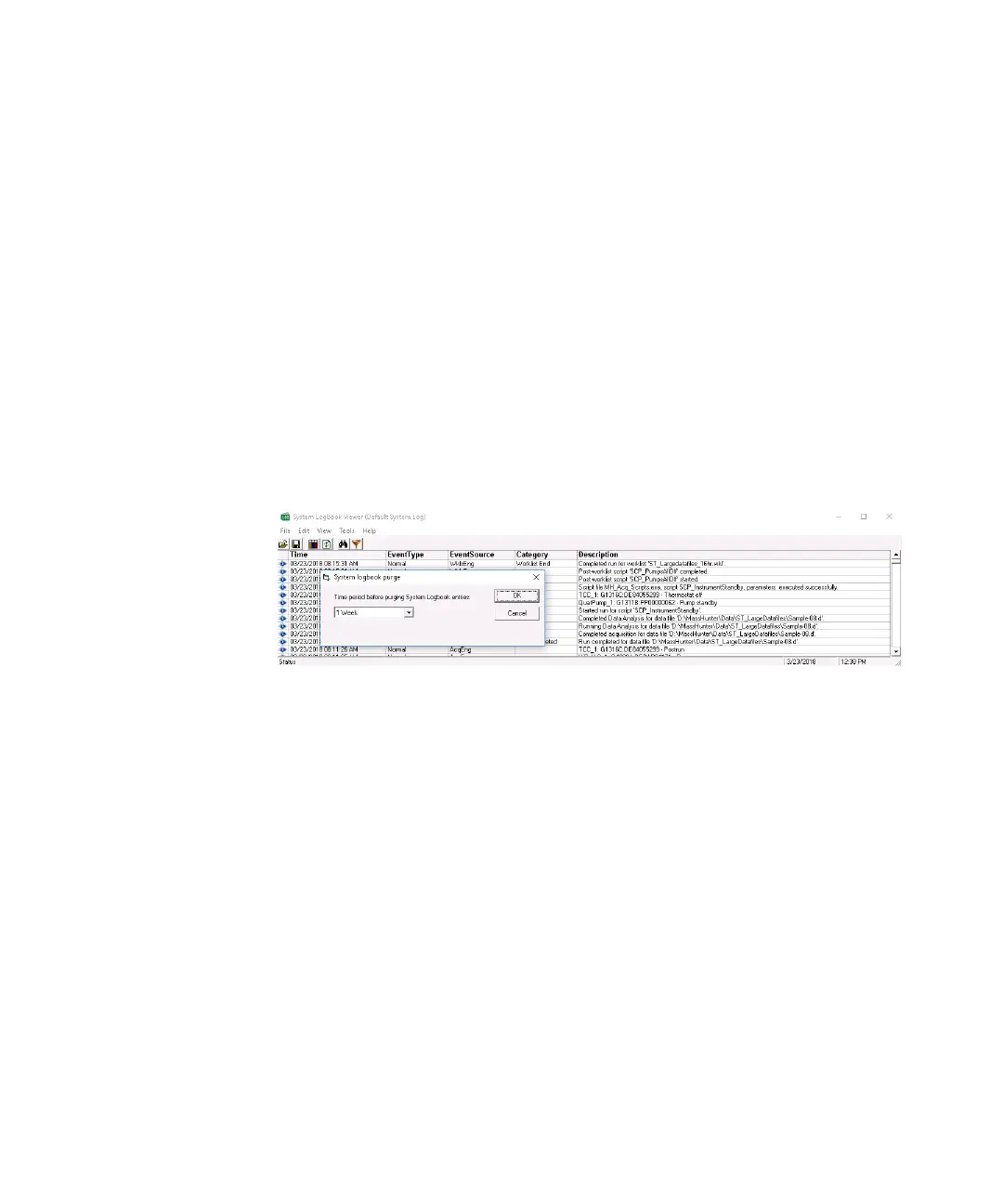

When the System Logbook Viewer is open, you can select the time period to keep
System Logbook entries. You can set the value from 1 week to 1 year. To do this,
you click Tools > Purge Settings. The System logbook purge dialog box opens.
