5 Operating the 7693A Automatic Sampler
Placing Vials in the 7693A ALS
Two turrets are provided with the G4513A injector
(Figure 1). The 16- sample standalone turret, and the
3- sample transfer turret.
The labeled positions are defined in Table 1 and Table 2.

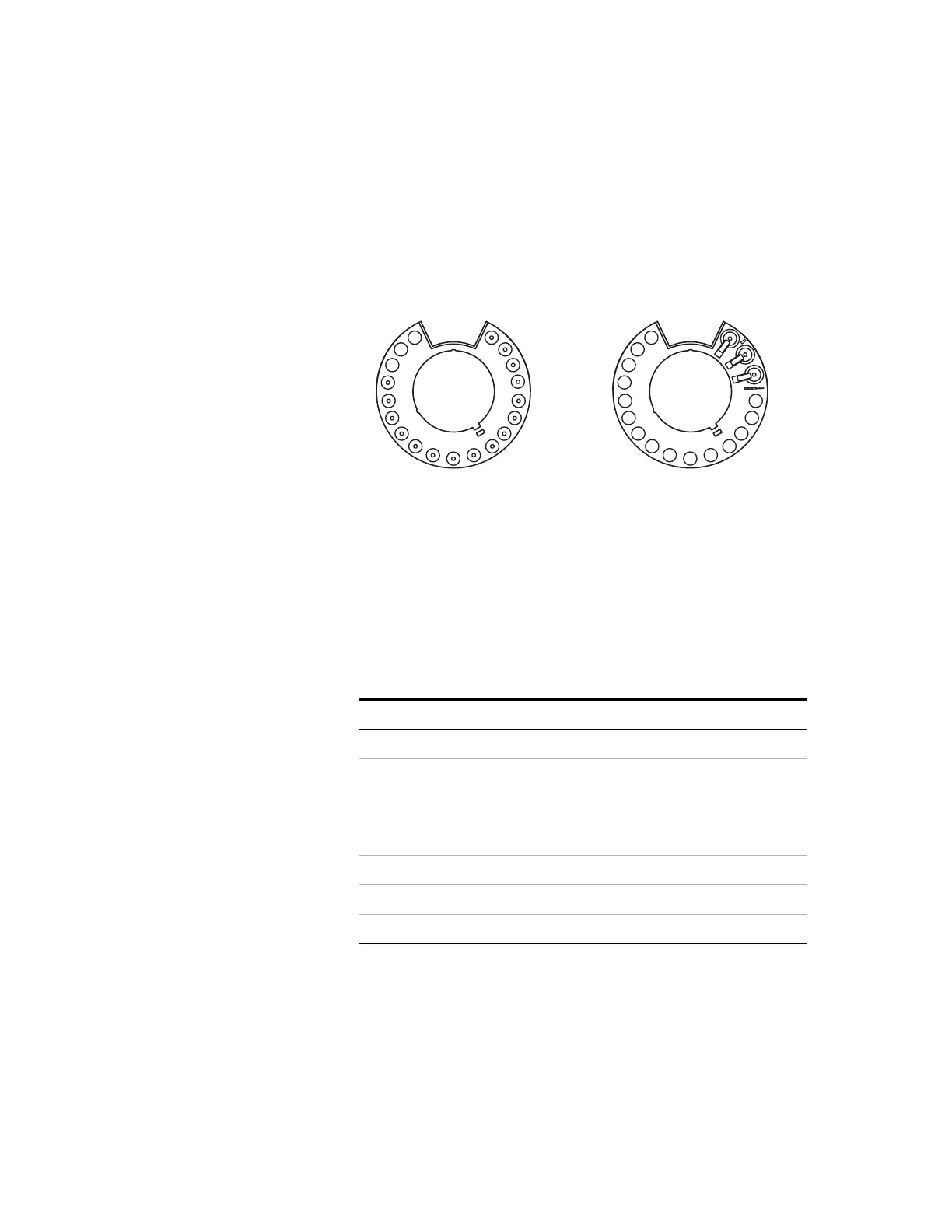

Figure 1 Injector turrets
Tab le 1 Standalone turret labels
Position Label Bottle/Vial
1 through 14 1 through 14 Sample vials
15 15
L2
Sample vial
Layer 2 bottle
16 16
L3
Sample vial
Layer 3 bottle
17 W Waste bottle
18 B Solvent B bottle
19 A Solvent A bottle
A
B
16
3
1
5
7
9
12
14
W
15
13
11
10
8
6
4
2
A
A2
A4
L3
L1
WB
WA
WA
B2
A6
A3
A5
B
B3
B4
WA
WB
L2
L3
L2
Transfer turret
(3 samples)
Standalone turret
(16 samples)
Top views.
