66 Operating Guide
6 Operating the 7683 Automatic Sampler
7683 ALS Turret Types
The injector comes with two turrets, a standard 1- sample
transfer turret for use with or without a tray, and an
8-sample turret to be used without a tray.
The labeled positions are defined in Table 4 and Table 3.
Tab le 3 The 8-sample vial turret
Name Position Description
1 through 8 1 through 8 Sample vials
WA 9 Waste bottle
B10Solvent bottle B
A11Solvent bottle A
Tab le 4 The 1-sample vial transfer turret
Name Position Description
SAMPLE 1 Sample vial transfer position
WB 2 and 3 Waste bottle B
WA 4 and 5 Waste bottle A
B3 6 Solvent bottle B3
B2 7 Solvent bottle B2
B 8 Solvent bottle B
A3 9 Solvent bottle A3
A2 10 Solvent bottle A2
A 11 Solvent bottle A

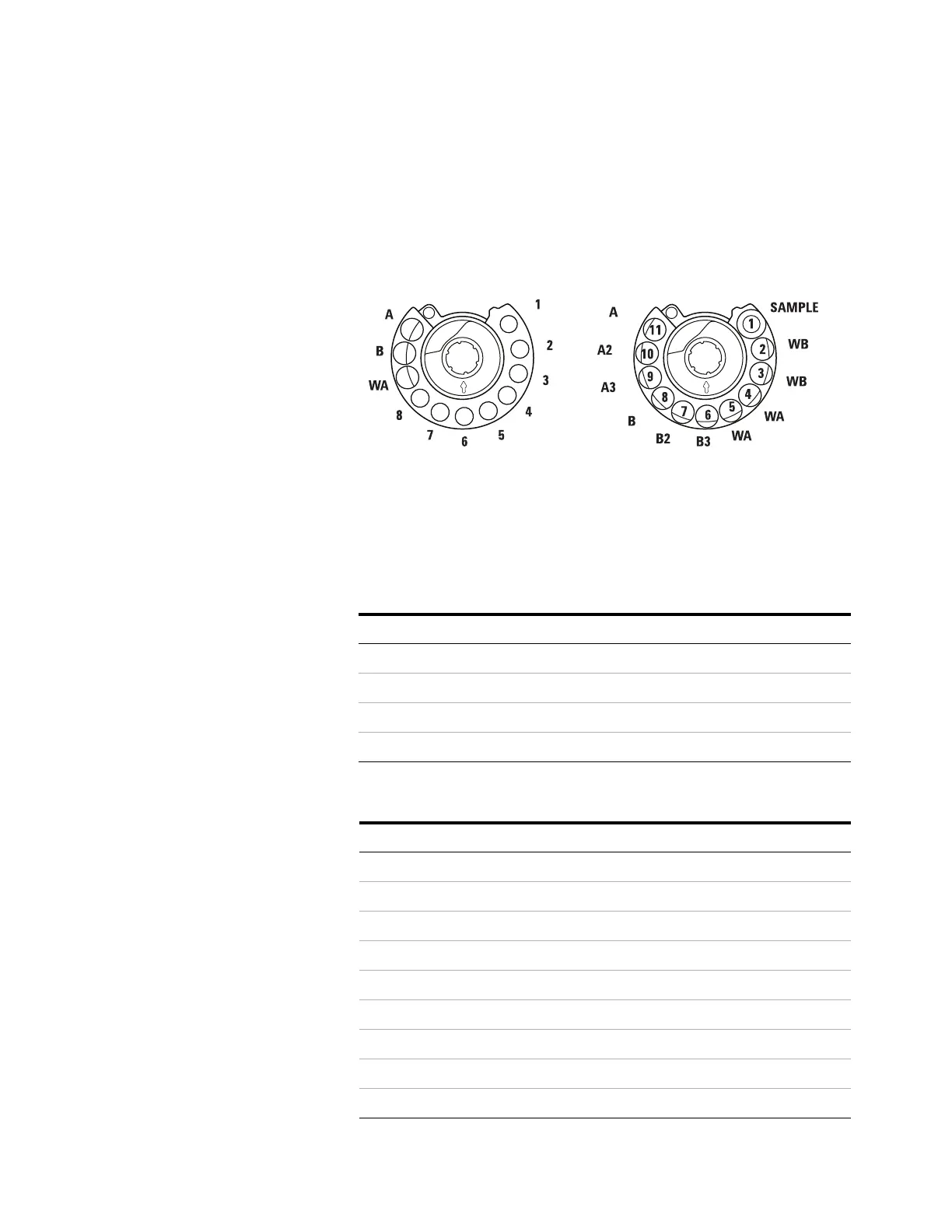

Hi-density turret
(8-samples)
Transfer turret
(1-sample)
Top views. Labels are on sides.
