To Move the 7693A ALS to the Other GC Inlet
1 When no runs are scheduled, lift the injector tower off
the mounting post.
2 If a tray is installed, disconnect the communications cable
from the injector tower.
3 Set the injector tower aside. (Place on a parking post or
lay it flat on its back.)
4 Remove the mounting post from the inlet cover. Install it
at the other location. The post must be tightened
completely.
5 If a sample tray is installed, route the front injector cable
through the mounting bracket support structure. If
installing a back injector, make sure the cable is available.
CAUTION
Use a flathead screwdriver that snugly fits the slot in the top of the
mounting post. An undersized blade can damage the post top and
prevent the injector from mounting properly.

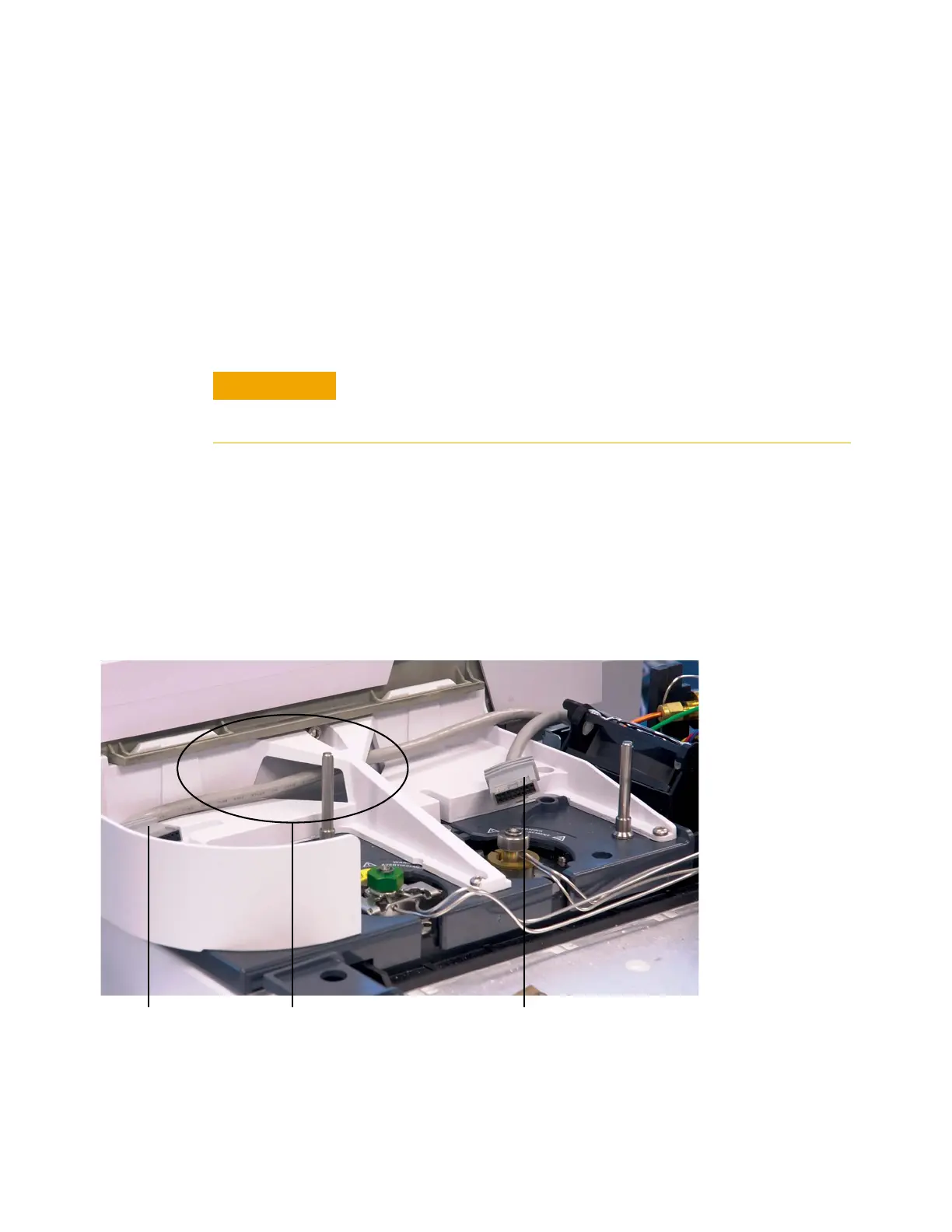

Figure 8 Front injector cable routed through mounting bracket support.
Front injector cable routed through
mounting bracket support
Back injector cableFront injector cable
