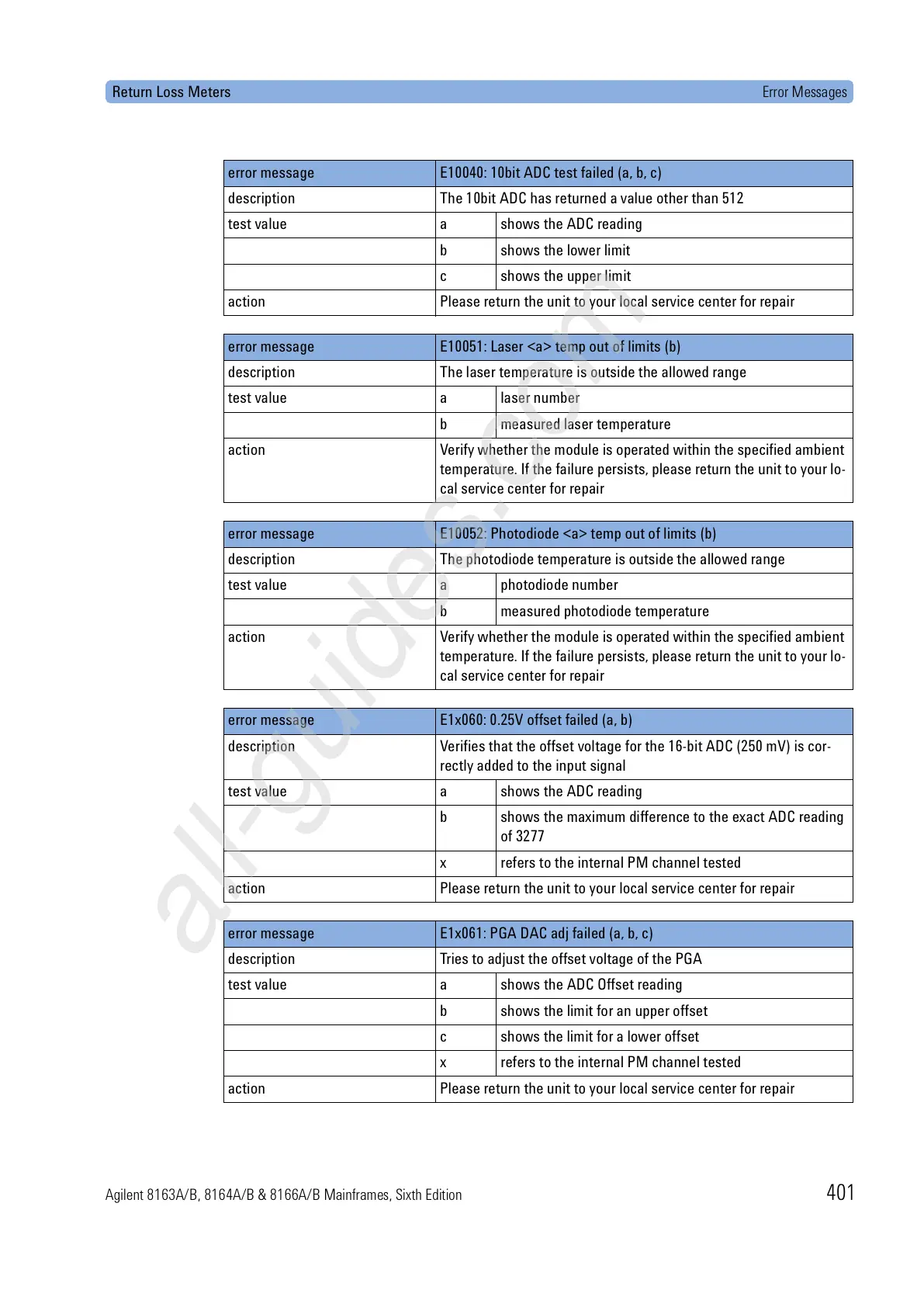

error message E10040: 10bit ADC test failed (a, b, c)
description The 10bit ADC has returned a value other than 512
test value a shows the ADC reading
b shows the lower limit
c shows the upper limit
action Please return the unit to your local service center for repair
error message E10051: Laser <a> temp out of limits (b)
description The laser temperature is outside the allowed range
test value a laser number
b measured laser temperature
action Verify whether the module is operated within the specified ambient
temperature. If the failure persists, please return the unit to your lo-
cal service center for repair
error message E10052: Photodiode <a> temp out of limits (b)
description The photodiode temperature is outside the allowed range
test value a photodiode number
b measured photodiode temperature
action Verify whether the module is operated within the specified ambient
temperature. If the failure persists, please return the unit to your lo-
cal service center for repair
error message E1x060: 0.25V offset failed (a, b)
description Verifies that the offset voltage for the 16-bit ADC (250 mV) is cor-
rectly added to the input signal
test value a shows the ADC reading
b shows the maximum difference to the exact ADC reading
of 3277
x refers to the internal PM channel tested
action Please return the unit to your local service center for repair
error message E1x061: PGA DAC adj failed (a, b, c)
description Tries to adjust the offset voltage of the PGA
test value a shows the ADC Offset reading
b shows the limit for an upper offset
c shows the limit for a lower offset
x refers to the internal PM channel tested
action Please return the unit to your local service center for repair
