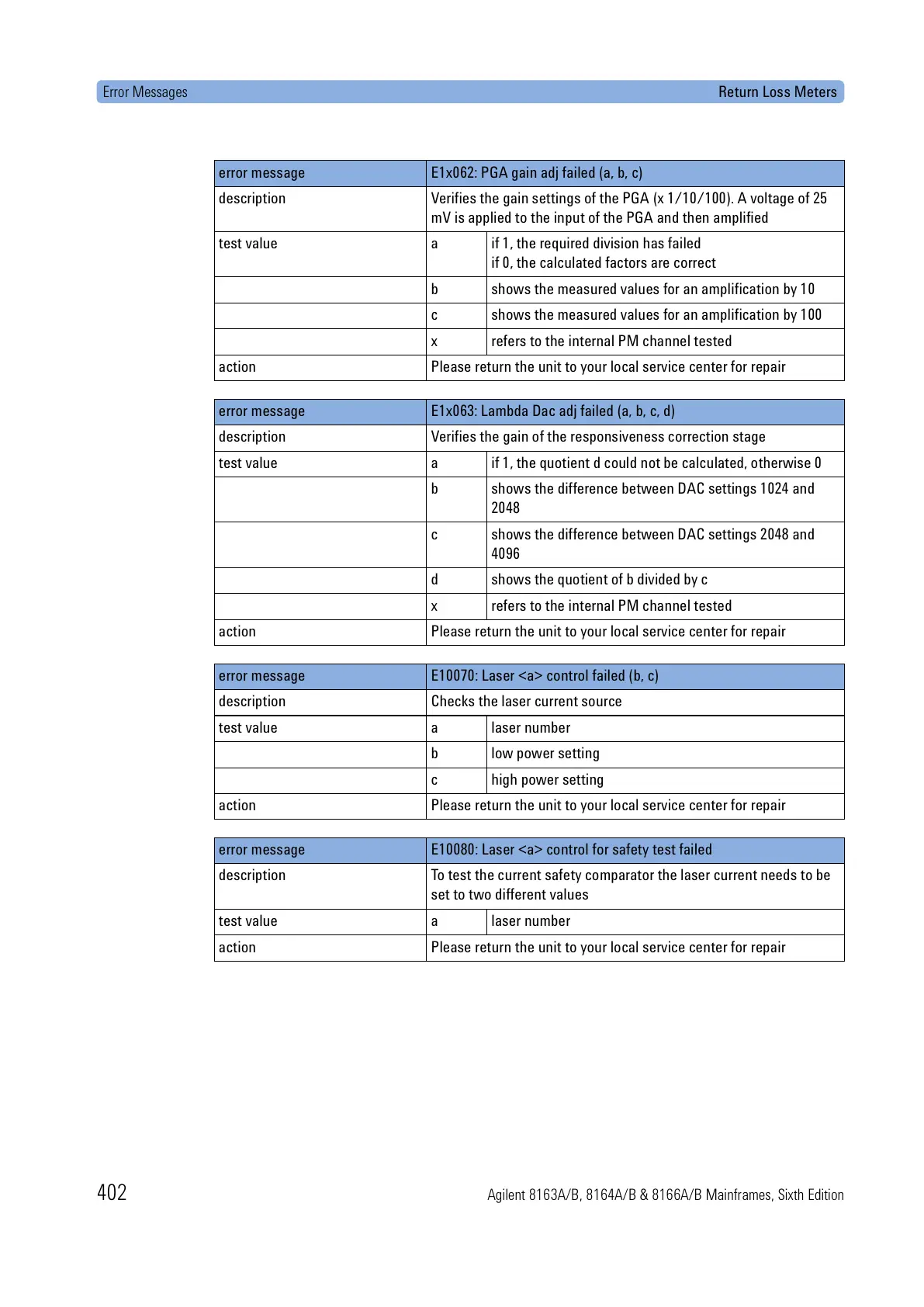

Error Messages Return Loss Meters
402 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition
error message E1x062: PGA gain adj failed (a, b, c)
description Verifies the gain settings of the PGA (x 1/10/100). A voltage of 25
mV is applied to the input of the PGA and then amplified
test value a if 1, the required division has failed
if 0, the calculated factors are correct
b shows the measured values for an amplification by 10
c shows the measured values for an amplification by 100
x refers to the internal PM channel tested
action Please return the unit to your local service center for repair
error message E1x063: Lambda Dac adj failed (a, b, c, d)
description Verifies the gain of the responsiveness correction stage
test value a if 1, the quotient d could not be calculated, otherwise 0
b shows the difference between DAC settings 1024 and
2048
c shows the difference between DAC settings 2048 and
4096
d shows the quotient of b divided by c
x refers to the internal PM channel tested
action Please return the unit to your local service center for repair
error message E10070: Laser <a> control failed (b, c)
description Checks the laser current source
test value a laser number
b low power setting
c high power setting
action Please return the unit to your local service center for repair
error message E10080: Laser <a> control for safety test failed
description To test the current safety comparator the laser current needs to be
set to two different values
test value a laser number
action Please return the unit to your local service center for repair
