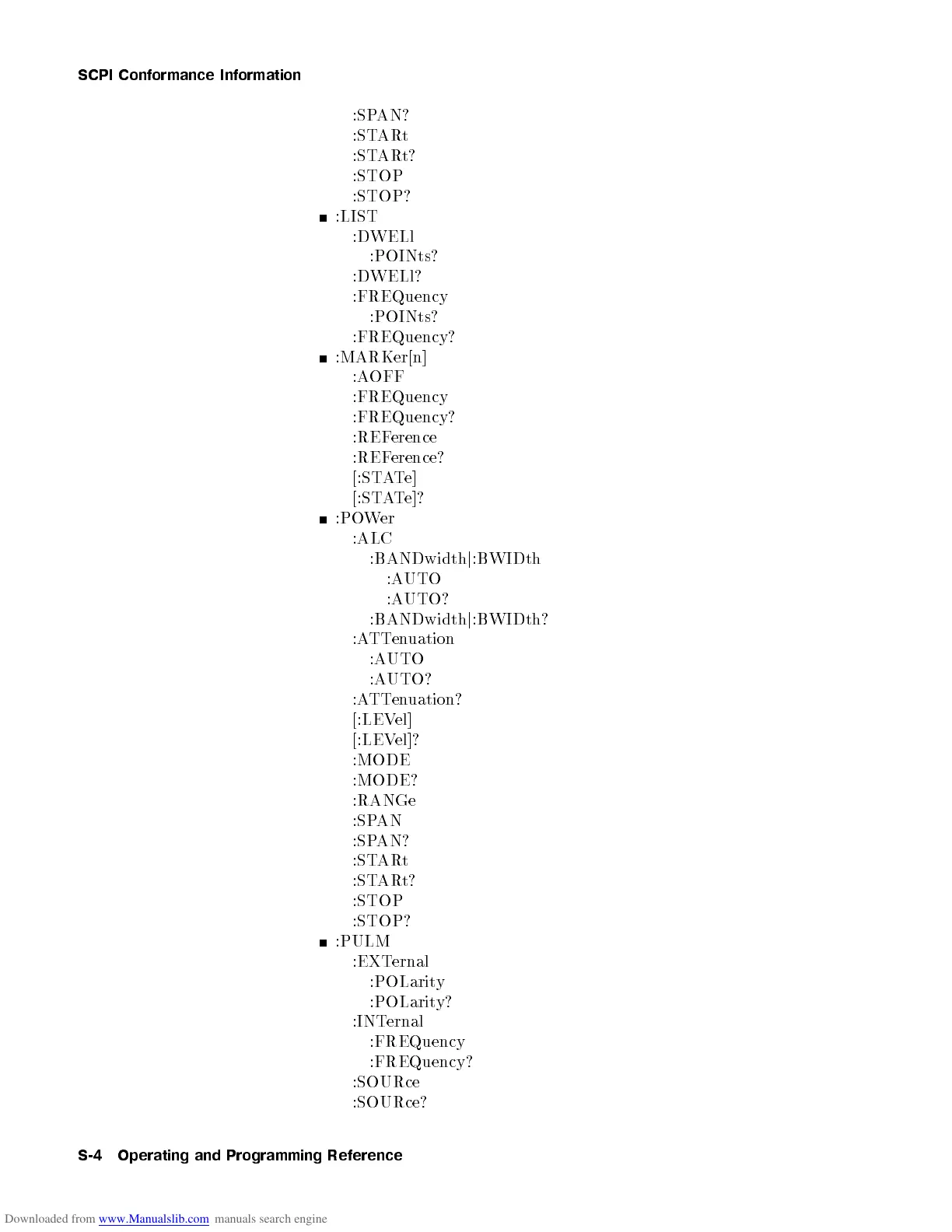

SCPI Conformance Information

:SPAN?

:STARt

:STARt?

:STOP

:STOP?

:LIST

:DWELl

:POINts?

:DWELl?

:FREQuency

:POINts?

:FREQuency?

:MARKer[n]

:AOFF

:FREQuency

:FREQuency?

:REFerence

:REFerence?

[:STATe]

[:STATe]?

:POWer

:ALC

:BANDwidth

:BWIDth

:AUTO

:AUTO?

:BANDwidth

:BWIDth?

:ATTenuation

:AUTO

:AUTO?

:ATTenuation?

[:LEVel]

[:LEVel]?

:MODE

:MODE?

:RANGe

:SPAN

:SPAN?

:STARt

:STARt?

:STOP

:STOP?

:PULM

:EXTernal

:POLarity

:POLarity?

:INTernal

:FREQuency

:FREQuency?

:SOURce

:SOURce?
